Raymarine CAM210 Day and Night IP Bullet Camera, Full HD, PoE, 12V DC, 20m IR

Overview

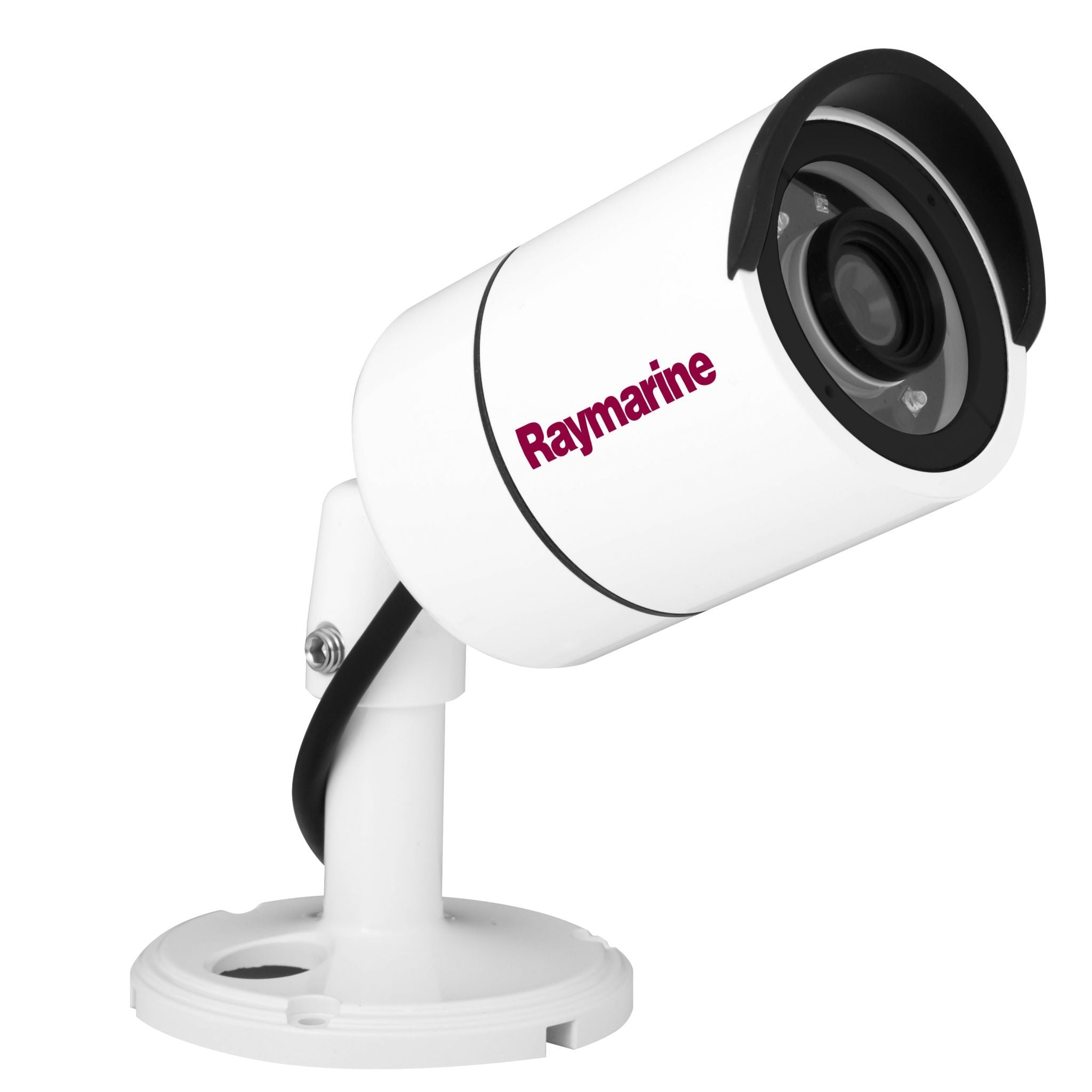

The Raymarine E70346 is the CAM210 Day and Night IP Bullet Camera, a high-definition network camera for above-deck monitoring on Raymarine-equipped boats. It uses a 2.0 megapixel 1/2.8 inch Sony CMOS image sensor and supports video up to 1920 x 1080, giving the helm a clear view of blind spots, decks, cockpit areas, or traffic around the vessel through a compatible Raymarine display.

The camera works in daylight and low light, with built-in infrared emitters rated for near-field visibility up to 66 ft (20 m). Its IPX6 and IPX7 enclosure suits exposed marine mounting locations where spray, washdowns, rain, and vibration are part of normal use.

Power can be supplied through a direct 12 V DC connection with a 10.8 to 13.2 V DC operating range, or through 802.3af Power over Ethernet for a cleaner single-cable network installation. The CAM210 also supports Raymarine ClearCruise augmented reality when paired with the optional AR200 sensor, allowing navigation data such as waypoints, AIS targets, and navaids to be overlaid on the camera view.

Key features

• Full HD video support up to 1920 x 1080 for monitoring deck areas, approaches, and blind spots from the helm.
• 2.0 megapixel Sony CMOS sensor for day and night operation on Raymarine network video systems.
• Built-in infrared emitters give visibility up to 66 ft (20 m) in near-field low-light conditions.
• IPX6 and IPX7 enclosure for above-deck installation where the camera may see spray, rain, and washdowns.
• Power options include direct 12 V DC input or 802.3af PoE, which helps reduce cabling on networked installations.
• Works with Raymarine Axiom chartplotters and compatible Raymarine MFD systems for onboard video viewing.
• Integrated sun cover helps reduce glare when mounted in exposed cockpit, flybridge, deck, or hardtop locations.
• Supports H.264 and MJPEG video streaming, with password protection and HTTPS encryption for network access.

Installation and setup

The CAM210 is a bullet-style camera with an adjustable mount and a compact footprint, making it practical for hardtops, arches, pilothouse corners, aft decks, and other above-deck positions where a fixed viewing angle is useful. Its base diameter is 89.9 mm, overall height is 213.6 mm, and unboxed weight is 0.7 kg.

For electrical planning, the camera draws 5.3 W and is rated at 1.5 A on 12 V DC. PoE installations use an 802.3af Class 2 connection, which can simplify routing when the network cable and power feed are handled through the same run.

Compatibility and use on board

This camera fits boats that already use Raymarine Axiom or compatible Raymarine MFDs and need a fixed-view camera for docking awareness, cockpit observation, deck monitoring, or added situational awareness underway. It is also useful on larger center consoles, sportfishing boats, cruisers, and pilothouse vessels where the skipper cannot see every working area from the helm.

When used with ClearCruise augmented reality and the optional AR200 sensor, the camera can become part of a navigation-focused video setup rather than only a surveillance view. That makes it especially useful for owners who want camera monitoring tied into their Raymarine helm electronics.

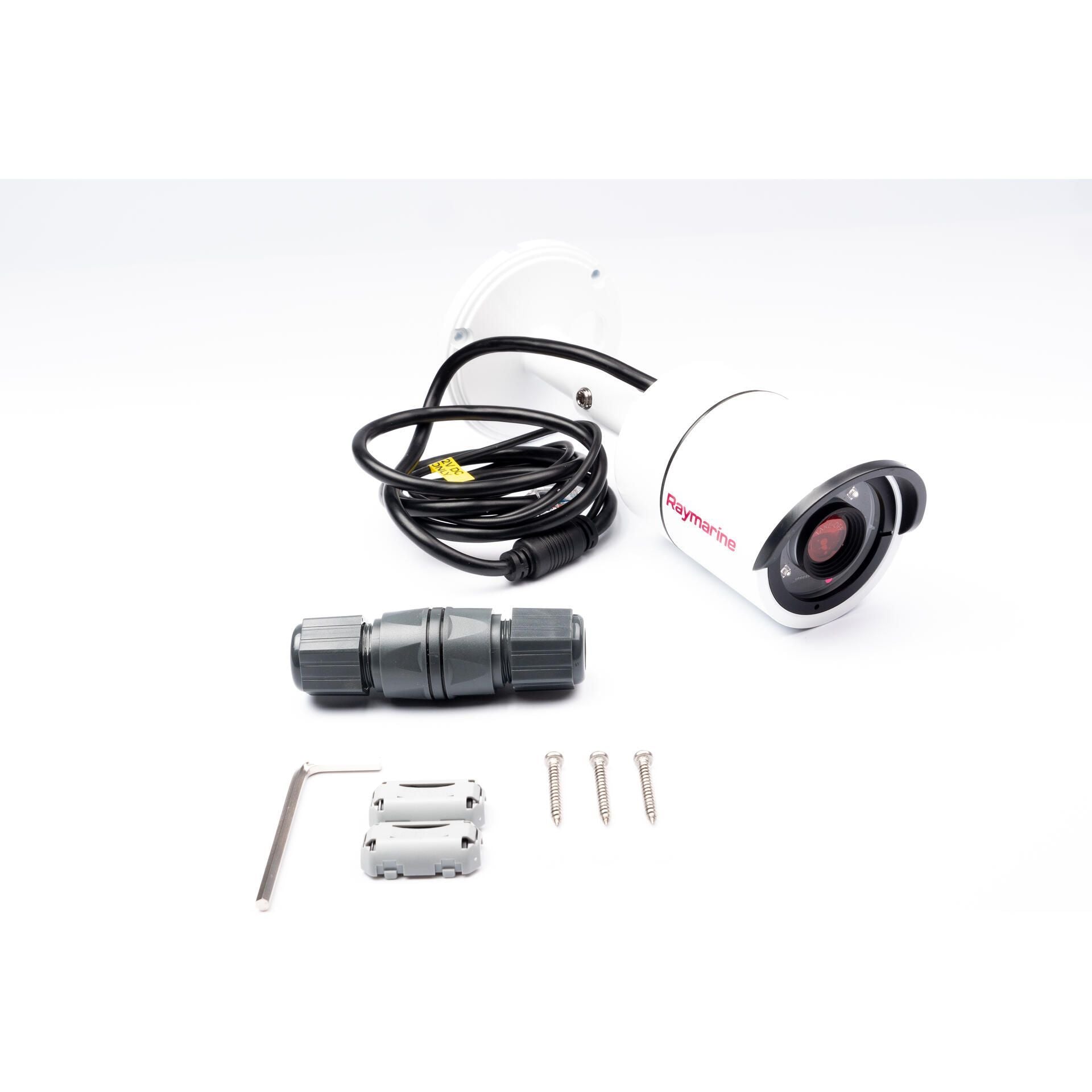

What’s included

• CAM210 IP camera with 1 m ethernet and power pigtail cable
• Documentation
• Mounting screws x3
• Nylon washers x3
• Hex wrench x1
• Waterproof RJ45 coupler x1
