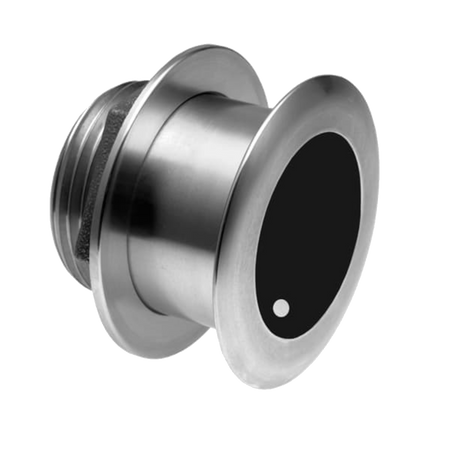

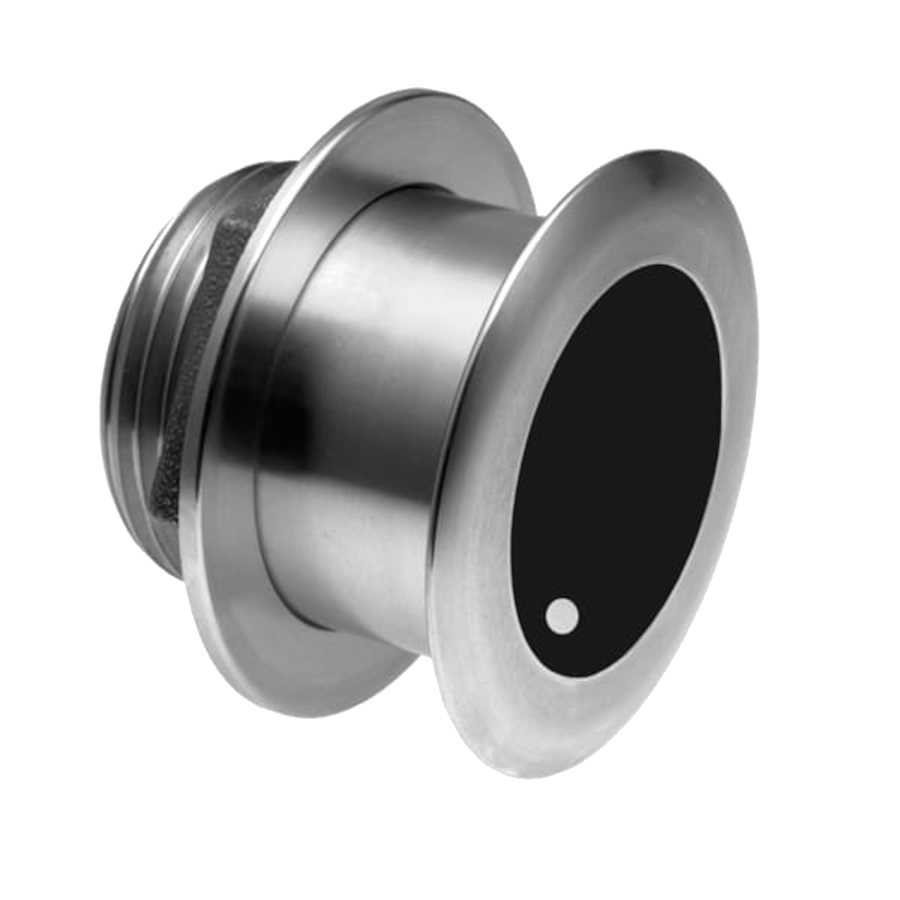

Airmar - SS175C-0-MW 0d Tilt Medium CHIRP Transducer
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
High-Performance CHIRP Technology for Superior Marine Navigation
The Airmar SS175MW is an advanced CHIRP-ready transducer designed for anglers and mariners who demand precision and efficiency in mid-depth waters. Featuring a 1 kW power rating and medium-frequency operation (60-100 kHz), this transducer provides excellent target separation and superior coverage under the vessel. Its ultra-wide beamwidth, ranging from 57° to 73° port-starboard and an average of 16° fore-aft, maximizes target detection, making it ideal for locating pelagic species.

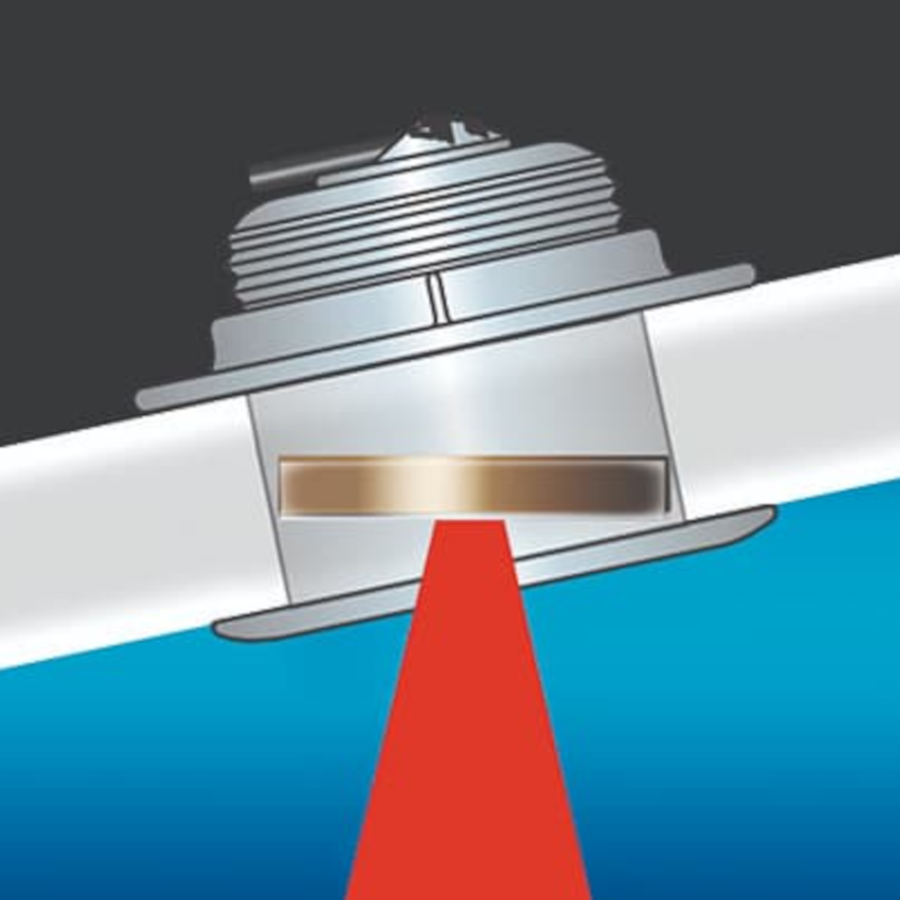

The 0° tilted element ensures a flush mount installation on hulls with a deadrise between 0° and 7°, optimizing echo returns for accurate depth readings. Equipped with AIRMAR’s exclusive Xducer ID® technology, the SS175MW offers seamless integration with compatible marine electronics. Additionally, its stainless steel housing and durable acoustic window ensure long-lasting performance in diverse marine environments.
Technical Specifications
- Power Rating: 1 kW
- Max Depth: 400 m (1,300')
- Medium Frequency Range: 60-100 kHz
- Beamwidth: 57° to 73° (Port/Starboard) x 16° average (Fore/Aft)
- Mounting Style: Tilted Element Thru-Hull
- Functions: Depth and temperature sensing
- Acoustic Window: Urethane
- Housing Material: Stainless steel
- Max Deadrise Angle: 24°
- Hull Compatibility: Suitable for all hull materials
- Max Vessel Length: Up to 11 m (36')
- Cable Length: 9 m (30')
- Water Temperature Range: -10° to 40°C (14° to 104°F)
- Weight: 2.7 kg (6 lb.)
- Hole Size for Installation: 95 mm (3-3/4")
Product Dimensions
- Transducer Weight: 2.7 kg (6 lb.)
- Cable Length: 9 m (30')
Key Features and Benefits
- Ultra-Wide Medium CHIRP Coverage: Provides superior mid-depth performance and enhanced fish-target separation.
- Tilted Element for Optimal Installation: Ensures maximum signal return with a flush-mount design.
- High Power & Depth Capabilities: Tracks depths up to 400 meters with a 1 kW power output.
- Durable Stainless Steel Construction: Built for longevity in harsh marine conditions.
- Fast-Response Temperature Sensor: Delivers real-time water temperature readings.
- Exclusive Xducer ID® Technology: Allows for seamless integration with compatible marine electronics.
Available Variations
The SS175MW transducer comes in multiple variations to accommodate different marine electronic systems. Each variation features a specific connector type for seamless compatibility:
- SS175C-0-MW-MM: Airmar 12-Pin Connector
- SS175C-0-MW-0: Bare Wire Connector
- SS175C-0-MW-10F: Furuno 10-Pin Connector
- SS175C-0-MW-12F: Furuno 12-Pin Connector
- SS175C-0-MW-12G: Garmin 12-Pin Connector
- SS175C-0-MW-8G: Garmin 8-Pin Connector
- SS175C-0-MW-14HB: Humminbird 14-Pin Connector
- SS175C-0-MW-21HB: Humminbird 21-Pin Connector
- SS175C-0-MW-HB: Humminbird 9-Pin Connector
- SS175C-0-MW-11R: Raymarine 11-Pin Connector
The Airmar SS175MW is the ideal solution for serious anglers and boaters looking to enhance their sonar capabilities with cutting-edge CHIRP technology and wide underwater coverage.
