Shadow-Caster LED Lighting - Eagle Ray Light Bar - Dual Optics Housing, 12/24V
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Precision Lighting for Marine Applications
The Shadow-Caster Eagle Ray Light Bar is engineered to deliver exceptional illumination in marine environments. Designed with cutting-edge automotive lighting technology, this light bar combines powerful laser-driven white light beams with a 60° LED flood array. This dual-optics system ensures both long-range visibility and wide-area coverage, making it ideal for navigation in fog, rain, and low-light conditions. The adjustable beam angle and brightness control provide unparalleled flexibility, allowing users to customize illumination through a switch or the Shadow-Caster® NMEA 2000 Light Commander interface.
Advanced Dual-Optics Technology
- Laser-Driven White Lights: Automotive-grade precision beams enhance long-range visibility.
- Adjustable Beam Angle: Control from 5° to 100° for tailored lighting performance.
- Flood LED Array: 24 high-intensity white LEDs with a 60° beam spread for broad illumination.
- Blue Halo Indicators: Instantly identify power state and brightness levels.
High-Performance Technical Specifications
- Lumens Output: 20,000 lumens for superior brightness.
- Voltage Range: 10-30V input, compatible with standard marine power systems.
- Current Draw: 16.5A at 12V DC for efficient energy consumption.
- Housing Material: Durable billet aluminum for marine-grade corrosion resistance.
Product Dimensions
- Height: 2.5 inches (65.3 mm)
- Width: 20 inches (506.5 mm)
- Depth: 5.4 inches (136.9 mm)
Available Finishes
- Black Housing – A sleek and durable finish for a modern marine aesthetic.
Key Highlights
- Dual-optics system for enhanced visibility in varying conditions.
- Adjustable brightness and beam angle for customized illumination.
- Rugged aluminum housing ensures durability in marine environments.
- Compatible with Shadow-Caster® NMEA 2000 Light Commander interface.
Variations List

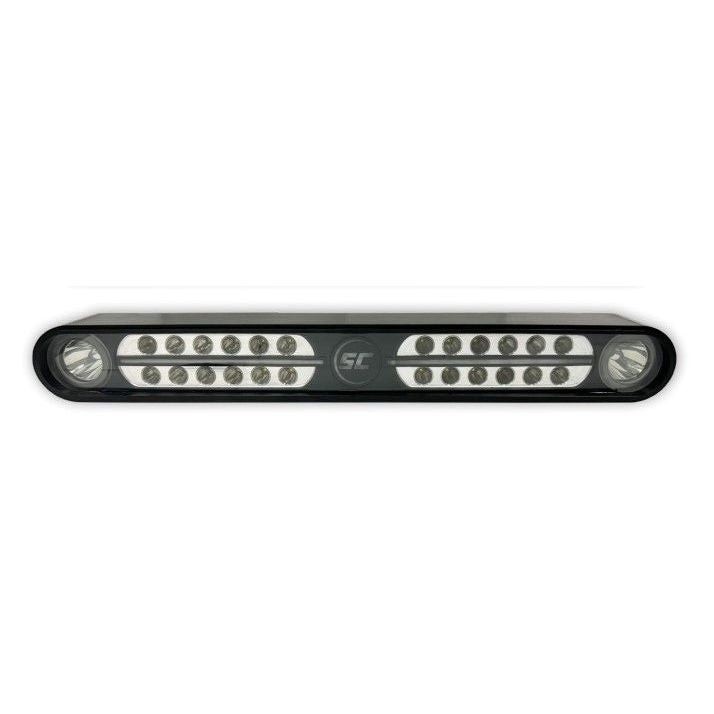

- SCM-EAGLE RAY-BK – Black Housing

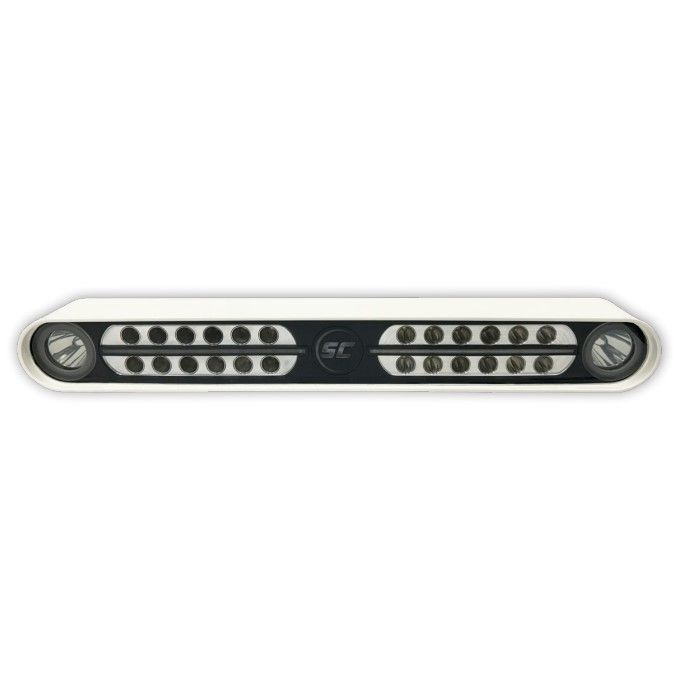

- SCM-EAGLE RAY-WH – White Housing
The Shadow-Caster Eagle Ray Light Bar is designed to offer powerful, flexible, and reliable illumination, making it an essential lighting solution for any marine application.
