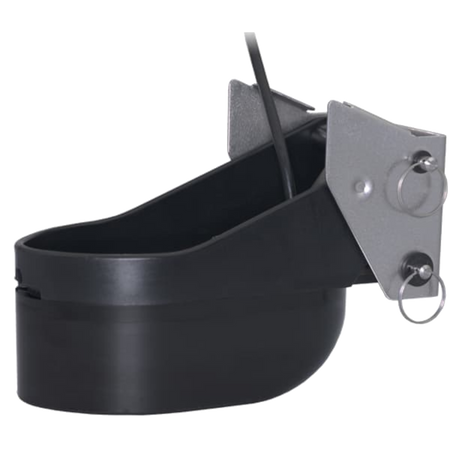

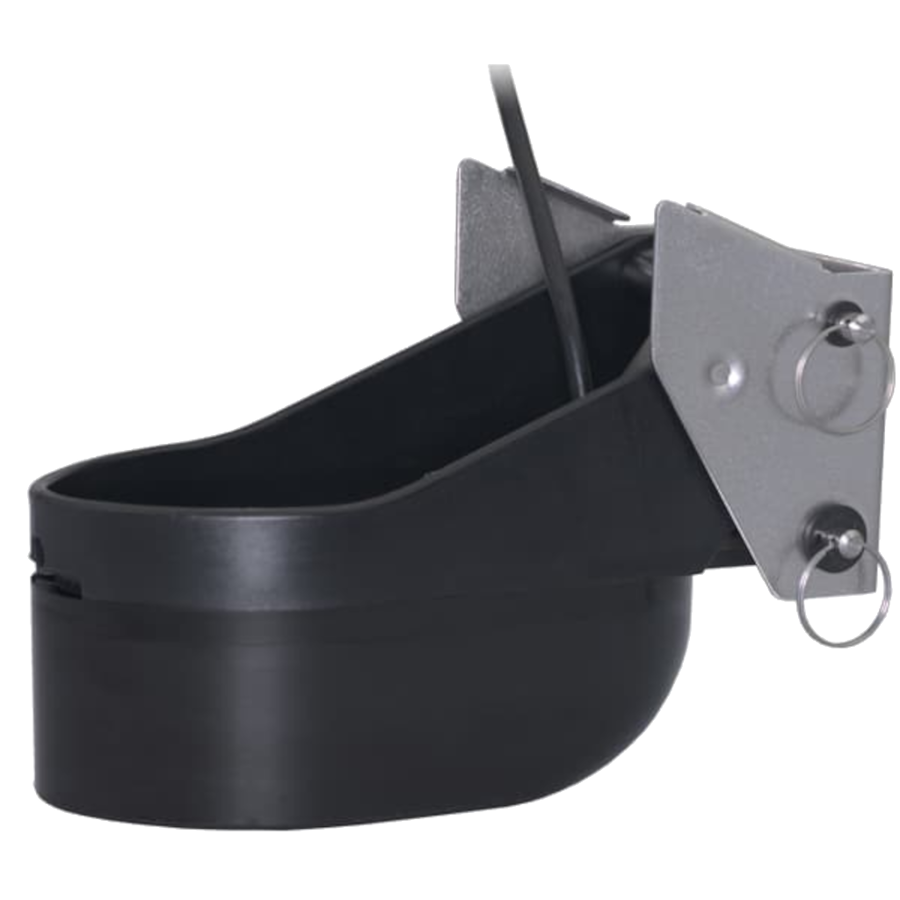

Airmar - TM265C-LM 1kW Low Medium CHIRP Transducer
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Advanced CHIRP Technology for Enhanced Marine Sonar Performance
The Airmar TM265C-LM 1kW Low/Medium CHIRP Transducer is engineered for anglers seeking superior underwater clarity and depth performance. Designed for small to mid-sized boats (25'-40'), this transom-mounted transducer delivers precise depth readings and fast-response water temperature sensing, making it an essential tool for serious fishermen. Its advanced CHIRP technology enhances target separation and provides superior fish detection at greater depths compared to traditional sonar transducers.
With its seamless urethane housing and stainless-steel bracket, the TM265C-LM ensures durability and long-term resistance to harsh marine environments. The Mix-N-Match plug system provides versatility, allowing compatibility with various marine electronics.
High-Performance Dual-Band CHIRP Capabilities
Equipped with a powerful 1 kW CHIRP-ready dual-band transducer, the TM265C-LM operates across both low and medium frequencies to maximize underwater coverage:
- Low Frequency (42-65 kHz): Wide beamwidth (25° to 16°), reaching depths up to 914 meters (3,000 feet), ideal for deep-water fishing.
- Medium Frequency (85-135 kHz): Narrower beamwidth (16° to 11°) for improved target resolution, with a maximum depth of 457 meters (1,500 feet).
- 73 kHz Total Bandwidth: Covers key fishing frequencies (50, 88, and 107 kHz) while also providing continuous scanning across the entire range.
Rugged Transom Mount Design
Built for reliable operation in diverse marine conditions, this transducer features a transom-mounted stainless-steel bracket for secure installation on boats of all propulsion types. The patented Xducer ID® technology ensures seamless integration with CHIRP-enabled fish finders, optimizing performance based on the connected system.
Technical Specifications
- Power Rating: 1 kW
- Mounting Style: Transom mount
- Housing Material: Seamless urethane with stainless steel bracket
- Cable Length: 10 meters (33 feet)
- Transom Angle Compatibility: 3° to 21°
- Functions: Depth and temperature sensing
- Single or Dual Frequency: CHIRP-ready dual-band
Key Highlights
- High-power 1 kW CHIRP transducer for superior deep and mid-depth sonar performance
- Dual-band operation covering both low and medium frequencies
- Transom mount design with a stainless-steel bracket for easy installation
- Durable SEALCAST™ urethane housing for long-lasting water resistance
- Patented Xducer ID® technology for seamless fish finder integration
Variations and Connector Options
The TM265C-LM transducer is available in multiple variations, each with a different connector type to ensure compatibility with various marine electronics:
- TM265C-LM-MM: Airmar 12-Pin Connector
- TM265C-LM-0: Bare Wire Connector
- TM265C-LM-12F: Furuno 12-Pin Connector
- TM265C-LM-12G: Garmin 12-Pin Connector
- TM265C-LM-BL2: Lowrance 7-Pin Connector
- TM265C-LM-11R: Raymarine 11-Pin Connector
- TM265C-LM-9N2: Simrad 9-Pin Connector
With its cutting-edge CHIRP sonar technology and durable construction, the Airmar TM265C-LM ensures exceptional underwater performance for commercial and sport fishermen alike.
