Airmar - TM185C Transducer Medium CHIRP Ultra Wide Transducer
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Advanced CHIRP Technology for Superior Marine Performance

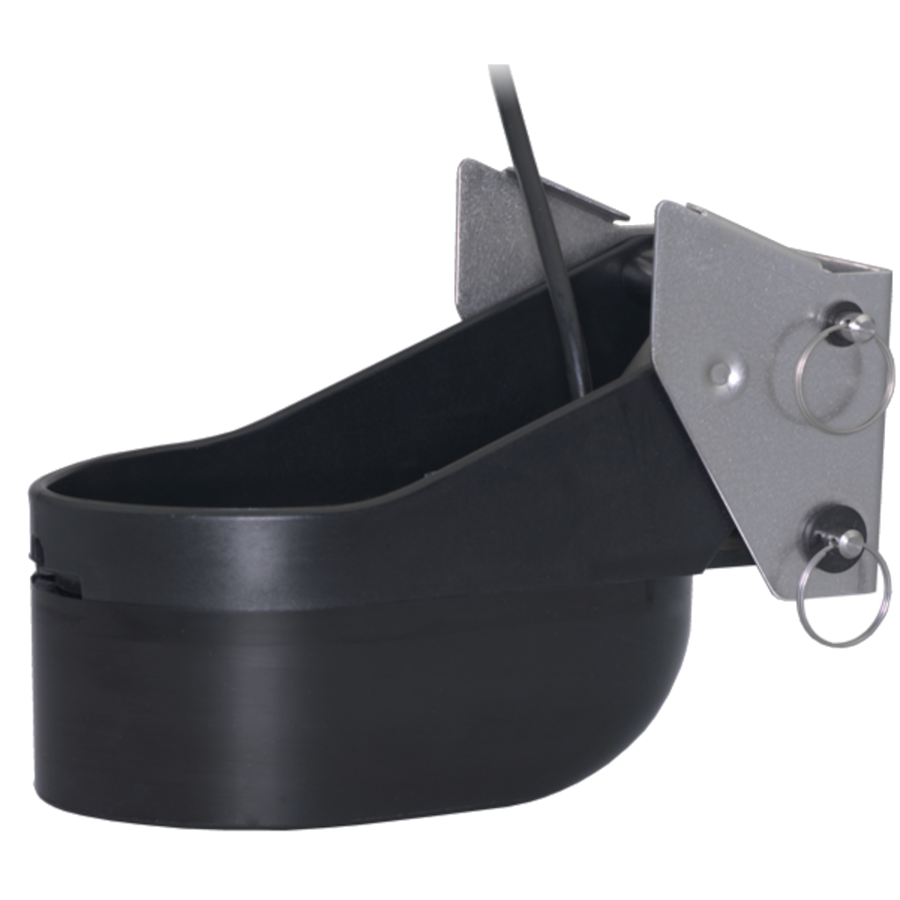

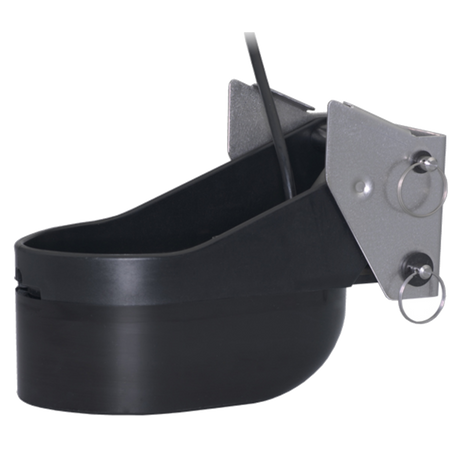

The Airmar TM185MW Medium Ultra-Wide CHIRP-ready Transom Mount Transducer is engineered to deliver exceptional underwater clarity and precision for serious anglers. Utilizing medium-frequency CHIRP (60-100 kHz), this transducer provides enhanced target separation and superior performance in mid-depth waters, making it ideal for tracking pelagic species. With an ultra-wide beamwidth of 57-73° port-starboard and 16° average fore-aft, the TM185MW maximizes underwater coverage, ensuring detailed imaging beneath the vessel.
Designed for easy transom mounting, this 1 kW transducer is perfect for small and trailered vessels where a thru-hull installation is impractical. Built with AIRMAR’s innovative Xducer ID® technology, it offers plug-and-play compatibility with a wide range of marine electronics. The TM185MW provides excellent performance at boat speeds below 30 knots and features a depth and fast-response water-temperature sensor for accurate marine data collection.
High-Performance Specifications for Marine Use
- Power Rating: 1 kW
- Frequency Range: 60-100 kHz
- Beamwidth: 57° to 73° (port/starboard), 16° average (fore/aft)
- Maximum Depth Tracking: 400 m (1,300')
- Transom Angle Compatibility: 2° to 22°
- Functions: Depth and temperature sensing
- Acoustic Window: Urethane
- Cable Length: 9 m (30')
- Housing Material: Urethane with a stainless steel bracket
- Mounting Style: Transom
- Weight: 4.2 kg (9.2 lb.)
- Single or Dual Frequency: CHIRP-ready single-band

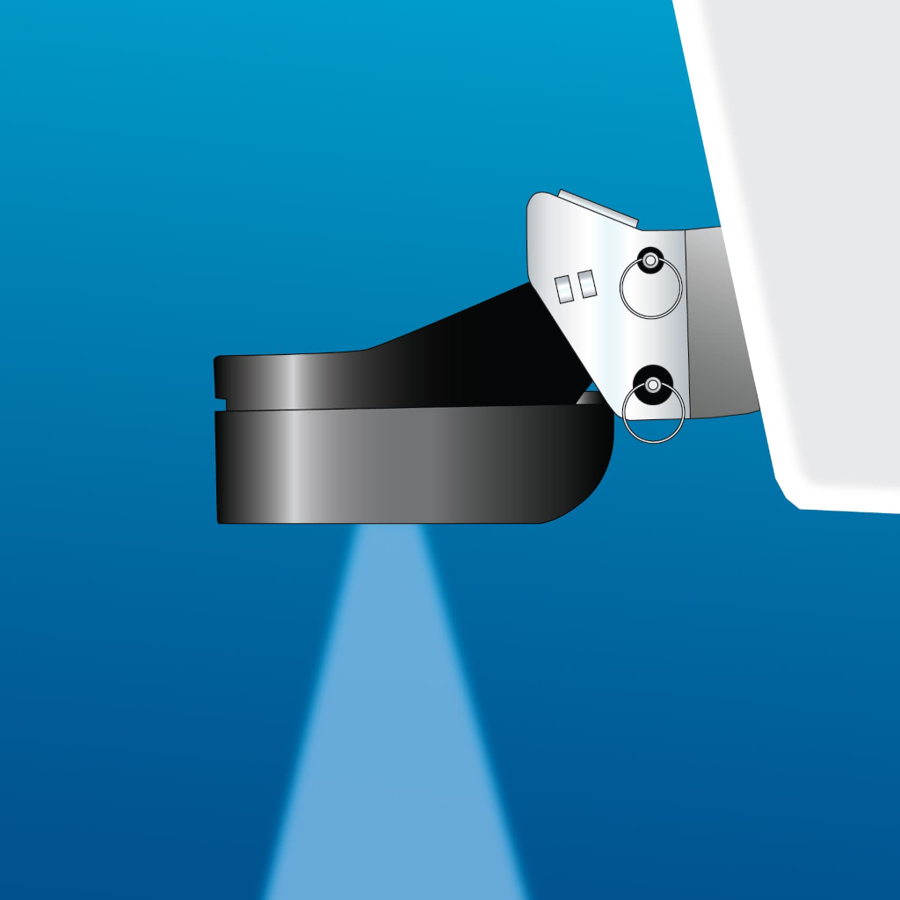

Optimized for Small and Trailered Vessels
The transom-mount design allows for an easy and secure installation, making it an ideal choice for small boats and trailered vessels. The TM185MW ensures stable and accurate readings without the need for complex hull modifications, maintaining vessel integrity while delivering powerful sonar performance.
Key Features at a Glance
- CHIRP-ready medium-frequency transducer (60-100 kHz)
- Ultra-wide beamwidth for maximum underwater coverage
- Tracks depths up to 400 m (1,300')
- Easy transom mounting for small and trailered boats
- Provides superior target separation in mid-depth waters
- Excellent performance at speeds below 30 knots
- Low-maintenance design with cost-effective replacement options
- Integrated Xducer ID® technology for seamless integration
Available Variations
The Airmar TM185MW transducer is available in multiple connector options to suit a variety of marine electronics:
- TM185C-MW-MM – Airmar 12-Pin Connector
- TM185C-MW-0 – Bare Wire Connector
- TM185C-MW-10F – Furuno 10-Pin Connector
- TM185C-MW-12F – Furuno 12-Pin Connector
- TM185C-MW-12G – Garmin 12-Pin Connector
- TM185C-MW-8G – Garmin 8-Pin Connector
- TM185C-MW-14HB – Humminbird 14-Pin Connector
- TM185C-MW-21HB – Humminbird 21-Pin Connector
- TM185C-MW-HB – Humminbird 9-Pin Connector
- TM185C-MW-11R – Raymarine 11-Pin Connector
What's Included
- TM185MW Medium Ultra-Wide CHIRP-ready Transom Mount Transducer
Designed to enhance your marine navigation and fishing experience, the Airmar TM185MW offers cutting-edge CHIRP technology with an ultra-wide beam for unparalleled underwater performance.
