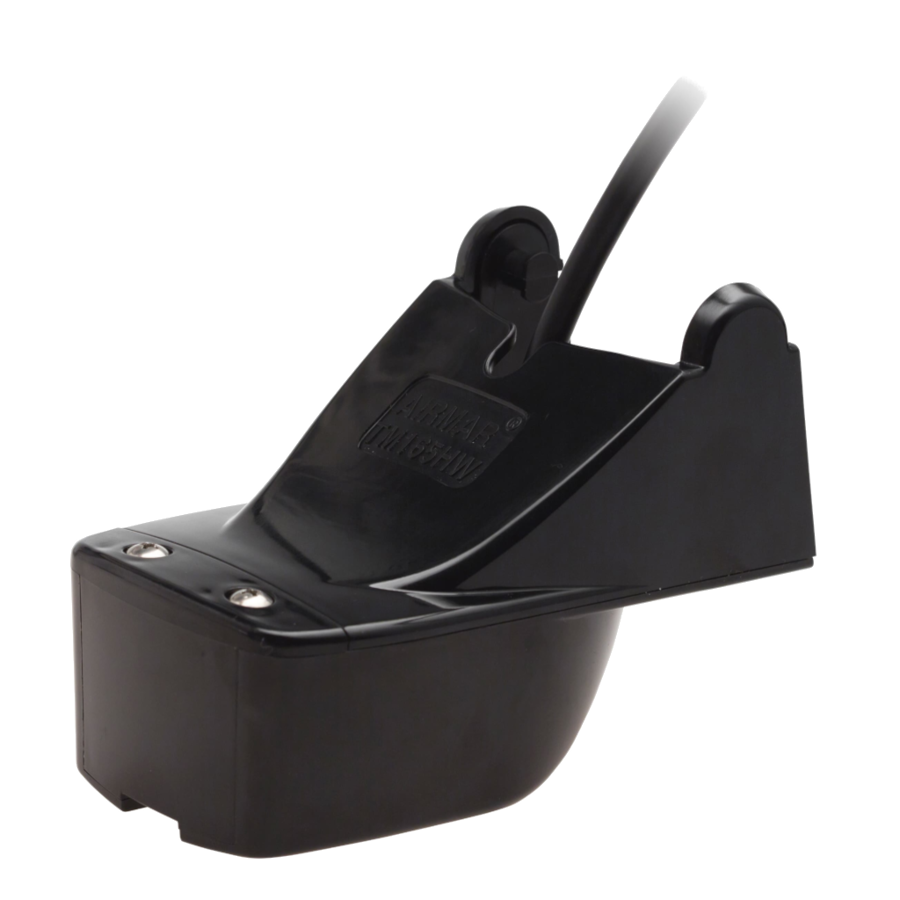

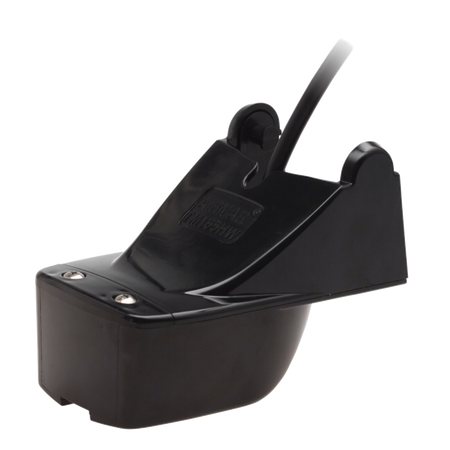

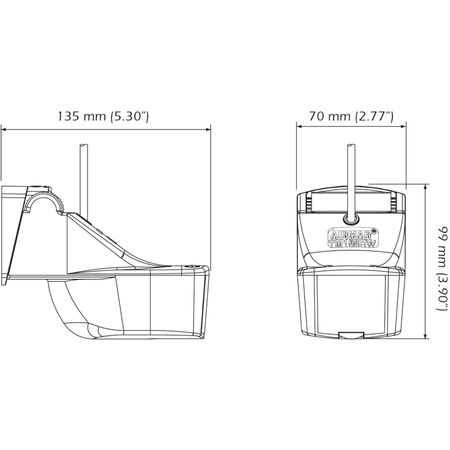

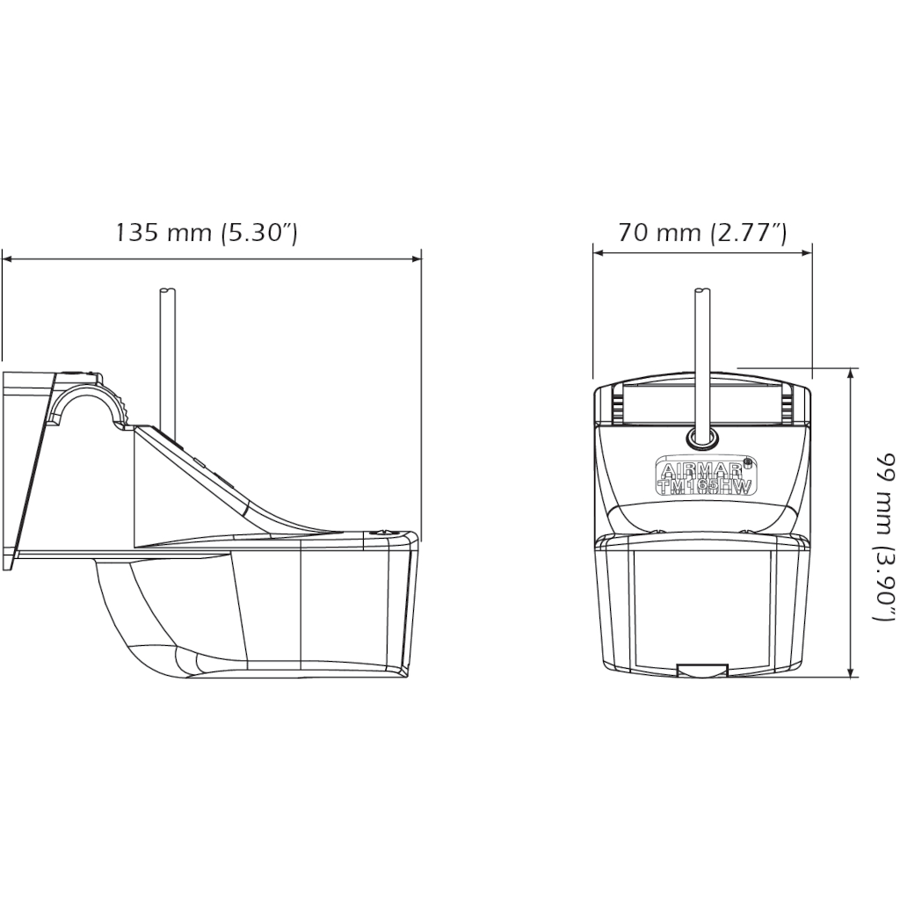

Airmar - TM165C-HW Transducer High Wide CHIRP Transducer

High-Wide CHIRP Performance for Superior Fish Detection

The Airmar TM165C-HW Transducer is designed to maximize underwater coverage and provide unparalleled fish-finding capability. With its high-wide CHIRP technology, this transducer offers an impressive frequency range of 150 kHz to 250 kHz and a super-wide 30° average beamwidth. This ensures broader coverage beneath your vessel, allowing for exceptional detection of fish in the upper water column.

Ideal for anglers and professionals alike, the TM165C-HW enhances bottom detail, improves fish target separation, and provides superior shallow-water performance. Its compact yet high-performance design ensures clear sonar readings even at high speeds, making it a valuable addition to any marine setup.

Advanced Sonar Capabilities and Compatibility

Engineered to deliver optimal performance, the TM165C-HW boasts a 600W power rating and can reach depths of up to 152 meters (500 feet). The transducer’s wide beamwidth significantly increases the coverage area under the boat, offering three times the range compared to traditional high-frequency CHIRP transducers. This feature enhances sonar returns, resulting in crisper, larger images on your display.

Additionally, this transducer includes Airmar’s exclusive Xducer ID® technology, which enables seamless integration with various sonar units. When paired with compatible fishfinders, the transducer automatically sets optimal parameters for precise readings. It is manually compatible with Lowrance HDS Live/ HDS Carbon, Humminbird Helix, Raymarine Axiom Pro, and Simrad EVO 3 sonar systems. Future software updates from sonar manufacturers will further enhance compatibility.

Durable and Versatile Marine Design

The TM165C-HW is constructed for reliable performance in various marine conditions. Featuring a robust plastic transom bracket and hardware, it is recommended for planing hulls made of fiberglass, metal, or wood. The transducer supports installation on boats up to 8 meters (25 feet) in length and accommodates hull deadrises of up to 30°.

Technical Specifications

• Power: 600W
• Frequency Range: 150 kHz - 250 kHz
• Beamwidth: 30° (average)
• Maximum Depth: 152 m (500’)
• Hull Deadrise Compatibility: Up to 30°
• Transom Angle Support: 2° to 22°
• Acoustic Window Material: Layered plastic urethane (LPU)
• Cable Length: 9 m (29’)
• Weight: 1.1 lb (0.5 kg)

Key Features

• High-wide CHIRP technology for maximum coverage and detailed imaging
• Wide beamwidth for enhanced fish detection in the upper water column
• Covers popular fishing frequency of 200 kHz, plus additional bandwidth
• Exceptional bottom detail and target separation in shallow waters
• Low-profile, high-performance design maintains clarity at speed
• Easy transom-mount installation with durable plastic bracket
• Compatible with leading sonar brands, with future updates for expanded support

Available Variations

The TM165C-HW transducer is available in multiple connector options to match different sonar systems:

• TM165C-HW-MM – Airmar 12-Pin Connector
• TM165C-HW-0 – Bare Wire Connector
• TM165C-HW-10F – Furuno 10-Pin Connector
• TM165C-HW-12G – Garmin 12-Pin Connector
• TM165C-HW-8G – Garmin 8-Pin Connector
• TM165C-HW-14HB – Humminbird 14-Pin Connector
• TM165C-HW-21HB – Humminbird 21-Pin Connector
• TM165C-HW-HB – Humminbird 9-Pin Connector
• TM165C-HW-BL – Lowrance 7-Pin Connector
• TM165C-HW-11R – Raymarine 11-Pin Connector
• TM165C-HW-9N – Simrad 9-Pin Connector
• TM165C-HW-BB – Standard Horizon 9-Pin Connector

The Airmar TM165C-HW Transducer is a game-changer for anglers seeking enhanced sonar performance, broader underwater coverage, and precise fish detection. Its high-wide CHIRP technology, durable construction, and compatibility with major sonar brands make it a top choice for serious marine enthusiasts.
