Advanced CHIRP Technology for Precision Fishing

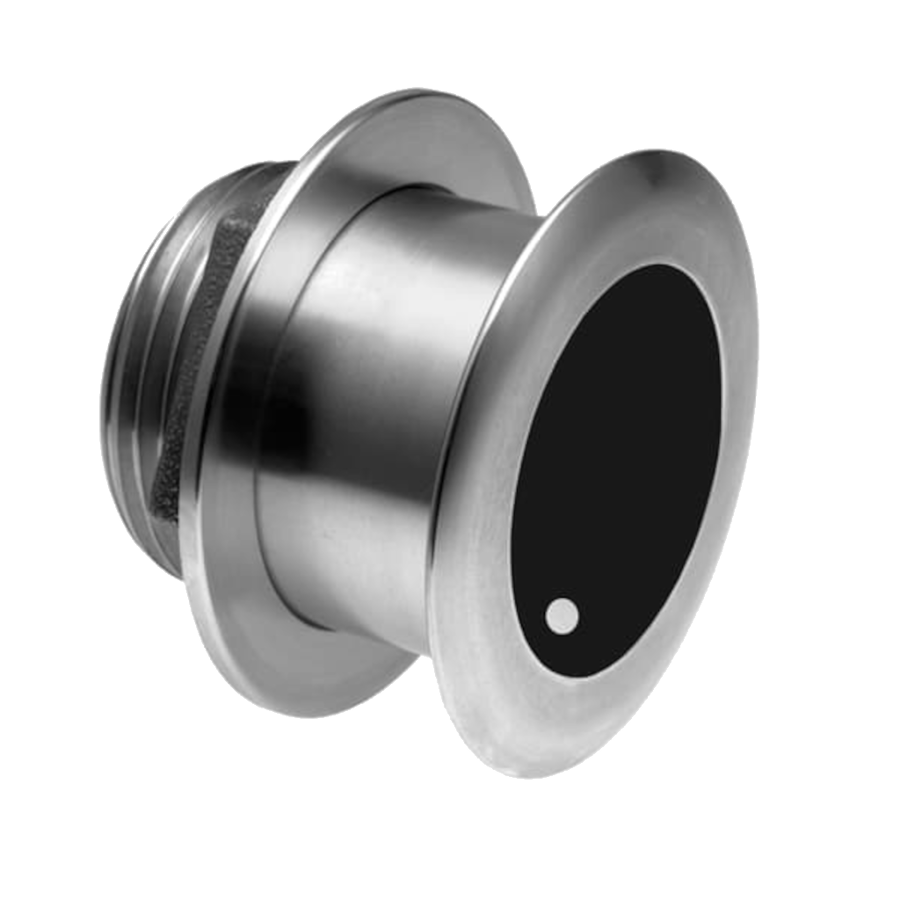

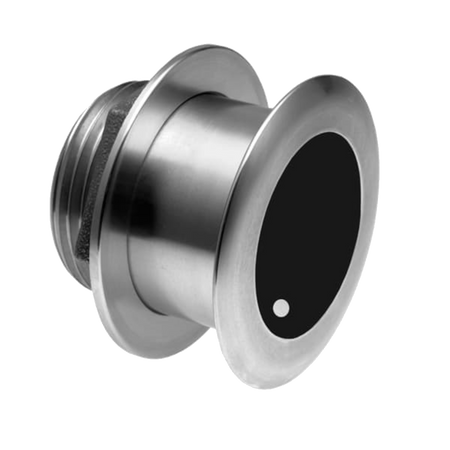

The Airmar SS175C-20-L 20d Tilt Low CHIRP Transducer is designed to provide superior depth and temperature readings with unmatched accuracy. This advanced transducer operates within a low CHIRP frequency range of 40 kHz to 75 kHz, offering an extensive 35 kHz bandwidth for highly detailed underwater imaging. Its steel housing ensures durability, making it ideal for vessels up to 8 meters (25 feet) with steel or aluminum hulls. With Airmar’s exclusive Xducer ID® technology, this transducer optimizes performance by automatically configuring to compatible sonar systems. Whether used for commercial fishing, charter operations, or competitive angling, it delivers precise bottom detection down to 3,000 meters (10,000 feet), distinguishing baitfish, game fish, and underwater structures with exceptional clarity.
Optimized Design for Enhanced Performance

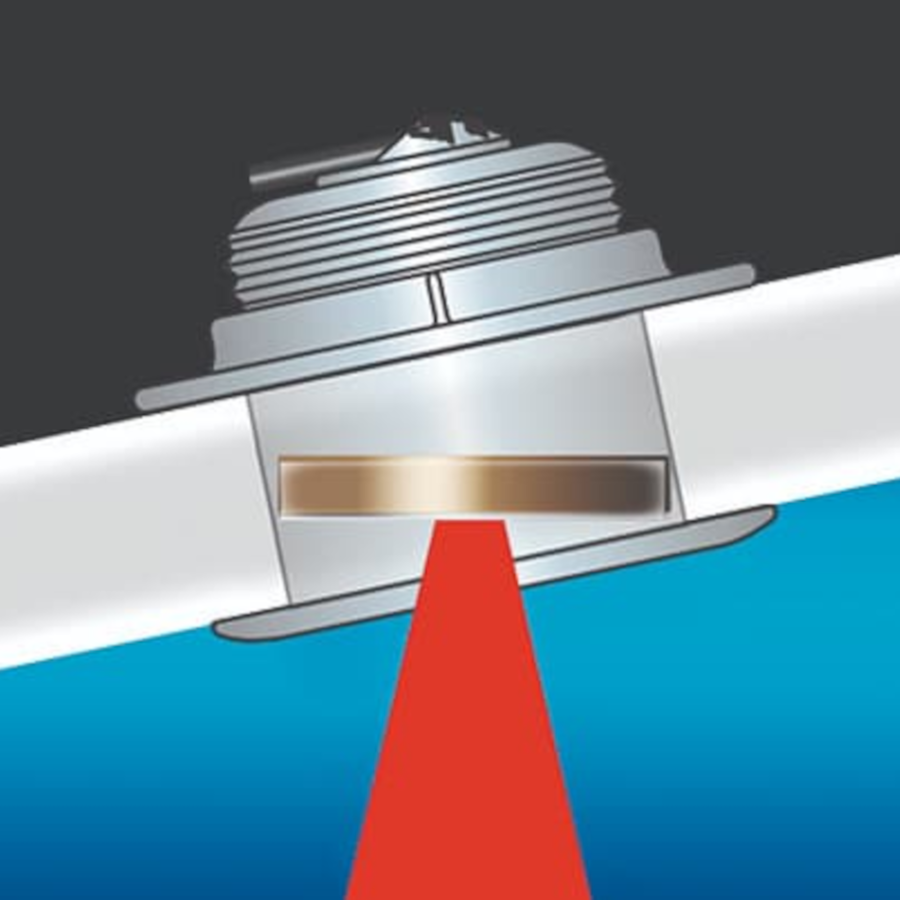

The SS175C-20-L is engineered with a nearly flush-mount installation, ensuring minimal drag and optimal signal reception. The built-in 20-degree tilt compensates for hull deadrise, keeping the ceramic element positioned correctly for maximum echo returns. This design allows for better target resolution, making it easier to detect fish in deep waters.
Technical Specifications
- Frequency Range: 40 kHz - 75 kHz
- Beamwidth: 32° to 21°
- Bandwidth: 35 kHz total bandwidth
- Depth Capability: Up to 3,000 m (10,000 ft)
- Transducer Housing: Steel
- Hull Compatibility: Steel or aluminum
- Exclusive Technology: Xducer ID® for automatic configuration
Product Dimensions
- Weight: 2.7 kg (6 lb)
- Hull Deadrise Compatibility: 16° to 24°
- Acoustic Window Material: Urethane
Key Features
- High-performance CHIRP technology for superior underwater detail
- Wide frequency range covering the popular 50 kHz fishing frequency
- Tilted element design ensures optimal sonar performance
- Durable steel housing for long-lasting marine use
- Ideal for boats up to 8 meters (25 feet)
- Nearly flush-mount installation reduces drag and enhances signal reception
Available Variations
- SS175C-20-L-MM: Airmar 12-Pin Connector
- SS175C-20-L-0: Bare Wire Connector
- SS175C-20-L-12G: Garmin 12-Pin Connector
- SS175C-20-L-14HB: Humminbird 14-Pin Connector
- SS175C-20-L-11R: Raymarine 11-Pin Connector
- SS175C-20-L-9N: Simrad 9-Pin Connector
- SS175C-20-L-BB: Standard Horizon 9-Pin Connector
Designed for serious anglers and marine professionals, the Airmar SS175C-20-L ensures high-precision depth detection and optimal performance in all fishing conditions.
