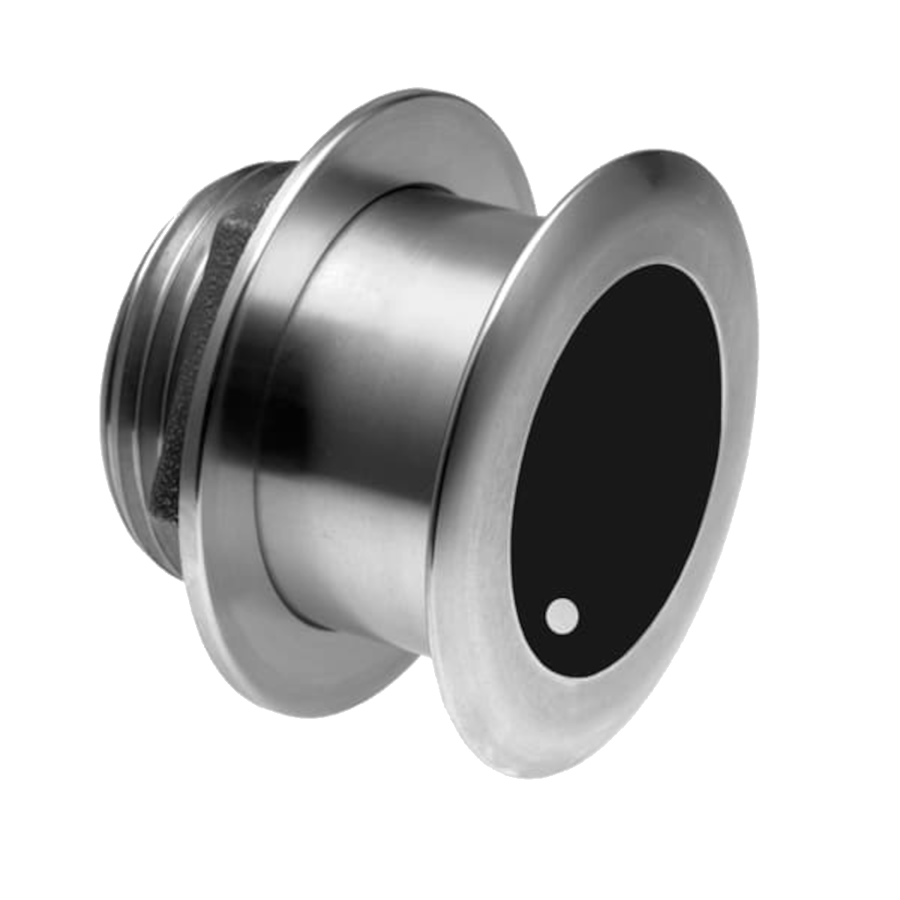

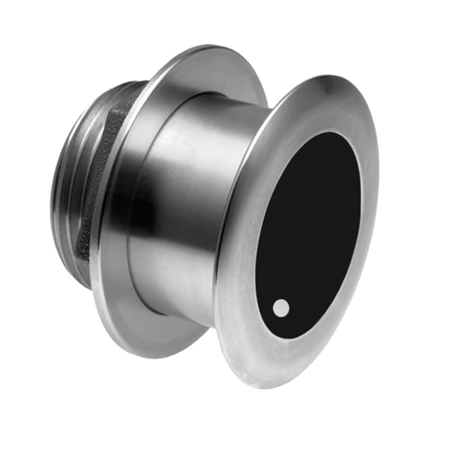

Airmar - SS175C-20-HW 20d Tilt High Wide CHIRP Transducer

High-Performance Wide Beam CHIRP Transducer for Superior Marine Imaging

Airmar's SS175C-12-L transducer is designed for marine professionals and serious anglers seeking enhanced underwater visibility and precise fish detection. Utilizing CHIRP technology, this transducer provides a broad frequency range of 150 kHz to 250 kHz with a constant 25° beamwidth, delivering superior target separation and detailed imaging. The high-performance sensor is optimized for boats 25 feet and larger, making it an excellent choice for steel or aluminum hulls. Its fast-response water temperature sensor and innovative Xducer ID® technology ensure efficient and reliable operation in demanding marine conditions.

Advanced CHIRP Technology for Wider Coverage

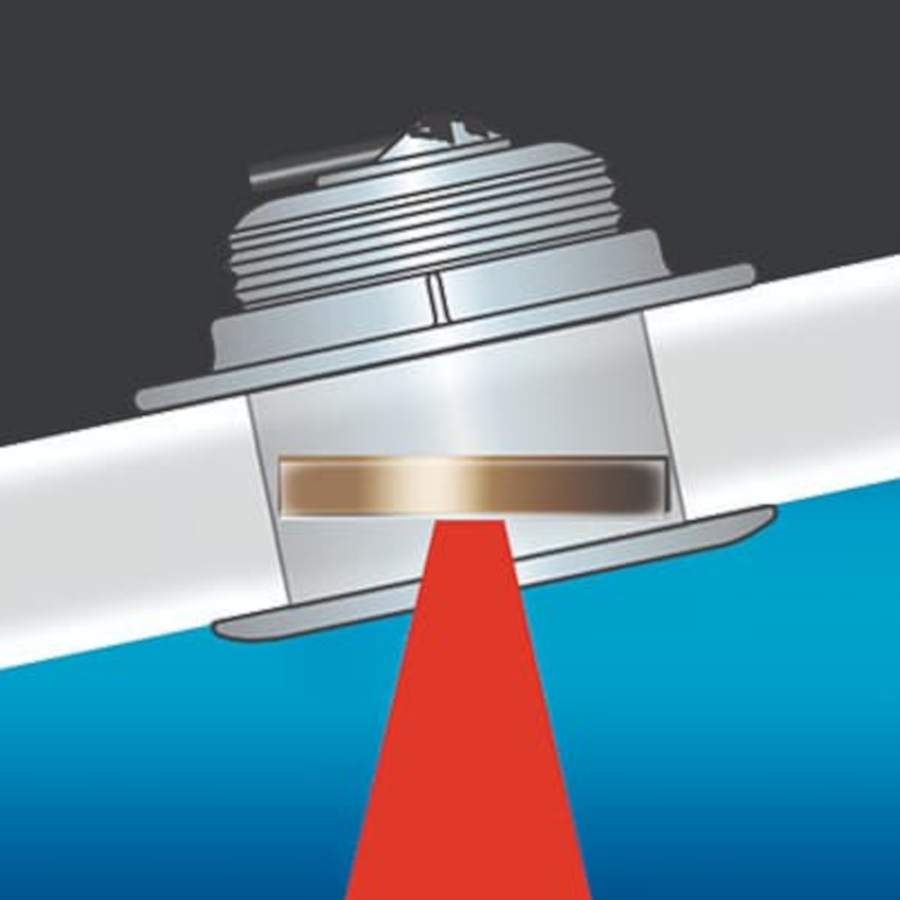

Airmar’s wide beam CHIRP technology significantly increases the sonar coverage beneath your vessel. Unlike traditional transducers with variable beam widths, the SS175C-12-L maintains a consistent 25° beam angle across the entire frequency range. This design enhances bottom coverage, improves target detection in the upper water column, and provides clearer, more detailed return images on your echosounder display. With 100 kHz of total bandwidth, this transducer effectively covers the popular 200 kHz fishing frequency and additional ranges for broader versatility.

Technical Specifications

• Depth & Water Temperature Sensor: Integrated for real-time, responsive readings.
• Frequency Range: 150 kHz – 250 kHz with CHIRP technology.
• Beamwidth: Constant 25° for wider and more detailed imaging.
• Hull Compatibility: Designed for steel and aluminum hulls.
• Boat Size Recommendation: Suitable for vessels 8 meters (25 feet) and above.
• Acoustic Window: Made from durable urethane for long-term performance.
• Hull Deadrise Compatibility: Supports hull angles between 16° and 24°.
• Weight: 2.7 kg (6 lbs).

Available Variations

This transducer is available in multiple connector types to ensure compatibility with a range of marine electronics. Choose from the following options:

• SS175C-20-HW-MM – Airmar 12-Pin Connector
• SS175C-20-HW-0 – Bare Wire Connector
• SS175C-20-HW-12G – Garmin 12-Pin Connector
• SS175C-20-HW-8G – Garmin 8-Pin Connector
• SS175C-20-HW-14HB – Humminbird 14-Pin Connector
• SS175C-20-HW-21HB – Humminbird 21-Pin Connector
• SS175C-20-HW-HB – Humminbird 9-Pin Connector
• SS175C-20-HW-BL – Lowrance 7-Pin Connector
• SS175C-20-HW-11R – Raymarine 11-Pin Connector
• SS175C-20-HW-9N – Simrad 9-Pin Connector
• SS175C-20-HW-BB – Standard Horizon 9-Pin Connector

Key Benefits at a Glance

• Superior CHIRP technology for enhanced fish detection and bottom imaging.
• Consistent wide beam (25°) for improved underwater coverage.
• Covers a broad frequency range (150 kHz – 250 kHz) for greater versatility.
• Optimized for larger vessels (25 ft and above) with steel or aluminum hulls.
• Multiple connector options for seamless integration with major marine electronics brands.

The Airmar SS175C-12-L transducer is engineered for professional-grade marine applications, offering unmatched clarity and precision for anglers and navigators alike.
