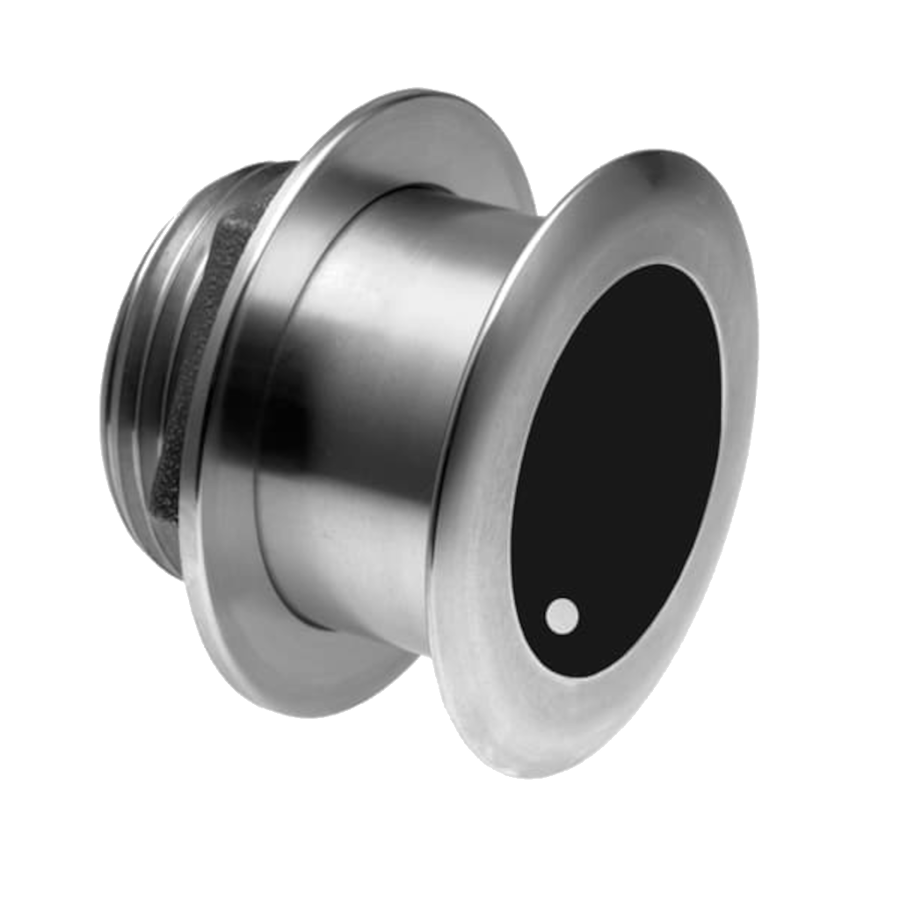

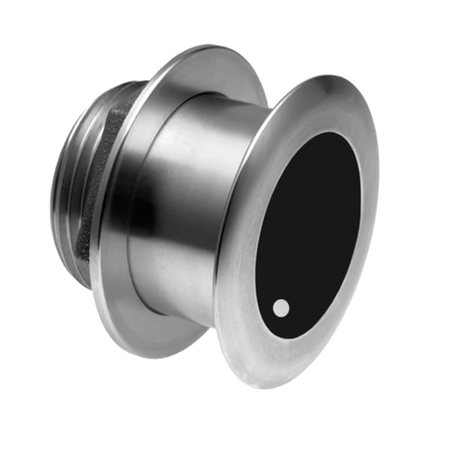

Airmar - SS175C-20-H 20d Tilt High CHIRP Transducer

High-Performance CHIRP Transducer for Superior Marine Detection

The Airmar SS175C-20-H 20° Tilt High CHIRP Transducer is a top-tier choice for serious anglers, commercial fishermen, and charter captains looking for unmatched underwater detection. Designed for boats up to 11 meters (36 feet) with steel or aluminum hulls, this advanced transducer offers precise depth readings and fast-response water temperature sensing. Its CHIRP technology enhances bottom detection, delivering unparalleled clarity to distinguish between baitfish, game fish, and underwater structures.

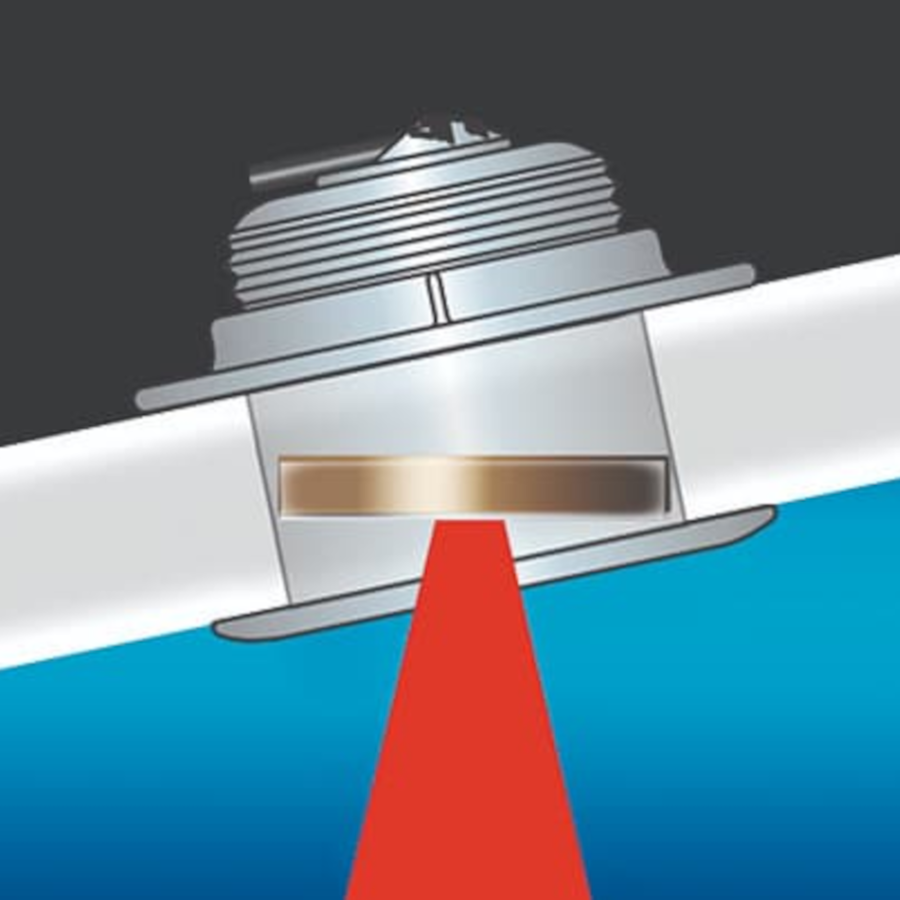

Thanks to its innovative tilted-element design, the SS175C-20-H compensates for hull deadrise, ensuring optimal echo returns for the most accurate sonar readings. The transducer’s durable steel housing and nearly flush installation make it an ideal choice for high-performance marine applications.

Advanced CHIRP Technology for Enhanced Imaging

Operating in the high CHIRP range from 130 kHz to 210 kHz, this transducer provides an 80 kHz total bandwidth, significantly improving target separation and resolution. With a beamwidth ranging from 15° to 9°, it enables a broader and clearer view of the underwater environment, allowing users to detect fish and bottom structures with impressive accuracy.

Durable and Efficient Design

• Material: Robust steel housing ensures long-term durability in marine environments.
• Installation: Flush-mounted with a tilted element to correct for hull deadrise, optimizing sonar performance.
• Hull Compatibility: Specifically designed for steel and aluminum hulls.

Technical Specifications

• Hull Deadrise Compatibility: 16° to 24°
• Acoustic Window Material: Urethane
• Weight: 2.7 kg (6 lb)

Key Features and Benefits

• High CHIRP frequency range (130 kHz - 210 kHz) for superior target separation
• 80 kHz total bandwidth in a single transducer installation
• Tilted element corrects hull deadrise for optimal performance
• Integrated fast-response water temperature sensor
• Durable steel housing for reliable long-term use
• Exclusive Xducer ID® technology for automatic recognition by sonar systems

Available Variations

The Airmar SS175C-20-H 20° Tilt High CHIRP Transducer is available with multiple connector options to ensure compatibility with different marine electronics brands:

• SS175C-20-H-MM – Airmar 12-Pin Connector
• SS175C-20-H-0 – Bare Wire Connector
• SS175C-20-H-12G – Garmin 12-Pin Connector
• SS175C-20-H-8G – Garmin 8-Pin Connector
• SS175C-20-H-14HB – Humminbird 14-Pin Connector
• SS175C-20-H-21HB – Humminbird 21-Pin Connector
• SS175C-20-H-HB – Humminbird 9-Pin Connector
• SS175C-20-H-BL – Lowrance 7-Pin Connector
• SS175C-20-H-11R – Raymarine 11-Pin Connector
• SS175C-20-H-9N – Simrad 9-Pin Connector
• SS175C-20-H-BB – Standard Horizon 9-Pin Connector

This transducer is the perfect choice for professionals and serious anglers seeking enhanced underwater visibility, durability, and compatibility with a wide range of marine electronics.
