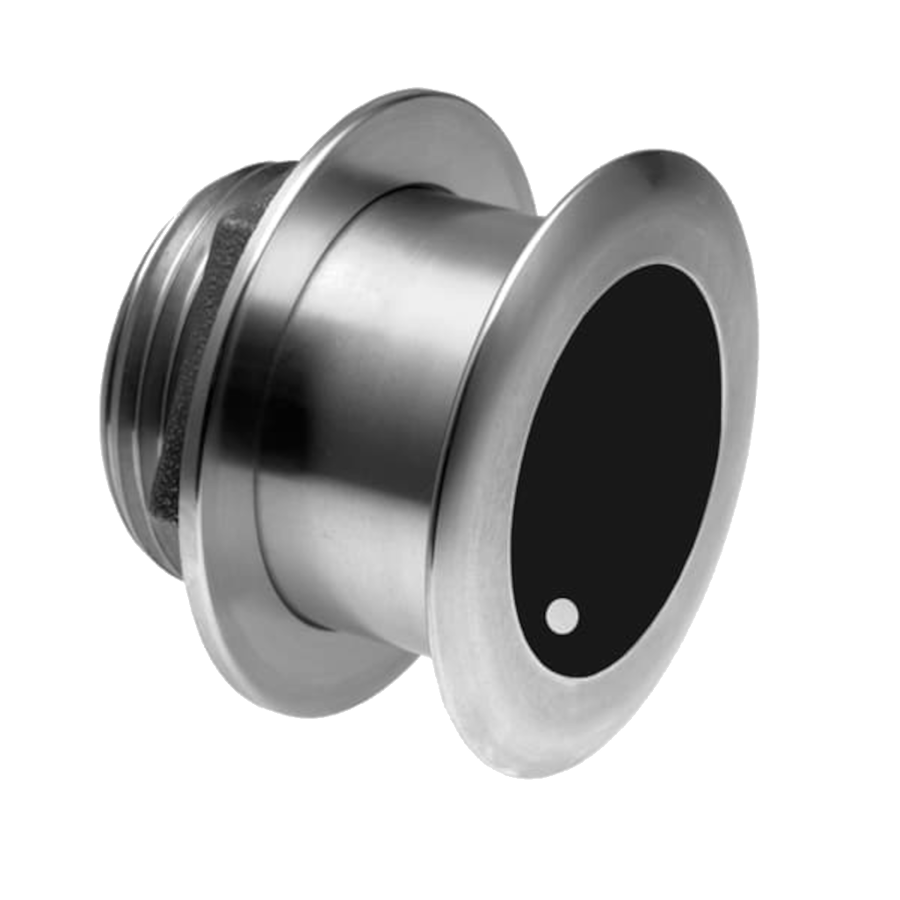

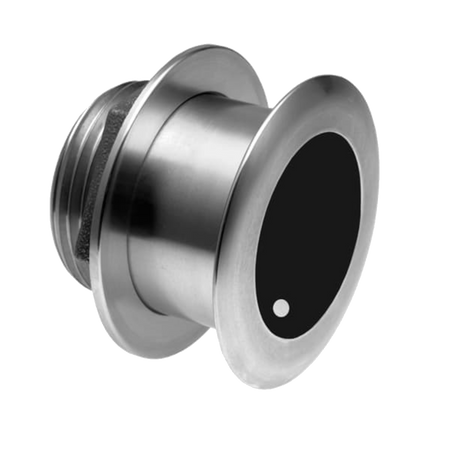

Airmar - SS175C-12-MW 12d Tilt Medium CHIRP Ultra Wide Transducer
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Advanced CHIRP Technology for Superior Underwater Imaging

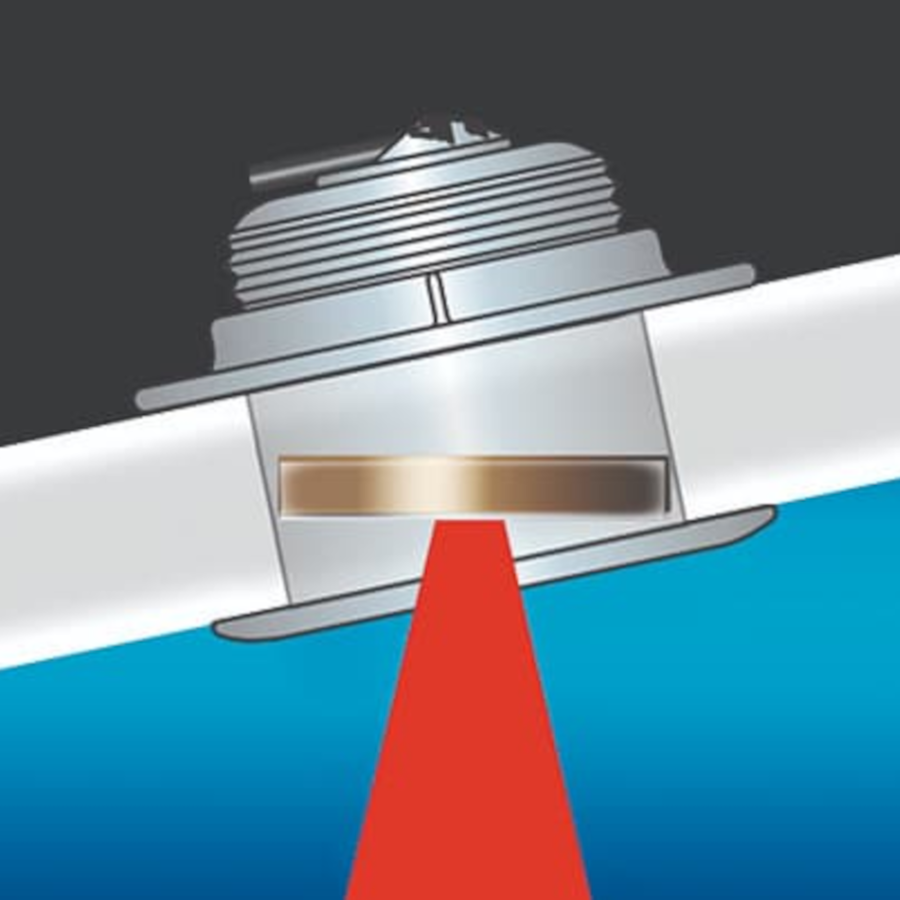

The Airmar SS175C-12-MW Medium Ultra-Wide Tilted Element™ Thru-Hull Transducer sets a new standard in marine sonar technology. Engineered for superior mid-depth performance, this 1 kW transducer delivers outstanding fish-target separation and bottom tracking with its 60-100 kHz medium-frequency range. Designed for boats with an 8° to 15° hull deadrise, its 12° tilted element ensures accurate sonar returns by orienting the ceramic element vertically. This results in a highly detailed view of the underwater environment, making it a powerful tool for anglers targeting pelagic species in the upper water column.
High-Performance Specifications for Precision and Reliability
Built with stainless steel housing for durability in all hull materials, the SS175MW is designed for vessels up to 36 feet in length. It supports depth readings up to 400 meters (1,300 feet) and features a fast-response water temperature sensor for real-time monitoring. The transducer’s ultra-wide beamwidth of 57° to 73° (port/starboard) and 16° average (fore/aft) provides an expansive underwater coverage area, significantly improving fish detection and bottom structure imaging.
Compact and Efficient Low-Profile Design
The SS175MW’s low-profile, thru-hull design minimizes drag and allows for stable sonar readings, even at higher speeds. Its innovative Tilted Element™ construction compensates for hull deadrise, ensuring optimal signal return and clear imaging. With a single-band CHIRP-ready configuration, this transducer offers 40 kHz of total bandwidth, enhancing target resolution and sonar performance.
Technical Specifications
- Power Rating: 1 kW
- Frequency Range: 60-100 kHz (Medium CHIRP)
- Beamwidth: 57° to 73° (port/starboard) x 16° average (fore/aft)
- Max Depth Capability: 400 m (1,300')
- Mounting Style: Tilted Element Thru-Hull
- Housing Material: Stainless Steel
- Acoustic Window: Urethane
- Cable Length: 9 m (30')
- Max Vessel Length: Up to 11 m (36')
- Hole Size: 95 mm (3-3/4")
- Operating Temperature: -10° to 40°C (14° to 104°F)
- Weight: 2.7 kg (6 lb.)
Key Features and Benefits
- Medium-frequency CHIRP technology provides excellent fish-target separation.
- Ultra-wide beamwidth expands sonar coverage for superior underwater imaging.
- Low-profile thru-hull design reduces drag and maintains clear readings at speed.
- Integrated fast-response water temperature sensor enhances real-time monitoring.
- Durable stainless steel housing ensures long-lasting performance in all hull materials.
- Compatible with multiple marine electronics through Mix-n-Match connector options.
Available Variants for Seamless Integration
The SS175MW is available in multiple configurations to ensure compatibility with leading marine electronics manufacturers. Variants differ based on connector type:
- SS175C-12-MW-MM – Airmar 12-Pin
- SS175C-12-MW-0 – Bare Wire
- SS175C-12-MW-10F – Furuno 10-Pin
- SS175C-12-MW-12F – Furuno 12-Pin
- SS175C-12-MW-12G – Garmin 12-Pin
- SS175C-12-MW-8G – Garmin 6-Pin
- SS175C-12-MW-14HB – Humminbird 14-Pin
- SS175C-12-MW-21HB – Humminbird 21-Pin
- SS175C-12-MW-HB – Humminbird 9-Pin
- SS175C-12-MW-11R – Raymarine 11-Pin
For anglers and marine professionals seeking an advanced sonar solution, the Airmar SS175MW delivers unmatched precision, durability, and performance in a streamlined package.
