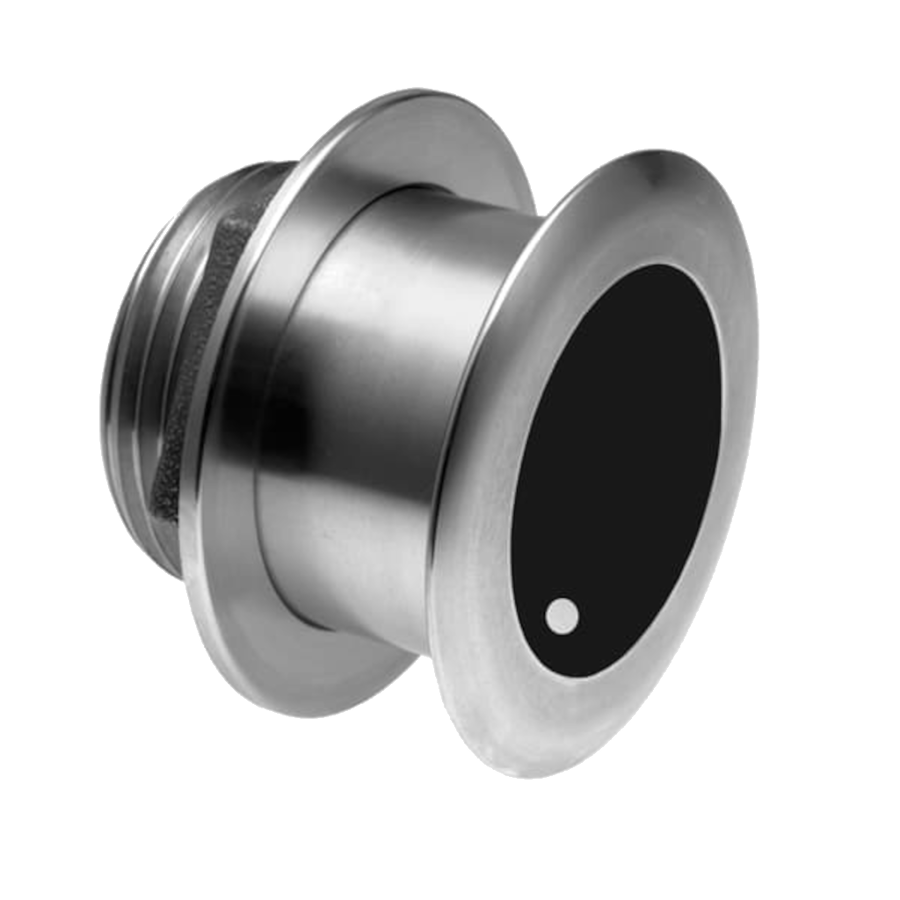

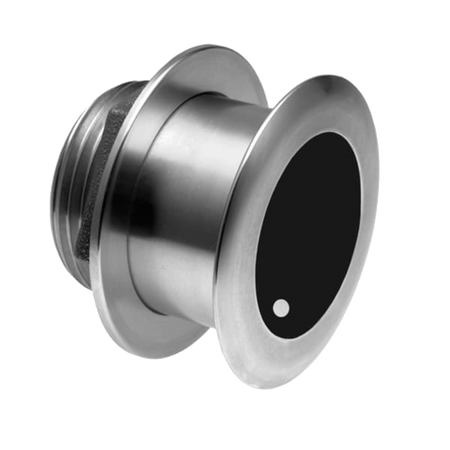

Airmar - SS175C-12-M 12d Tilt Medium CHIRP Transducer
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
High-Performance CHIRP Technology for Superior Marine Imaging
The Airmar SS175C-12-M 12d Tilt Medium CHIRP Transducer is designed for serious anglers and marine professionals seeking advanced sonar capabilities. This transducer provides exceptional bottom detection, covering depths of up to 3,000 meters (10,000 feet) with outstanding clarity and detail. Its medium CHIRP range operates between 85 kHz and 135 kHz, offering a 16° to 11° beamwidth, ensuring precise imaging of baitfish, game fish, and underwater structures.
Built for durability, the steel transducer housing is ideal for vessels up to 11 meters (36 feet) in length and is specifically designed for steel or aluminum hulls. Airmar’s exclusive Xducer ID® technology optimizes performance by automatically configuring the transducer to compatible sonar systems, enhancing ease of use and efficiency.
With 50 kHz of total bandwidth, this transducer covers key fishing frequencies of 88 and 107 kHz, delivering superior fish-targeting capabilities and maximizing your success on the water.
Advanced Technical Specifications
- CHIRP Frequency Range: 85 kHz to 135 kHz
- Beamwidth: 16° to 11°
- Bandwidth: 50 kHz total
- Maximum Depth Detection: Up to 3,000 m (10,000 ft)
- Boat Compatibility: Up to 11 m (36’)
- Hull Type: Steel or aluminum
- Exclusive Technology: Xducer ID® for optimized performance
Durable and Efficient Design
- Hull Deadrise Compatibility: 8° to 15°
- Acoustic Window Material: Urethane
- Weight: 2.7 kg (6 lb)
Available Variations
The Airmar SS175C-12-M transducer is available in multiple connector options to ensure compatibility with different marine electronics systems:
- SS175C-12-L-MM – Airmar 12-Pin Connector
- SS175C-12-L-0 – Bare Wire Connector
- SS175C-12-L-12G – Garmin 12-Pin Connector
- SS175C-12-L-14HB – Humminbird 14-Pin Connector
- SS175C-12-L-HB – Humminbird 9-Pin Connector
- SS175C-12-L-11R – Raymarine 11-Pin Connector
- SS175C-12-L-9N – Simrad 9-Pin Connector
- SS175C-12-L-BB – Standard Horizon 9-Pin Connector
For anglers, charter captains, and commercial fishing professionals, the Airmar SS175C-12-M offers an exceptional balance of performance, durability, and precision, making it an essential addition to any marine navigation system.
