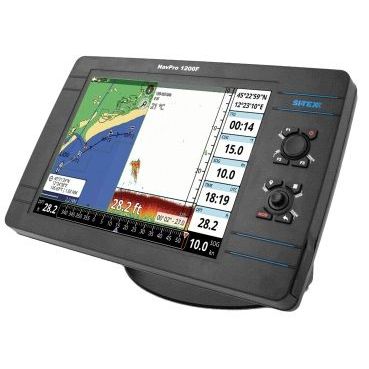

SI-TEX - NAVPRO1200F 12" Combo Plotter
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
High-Resolution Hybrid Touchscreen Display
The Sitex NAVPRO1200F is equipped with a 12-inch high-resolution hybrid touch screen display, offering a clear and intuitive user interface. With a brightness level of 1250 NITS, it ensures excellent visibility even under direct sunlight, making it an essential tool for marine navigation.
Versatile Mounting and Installation Options
Designed for easy installation, the NAVPRO1200F features a heavy-duty yoke mount suitable for both bulkhead and overhead mounting. It also allows for a seamless flush mount without requiring any special kits, providing flexibility for different vessel configurations.
Seamless Connectivity and Data Integration
The NAVPRO1200F supports both NMEA-0183 and NMEA2000 interfacing, ensuring compatibility with various onboard systems. Its built-in Wi-Fi interface enables automatic software updates and seamless cloud-based data backup through Captain Cloud, keeping your waypoints, marks, events, and track memories secure and accessible.
Innovative CHIRP Sounder Technology
With selectable CHIRP sounder outputs of 300W, 600W, and 1kW, the NAVPRO1200F delivers exceptional sonar performance. It is compatible with Airmar CHIRP transducers with TX ID for automatic setup and can also be adapted for use with older non-CHIRP transducers, offering a cost-effective upgrade path.
Enhanced GPS and AIS Capabilities
Equipped with an internal high-resolution 18Hz, 72-channel GPS receiver and antenna, the NAVPRO1200F ensures precise positioning and navigation. Full AIS integration is available when interfaced with an AIS unit, enhancing situational awareness and safety on the water.
Wireless Radar Integration for Maximum Awareness
The NAVPRO1200F supports optional high-resolution Wi-Fi radar, allowing boaters to wirelessly sync the SI-TEX MDS-12 Network Radome. This setup enables powerful 36-nm range radar capabilities with exceptional target resolution. Overlaying radar targets onto Polaris Charts enhances navigation, even in challenging conditions.
Polaris and Navionics Platinum+ Chart Compatibility
In addition to the included Polaris Charts, the NAVPRO1200F is fully compatible with optional Navionics Platinum+ cartography, giving users access to high-detail marine charts for enhanced navigation and route planning.
Technical Specifications
- Display Size: 12.0” high-resolution hybrid touchscreen
- Display Brightness: 1250 NITS
- Resolution: 1024x768
- Touchscreen Type: Capacitive multi-touch
- Waterproof Rating: IPX6
- GPS Receiver: Built-in high-resolution 18Hz 72-channel GPS/GLONASS
- External GPS Option: Yes, via a 6-pin connector
- Network Connections: NMEA-2000 (optional cable required), dual NMEA-0183 input/output ports
- Wireless Connectivity: Wi-Fi and Bluetooth
- Operating Temperature Range: -10°C to +60°C
- Input Voltage: 10 to 35 VDC

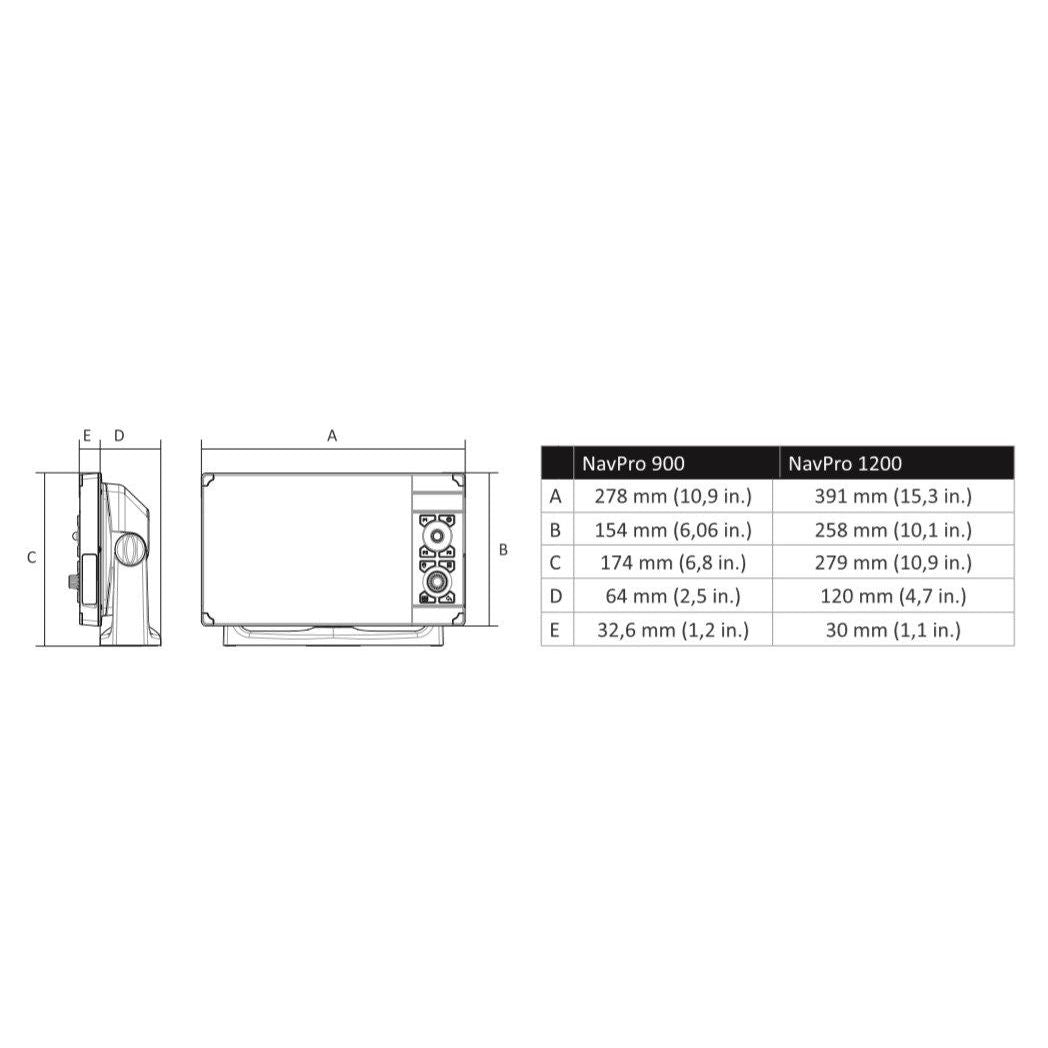

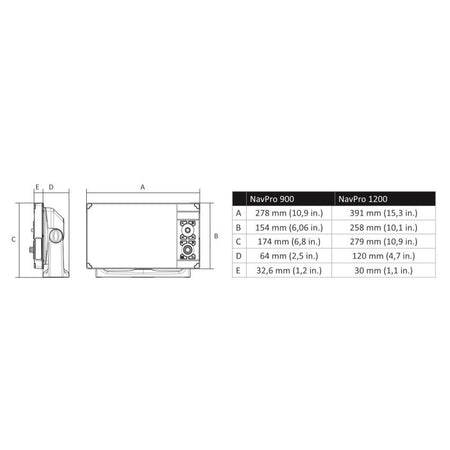

- Dimensions: 15.3" W x 10.9" H x 5.8" D
- Warranty: 2 years
What's in the Box
- NAVPRO1200F Display Unit
- Polaris USA Chart Card
- Mounting Bracket
- Mounting Screws
- Combination Power/Data Cord
The Sitex NAVPRO1200F is a feature-rich, high-performance marine navigation solution designed to provide precision, reliability, and ease of use. Whether for recreational or professional use, this advanced multifunction display ensures a seamless and efficient navigation experience.
