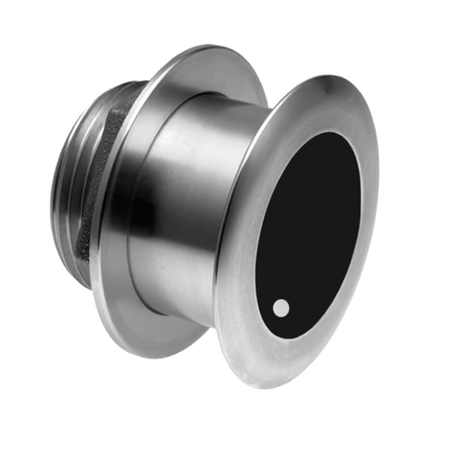

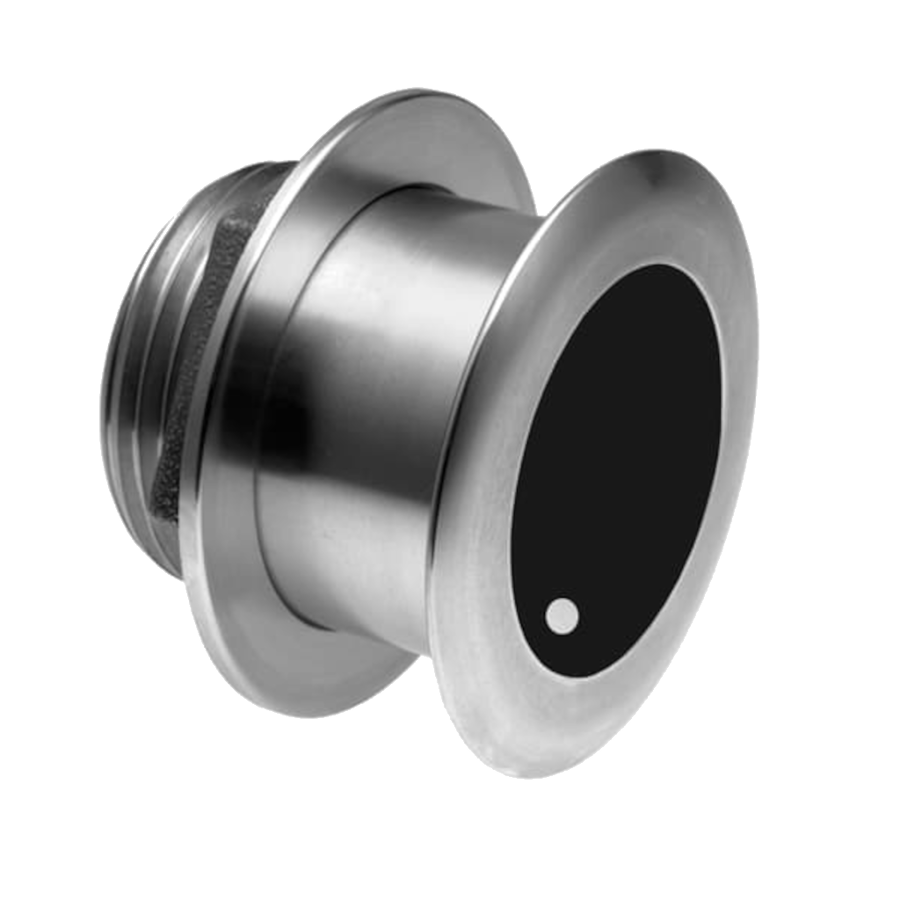

Airmar - SS175C-0-H 0d Tilt High CHIRP Transducer

High-Performance CHIRP Sonar for Superior Marine Detection

Airmar’s SS175C-0-H 0° Tilt High CHIRP Transducer is designed for anglers and marine professionals seeking precision sonar imaging. Featuring CHIRP technology, this transducer delivers exceptional target separation, enabling users to distinguish individual fish and underwater structures with clarity. The stainless-steel housing ensures durability in demanding marine environments, while the fast-response temperature sensor enhances real-time performance. Ideal for boats up to 36 feet (11 meters) and compatible with steel or aluminum hulls, this transducer is an essential tool for serious offshore navigation and fishing.

Advanced CHIRP Technology for Maximum Clarity

Operating within a high-frequency CHIRP range of 130 kHz to 210 kHz, the SS175C-0-H transducer provides 80 kHz of total bandwidth. This broad frequency range results in superior depth penetration and resolution, reaching depths of up to 3,000 meters (10,000 feet). With a beamwidth that adjusts from 15° to 9°, this transducer captures detailed sonar imagery, making it easier to detect baitfish, game fish, and bottom structures with precision.

Rugged and Reliable Marine Construction

The SS175C-0-H is built with a robust stainless-steel housing, ensuring long-lasting durability in marine environments. Designed for thru-hull installation, it is specifically suited for vessels with a 0° to 7° hull deadrise. The transducer’s urethane acoustic window enhances sonar signal transmission while withstanding harsh conditions at sea.

Technical Specifications

• CHIRP Frequency Range: 130 kHz to 210 kHz
• Beamwidth: 15° to 9°
• Hull Compatibility: Steel or aluminum
• Maximum Depth Detection: Up to 3,000 m (10,000 ft)
• Boat Size Compatibility: Up to 11 m (36 ft)
• Housing Material: Stainless steel
• Hull Deadrise Compatibility: 0° to 7°
• Acoustic Window Material: Urethane
• Weight: 2.7 kg (6 lb)

Key Benefits and Features

• High CHIRP Technology: Provides precise target separation and detailed underwater imaging
• Wide Bandwidth Coverage: 80 kHz total bandwidth in a single installation
• Durable Stainless-Steel Housing: Designed for longevity in tough marine conditions
• Fast-Response Temperature Sensor: Enhances real-time fishing and navigation accuracy

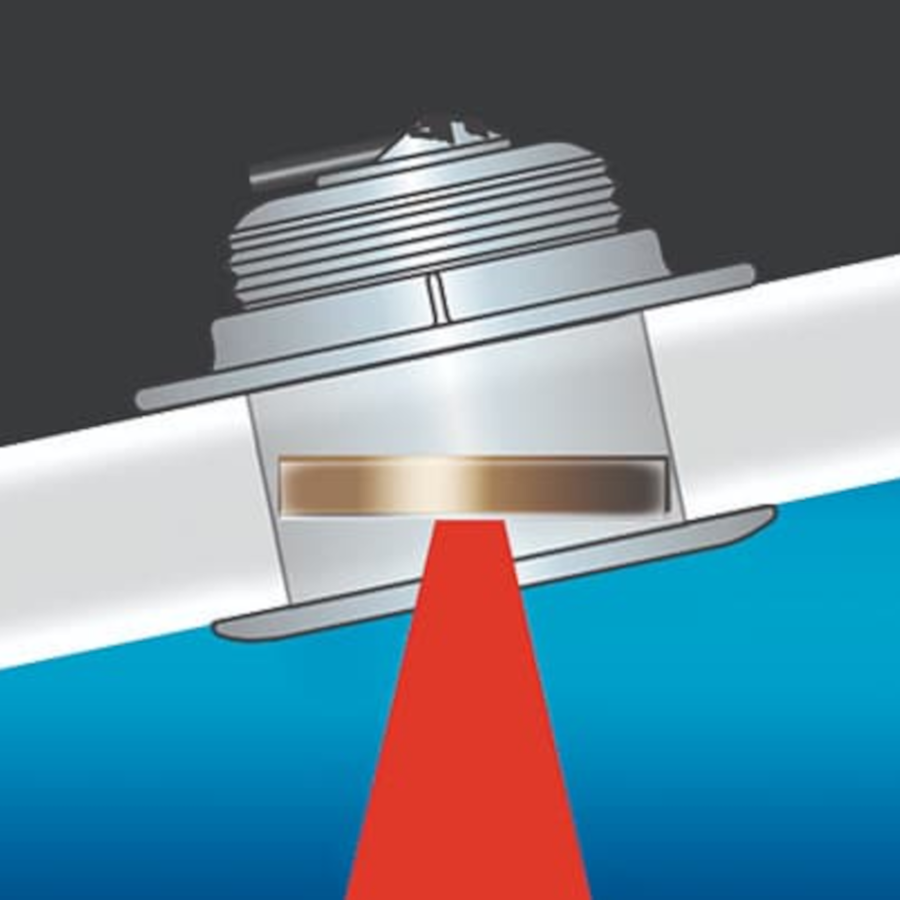

• Tilted Element Design: Optimized for different hull configurations with a 0° tilt option
• Xducer ID® Technology: Ensures seamless integration with compatible sonar systems

Available Variations

The SS175C-0-H transducer is available in multiple connector configurations to ensure compatibility with a variety of marine electronics:

• SS175C-0-H-MM – Airmar 12-Pin Connector
• SS175C-0-H-0 – Bare Wire Connector
• SS175C-0-H-12G – Garmin 12-Pin Connector
• SS175C-0-H-8G – Garmin 8-Pin Connector
• SS175C-0-H-14HB – Humminbird 14-Pin Connector
• SS175C-0-H-21HB – Humminbird 21-Pin Connector
• SS175C-0-H-HB – Humminbird 9-Pin Connector
• SS175C-0-H-BL – Lowrance 7-Pin Connector
• SS175C-0-H-11R – Raymarine 11-Pin Connector
• SS175C-0-H-9N – Simrad 9-Pin Connector
• SS175C-0-H-BB – Standard Horizon 9-Pin Connector

With its advanced CHIRP technology and rugged construction, the Airmar SS175C-0-H transducer is an essential addition to any serious marine vessel, providing unmatched sonar performance and reliability for offshore fishing and navigation.
