Airmar - P75C-M In-Hull 600W Medium Frequency Transducer
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
High-Performance In-Hull Transducer for Exceptional Marine Navigation

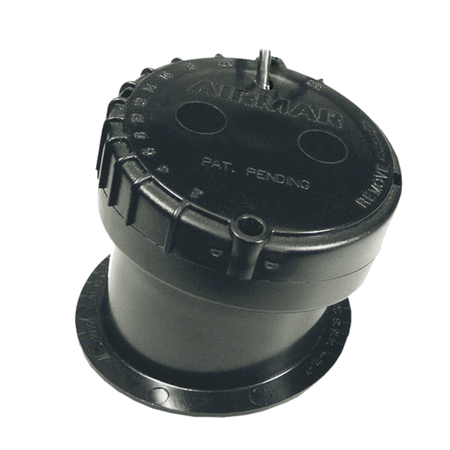

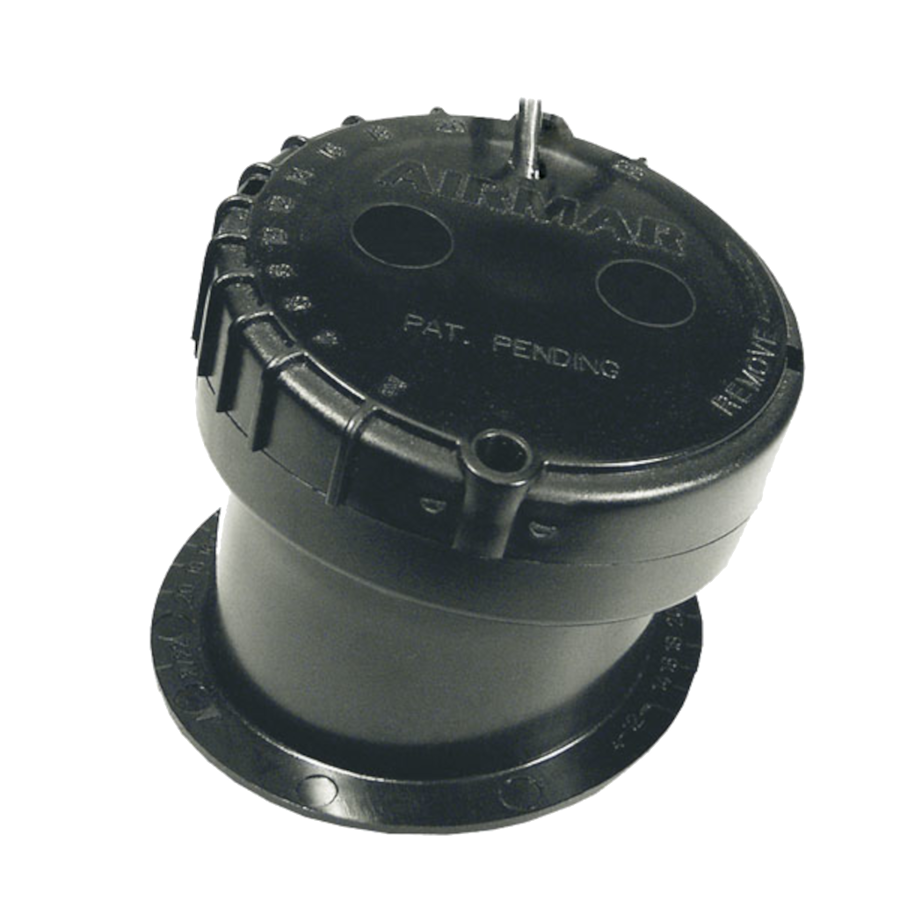

The Airmar P75C-M In-Hull 600W Medium Frequency Transducer is a premium choice for boat owners looking for high-performance sonar capabilities without drilling through the hull. Designed for solid fiberglass hulls, this transducer operates on a Medium CHIRP frequency (80-130kHz), making it ideal for both inshore and offshore use. Its depth-only functionality delivers excellent target definition, ensuring precise readings down to 700 feet (215 meters).
Built with a urethane housing and filled with an eco-friendly antifreeze solution, the P75C-M transducer ensures optimal signal transmission without compromising hull integrity. Whether you're navigating shallow waters or exploring deeper offshore regions, this transducer provides consistent and reliable performance.
This model is particularly well-suited for trailered or lifted boats, as it mounts inside the hull without any external protrusions. Designed for smaller vessels up to 25 feet with solid core fiberglass hulls, it offers a seamless installation process while maintaining superior sonar performance.
Advanced CHIRP Technology for Unmatched Clarity
Equipped with CHIRP-ready technology, the Airmar P75C-M transducer provides superior resolution and target separation by continuously varying the frequency within the 80-130kHz range. The 24° to 16° beamwidth allows for broader coverage and improved accuracy, making it an excellent choice for anglers and boaters seeking detailed underwater imaging.
The exclusive Xducer ID® technology optimizes performance by automatically configuring the sonar system for maximum efficiency. Whether you're scanning reefs, tracking schools of fish, or navigating through complex underwater terrain, this transducer delivers reliable and precise readings.
Key Technical Specifications
- Power Output: 600W
- Depth Capability: Up to 700' (215 meters)
- Beamwidth: 24° to 16°
- Frequency Range: 80-130kHz (Medium CHIRP)
- Housing Material: Urethane (liquid-filled)
- Hull Deadrise Compatibility: 2° to 20°
- Weight: 0.45 kg (1.1 lb)
- Acoustic Window: Urethane
Designed for Easy In-Hull Installation

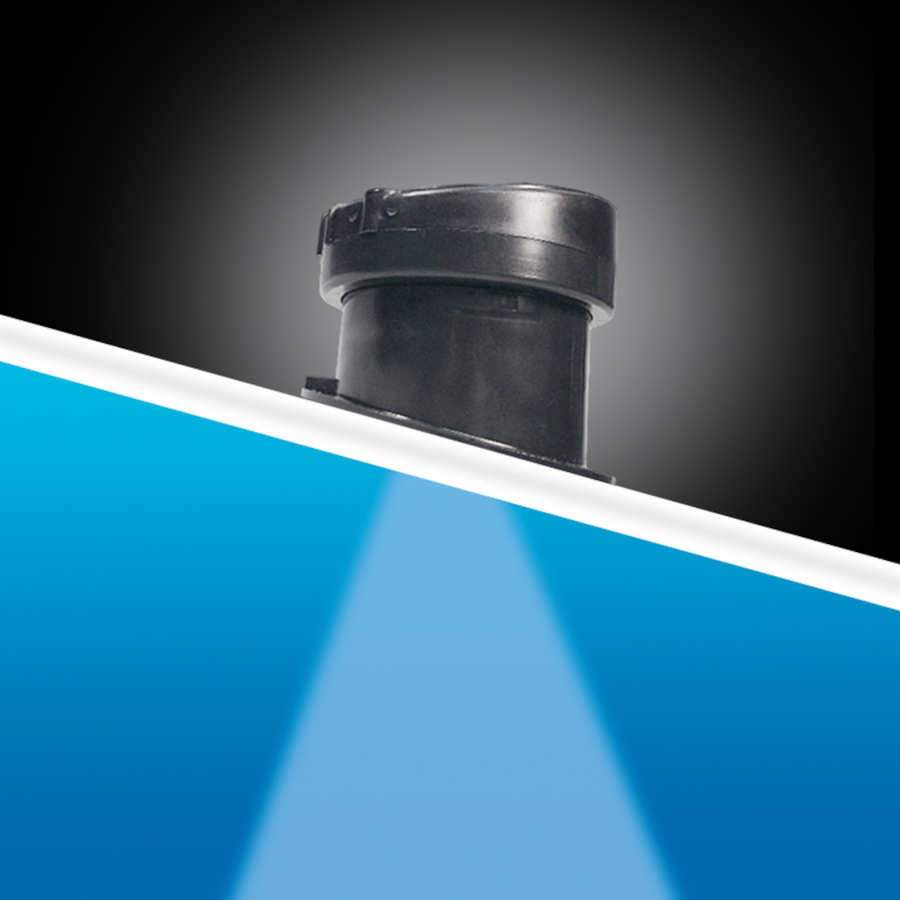

The P75C-M transducer is installed inside the hull, eliminating the need for drilling holes or mounting external components. The included plastic housing is securely fastened inside the hull and filled with liquid, ensuring optimal sound wave transmission through the fiberglass. This design makes it an excellent choice for boats that are frequently trailered or stored out of water, preventing damage from impact or marine growth.
Variants and Connector Options
The Airmar P75C-M transducer is available in multiple configurations, offering compatibility with a wide range of marine electronics. Choose the right connector for your system:
- P75C-M-MM – Airmar 12-Pin Connector
- P75C-M-0 – Bare Wire Connector
- P75C-M-10F – Furuno 10-Pin Connector
- P75C-M-8G – Garmin 8-Pin Connector
- P75C-M-14HB – Humminbird 14-Pin Connector
- P75C-M-HB – Humminbird 9-Pin Connector
- P75C-M-BL – Lowrance 7-Pin Connector
- P75C-M-9N – Simrad 9-Pin Connector
- P75C-M-BB – Standard Horizon 9-Pin Connector
Highlights
- Ideal for boats up to 25' with solid fiberglass hulls
- No hull penetration required – safe and easy installation
- CHIRP-ready for enhanced sonar performance
- Eco-friendly liquid-filled housing for efficient signal transmission
- Perfect for both inshore and offshore use
- Multiple connector options for seamless integration
The Airmar P75C-M In-Hull 600W Medium Frequency Transducer is an excellent solution for boaters who require high-quality sonar performance without modifying their hulls. Its advanced CHIRP technology, wide beam coverage, and seamless installation make it a top choice for marine enthusiasts and professional anglers alike.
