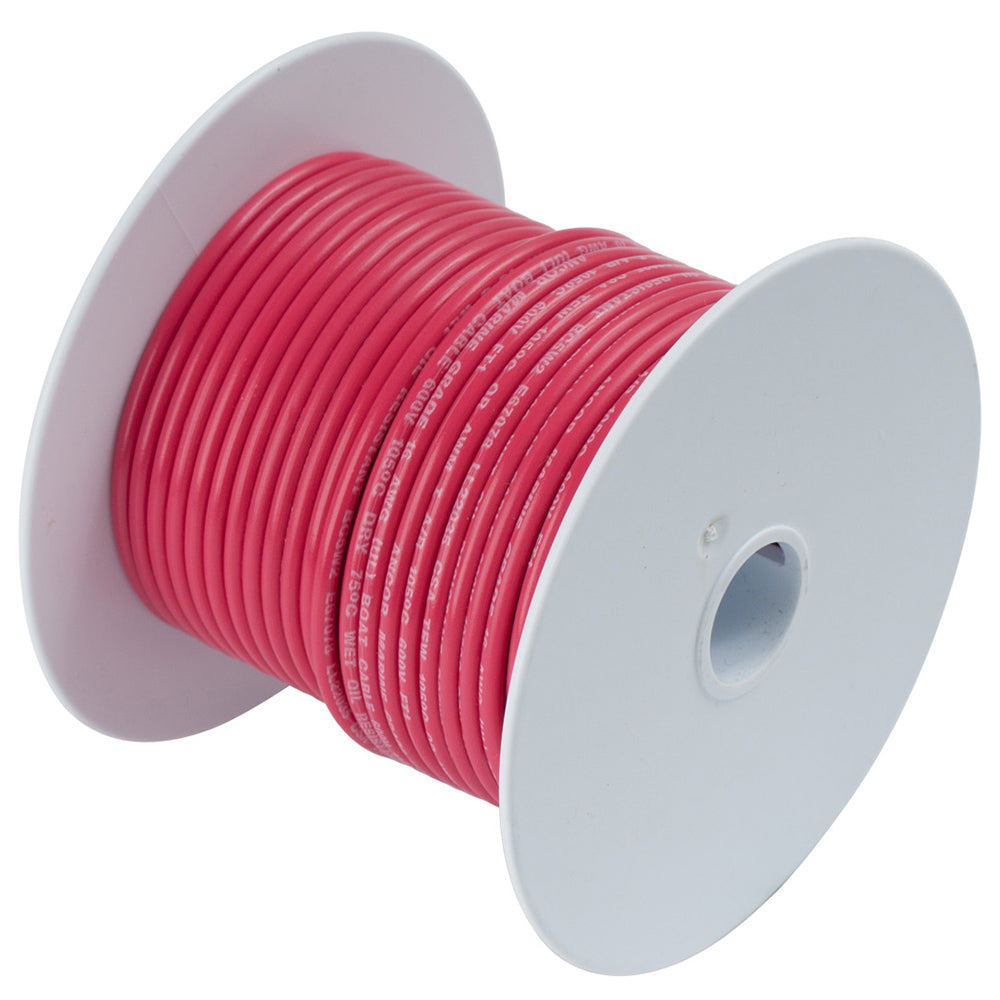

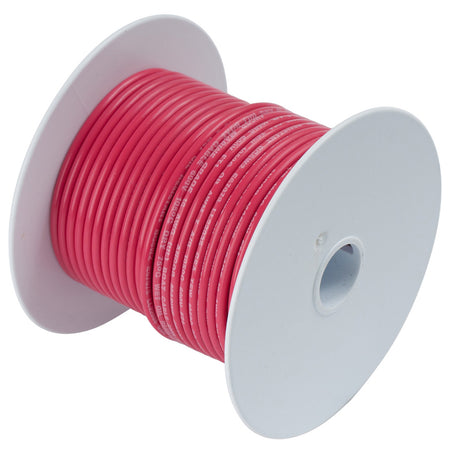

Ancor 100' Red #16 Primary Wire (102810)
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
16 AWG Battery Cable ANCOR Marine Grade wire is made with tinned copper stranding for optimal corrosion and electrolysis resistance. The highly flexible (Type 3) stranding prevents fatigue caused by vibration and flexing. ANCOR's premium vinyl insulation is resistant to seawater, battery acid, oil, gasoline, and UV radiation. Exclusive insulation is heat and abrasion-resistant and rated at 600 volts, 105 degrees dry, and 75 degrees wet. UL 1426, US Coast Guard Charterboat (CFR Title 46), and ABYC standards are all met.
Key Features:
- Individual copper strands are stranded together and tinned to withstand the roughest marine environments.
- Type 3 stranding is ultra-flexible and provides further corrosion protection while resisting vibration fatigue.
- UL 1426, US Coast Guard Charter Boat (CFR title 46), and ABYC standards are all met.
- Stays flexible even when the temperature reaches -40 degrees
- Saltwater, battery acid, oil, gasoline, heat, abrasion, and ultraviolet radiation are all resistant to this material.
Specifications:
- Brand: ANCOR Marine Grade Products
- SKU: 1-102810
- UPC: 091887103663
- Weight: 1.50 LBS
- Color: Red
- Length: 100 feet
- Style: 16-Gauge
MARINE GRADE™ 16 AWG (1MM2) WIRE SPECIFICATIONS
| Nominal O.D. | 1/8" (3.2mm) |
| Wt./1000' | 16 lbs. (7.3 kg) |
| Stranding | 26 of 30 AWG |
| Cir. Mil Area | 2600 |
| Square mm | 1.31 |
| Ohms/1000' | 4 |
This product replaces:
- 639-102810, 91887103663
