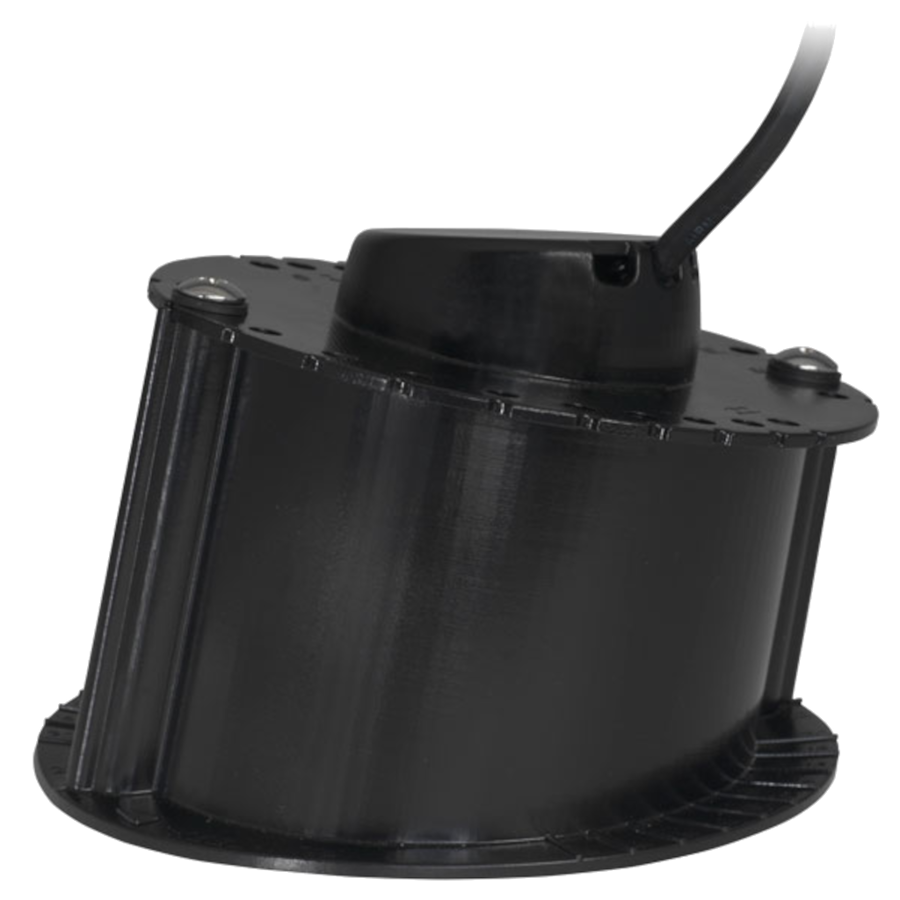

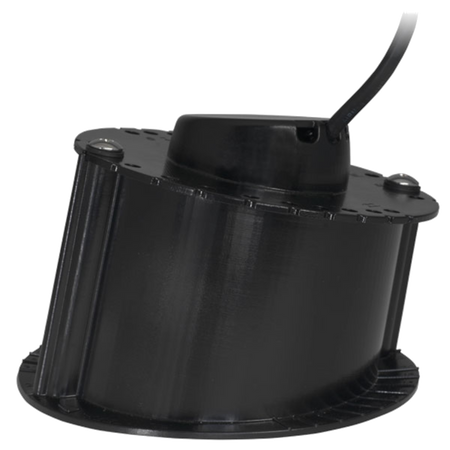

Airmar - M285C-HW CHIRP In-Hull Transducer
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Advanced High-Wide CHIRP Technology for Superior Marine Performance
The Airmar M285C-HW CHIRP In-Hull Transducer is designed for anglers who demand precision and reliability in both offshore and inshore waters. With a high-frequency CHIRP range of 150-250 kHz and a 25-degree fixed beamwidth, this transducer delivers exceptional target resolution, making it ideal for detecting fish and underwater structures in depths up to 700 feet. Whether you’re fishing in freshwater or saltwater, its powerful 1 kW output ensures superior clarity and depth penetration.
The in-hull installation provides a sleek, low-maintenance solution, eliminating any external protrusions on the boat’s hull. This makes it perfect for trailered or lifted boats, particularly those up to 25 feet with solid-core fiberglass hulls. The transducer sits inside a liquid-filled urethane housing, ensuring optimal signal transmission through fiberglass while maintaining a streamlined exterior.
Precision CHIRP Technology for Clearer Imaging
Equipped with high-wide CHIRP technology, the M285C-HW enhances target separation and detail in shallow to medium depths. Its advanced signal processing provides sharper images of fish schools and bottom structures, making it an essential tool for serious anglers.
Rugged and Reliable In-Hull Installation

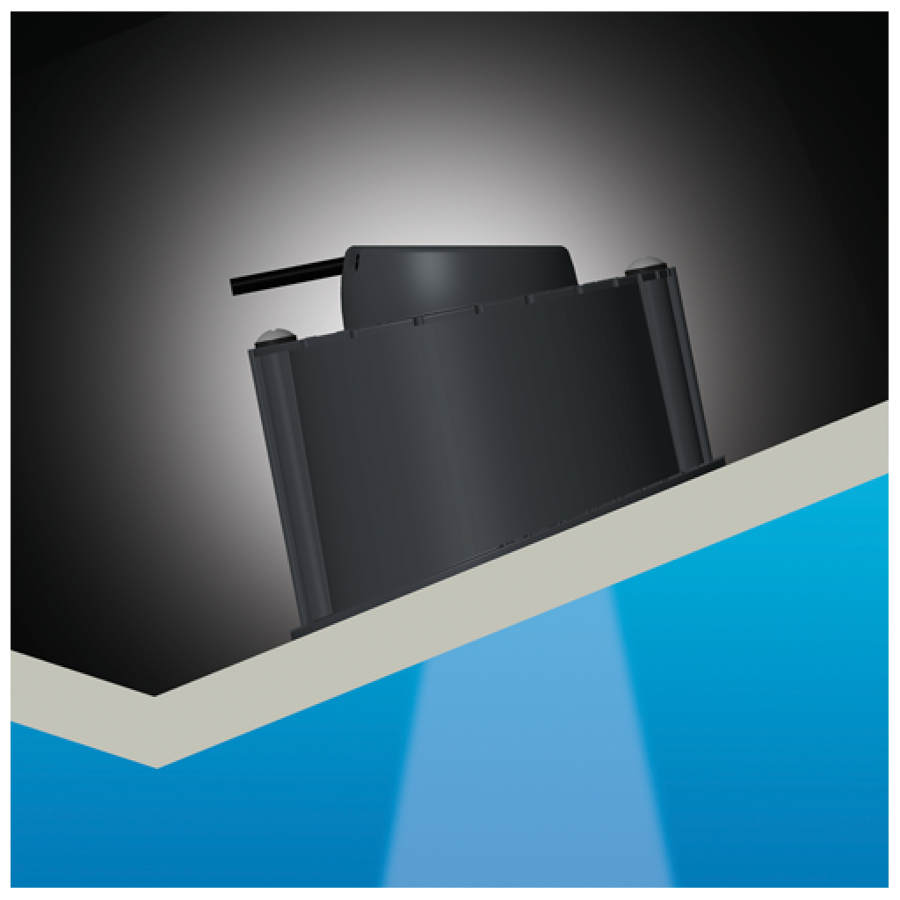

The M285C-HW features a urethane housing filled with eco-friendly anti-freeze, providing a durable and effective medium for signal transmission. The transducer is inserted into the housing and adjusted for the correct dead rise offset, ensuring the beam is directed straight down for optimal performance.
Technical Specifications
- CHIRP Frequency Range: 150-250 kHz
- Power Output: 1 kW
- Beamwidth: 25° fixed
- Depth Range: Up to 700 feet (215 meters)
- Hull Deadrise Compatibility: Adjustable from 2° to 20°
- Acoustic Window Material: Urethane
Ideal for a Wide Range of Boats
The M285C-HW is specifically designed for smaller boats up to 25 feet with solid-core fiberglass hulls. It provides a highly effective alternative to through-hull or transom-mounted transducers, particularly for boats that are frequently trailered or lifted.
Key Features at a Glance
- High-wide CHIRP technology for superior target separation and clarity
- Depth-only transducer optimized for offshore and inshore fishing
- 1 kW power output for reliable performance in various water conditions
- Fixed 25° beamwidth for consistent coverage
- In-hull installation eliminates external protrusions on the hull
- Urethane housing with liquid-filled cavity for optimal signal transmission
- Compatible with multiple marine electronics systems
Available Variants
The Airmar M285C-HW is available in multiple configurations to suit different marine electronics systems:
- M285C-HW-MM – Connector Airmar 12-Pin
- M285C-HW-0 – Connector Bare Wire
- M285C-HW-12G – Connector Garmin 12-Pin
- M285C-HW-8G – Connector Garmin 8-Pin
- M285C-HW-14HB – Connector Humminbird 14-Pin
- M285C-HW-HB – Connector Humminbird 9-Pin
- M285C-HW-BL – Connector Lowrance 7-Pin
- M285C-HW-11R – Connector Raymarine 11-Pin
- M285C-HW-9N – Connector Simrad 9-Pin
The Airmar M285C-HW CHIRP In-Hull Transducer is a top choice for anglers seeking high-resolution sonar performance with a seamless and durable installation. Designed for versatility and precision, it offers an advanced solution for navigating and fishing in a variety of marine environments.
