Airmar - M135C-M Transducer Medium CHIRP Transducer
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Advanced CHIRP Technology for Superior Marine Performance
The Airmar M135C-M Transducer is designed for serious offshore and freshwater anglers looking for high-performance sonar technology. This 1 kW transducer operates within the medium CHIRP frequency range of 85-135 kHz, providing exceptional target resolution and clarity in both shallow and medium-depth waters. With a depth capability of up to 1,500 feet (457 meters), it is perfect for navigating murky or coastal waters with precision.

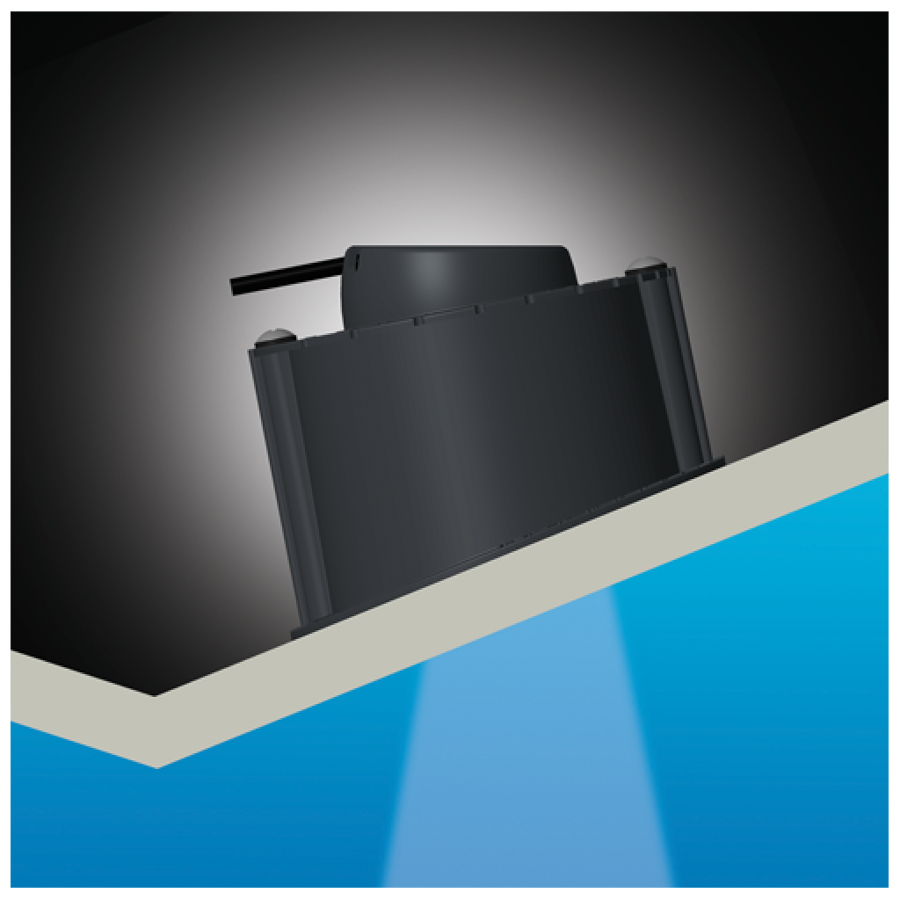

Its innovative in-hull design eliminates any protrusions on the boat's exterior, making it an ideal choice for trailered or lifted boats. This transducer is optimized for solid core fiberglass hulls on boats up to 25 feet. Featuring Airmar’s exclusive Xducer ID® technology, it seamlessly integrates with compatible marine electronics for accurate performance adjustments.
Precision Engineering for Maximum Sonar Clarity

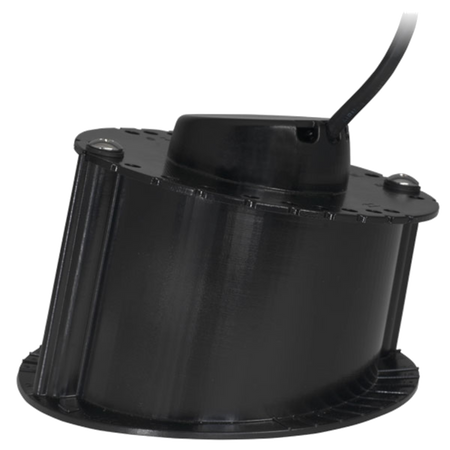

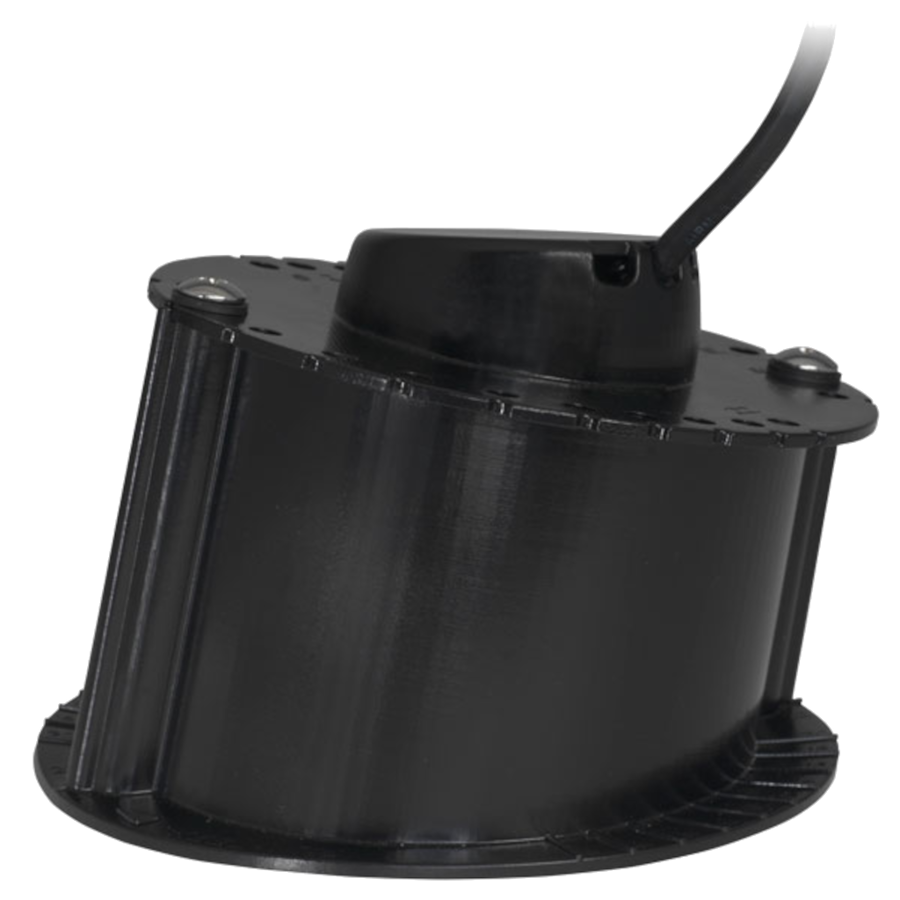

The M135C-M transducer utilizes an advanced urethane housing that is filled with eco-friendly antifreeze, ensuring optimal sound transmission through fiberglass hulls. The plastic mounting flange allows for secure placement and an adjustable dead rise offset between 2° and 20°, ensuring the sonar beam is properly aligned for accurate readings.
Technical Specifications
- Power: 1 kW
- Frequency Range: 85-135 kHz (Medium CHIRP)
- Beamwidth: 16° to 11°
- Maximum Depth: 1,500 feet (457 meters)
- Housing Material: Urethane
- Weight: 9.17 lb (4.16 kg)
- Transducer Element: One broadband ceramic assembly
- Hull Deadrise Compatibility: Adjustable from 2° to 20°

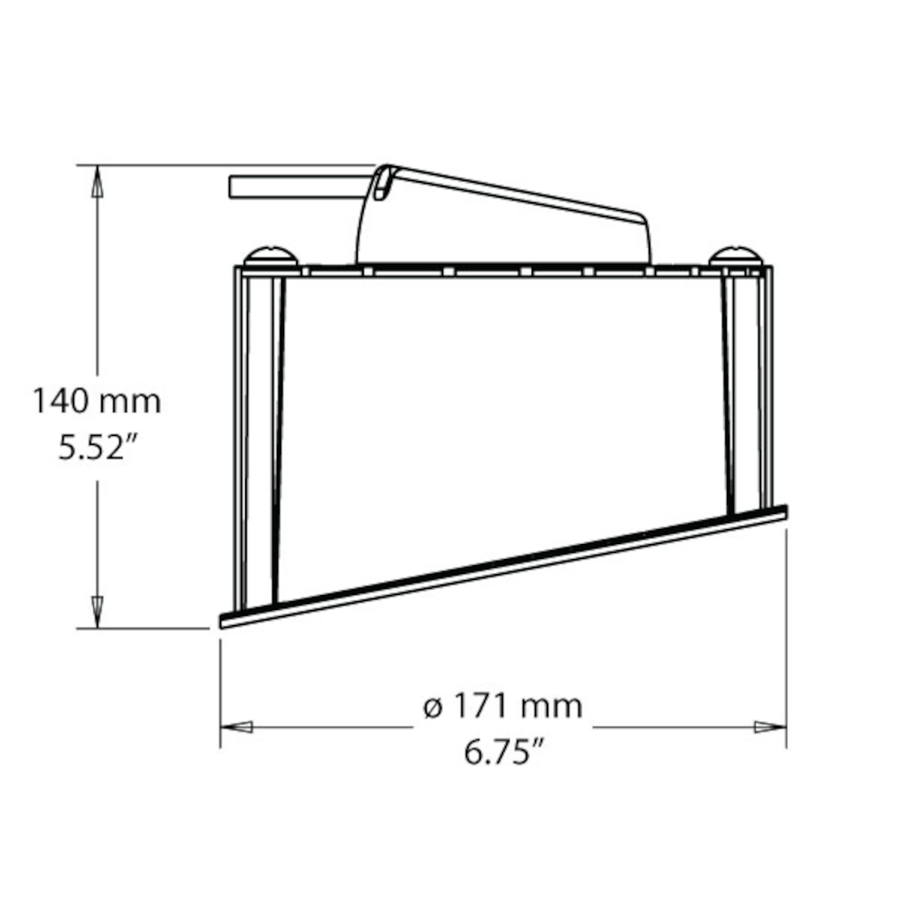

Product Dimensions
- Weight: 9.17 lb (4.16 kg)
- Acoustic Window: Urethane
- Installation Method: In-hull mount
Key Features and Benefits
- Optimized for Offshore and Freshwater Fishing – High-resolution sonar imaging for enhanced target separation in murky and coastal waters.
- In-Hull Mounting for Streamlined Design – No external protrusions, making it perfect for trailered and lifted boats.
- Medium CHIRP Technology – Offers superior resolution at medium depths up to 1,500 feet.
- Adjustable Mounting Configuration – Can be fine-tuned for an accurate sonar beam angle.
- Xducer ID® Technology – Seamlessly integrates with compatible marine electronics.
Available Variations
The Airmar M135C-M Transducer is available in multiple connector options to ensure compatibility with a wide range of marine electronics:
- M135C-M-MM – Connector Airmar 12-Pin
- M135C-M-0 – Connector Bare Wire
- M135C-M-10F – Connector Furuno 10-Pin
- M135C-M-12G – Connector Garmin 12-Pin
- M135C-M-8G – Connector Garmin 8-Pin
- M135C-M-14HB – Connector Humminbird 14-Pin
- M135C-M-HB – Connector Humminbird 9-Pin
- M135C-M-BL – Connector Lowrance 7-Pin
- M135C-M-11R – Connector Raymarine 11-Pin
- M135C-M-9N – Connector Simrad 9-Pin
- M135C-M-BB – Connector Standard Horizon 9-Pin
The Airmar M135C-M is the perfect choice for boat owners looking to upgrade their sonar capabilities with a powerful and efficient in-hull transducer. Its high-performance CHIRP technology, durable design, and multiple connectivity options make it a versatile solution for both offshore and inshore fishing.
