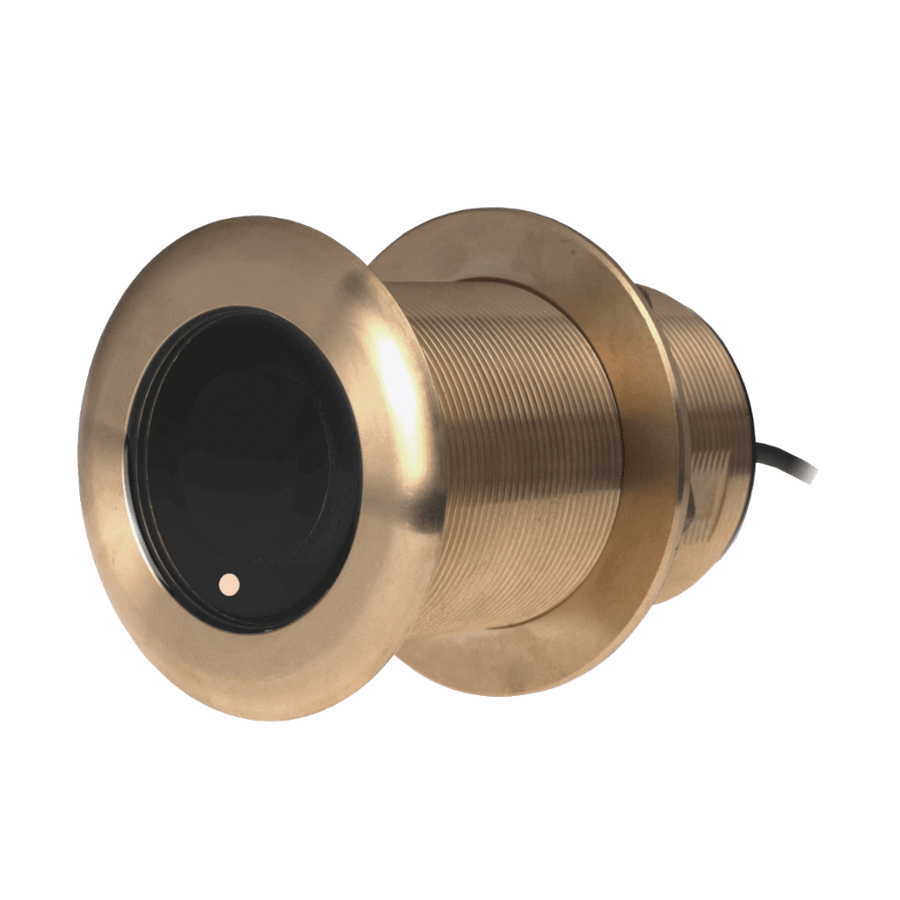

Airmar - B75C-12-M 12d Tilt Medium CHIRP Transducer
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Advanced CHIRP Technology for Superior Marine Navigation
The Airmar B75C-12-M 12d Tilt Medium CHIRP Transducer is a high-performance sonar device designed for enhanced depth readings and temperature sensing. Engineered for installation on fiberglass or wooden hulls, this transducer operates within a medium-frequency range of 80 kHz to 130 kHz, providing exceptional clarity and target separation. With its low-profile design, the B75C-12-M ensures minimal drag, making it an excellent choice for center consoles and smaller vessels up to 8 meters (25 feet) in length.

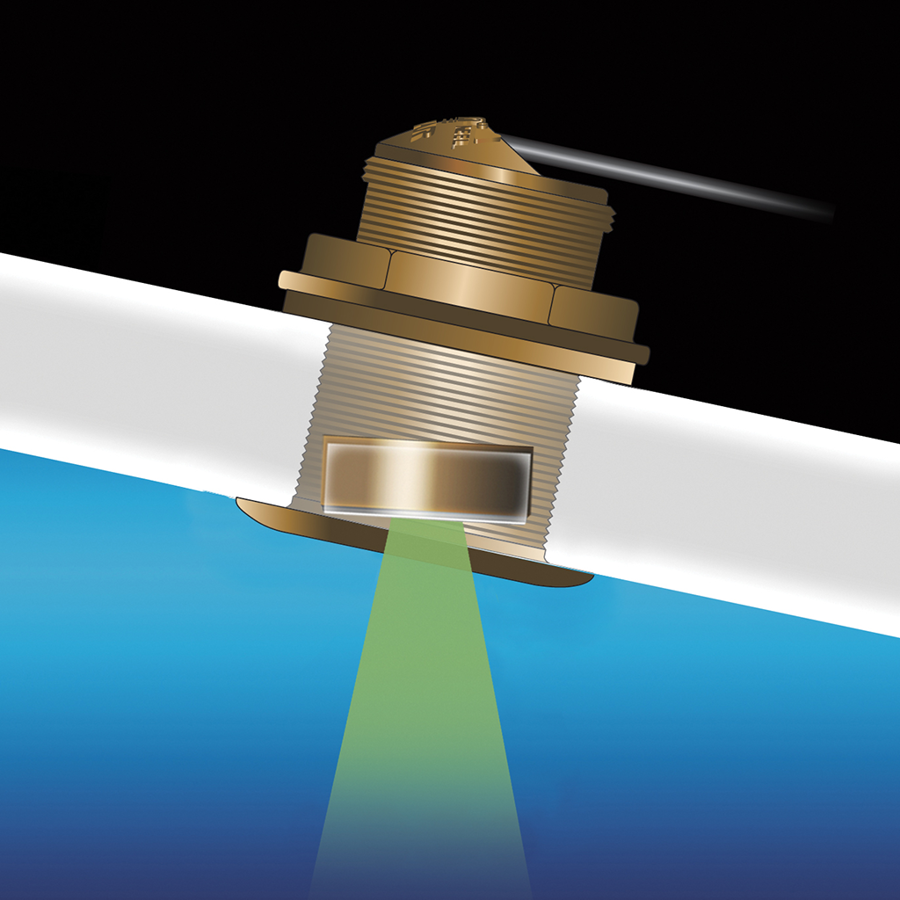

Its innovative 12-degree tilt compensates for hull deadrise, allowing the sonar beam to be directed straight downward for more accurate depth readings. This transducer is ideal for fishing enthusiasts, covering popular frequencies of 88 kHz and 107 kHz, along with a total 50 kHz bandwidth, offering remarkable bottom detail in depths up to 274 meters (900 feet).
Technical Specifications
- Frequency Band: Medium CHIRP (80 to 130 kHz)
- Power Rating: 600 W
- Beam Width: 24° to 16°
- Transducer Functions: Depth & Temperature
- Maximum Depth: 274 m (900')
- Deadrise Range: 8° to 15°
- Tilt Angle: 12°
- Housing Material: Bronze
- Retractable Housing: No
Product Dimensions
- Cable Length: 9 m (30')
- Hole Size: 70 mm (2-13/16")
Highlights
- High-resolution CHIRP sonar for improved target separation and detail
- Covers popular fishing frequencies, including 88 kHz and 107 kHz
- Designed for fiberglass and wooden hulls
- Low-profile, flush-mounted design minimizes drag
- 12° tilt compensates for hull deadrise to optimize sonar performance
- Exclusive Xducer ID® technology for seamless integration with compatible marine electronics
Variations List
The Airmar B75C-12-M 12d Tilt Medium CHIRP Transducer is available with different connector types to ensure compatibility with a range of marine electronics:
- B75C-12-M-MM – Connector Airmar 12-Pin
- B75C-12-M-10F – Connector Furuno 10-Pin
- B75C-12-M-12F – Connector Furuno 12-Pin
- B75C-12-M-12G – Connector Garmin 12-Pin
- B75C-12-M-8G – Connector Garmin 8-Pin
- B75C-12-M-14HB – Connector Humminbird 14-Pin
- B75C-12-M-HB – Connector Humminbird 9-Pin
- B75C-12-M-BL – Connector Lowrance 7-Pin
- B75C-12-M-11R – Connector Raymarine 11-Pin
- B75C-12-M-9N – Connector Simrad 9-Pin
- B75C-12-M-BB – Connector Standard Horizon 9-Pin
This high-performance transducer is built for durability and precision, making it an essential addition for any marine navigation system.
