Airmar - B75C-0-M 0d Tilt Medium CHIRP Transducer
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Advanced Marine Sonar Performance with CHIRP Technology
The Airmar B75C-0-M is a high-performance, thru-hull CHIRP transducer designed for marine enthusiasts who demand superior depth readings and water temperature sensing. Ideal for smaller boats such as center consoles, this transducer operates on a medium-frequency range of 80 to 130 kHz, providing excellent bottom detail and depth penetration. The low-profile, bronze housing ensures durability and efficient sonar returns, making it a great choice for vessels with fiberglass or wood hulls.
Optimized Sonar Clarity and Depth Capability
Equipped with a powerful 600-watt output, the B75C-0-M can reach depths of up to 274 meters (900 feet). The medium-frequency CHIRP technology enhances shallow and mid-depth performance, delivering a clear and precise underwater view. Its 24° to 16° beamwidth ensures a wide sonar coverage area while maintaining excellent target resolution.
Innovative Tilted Element for Accurate Readings

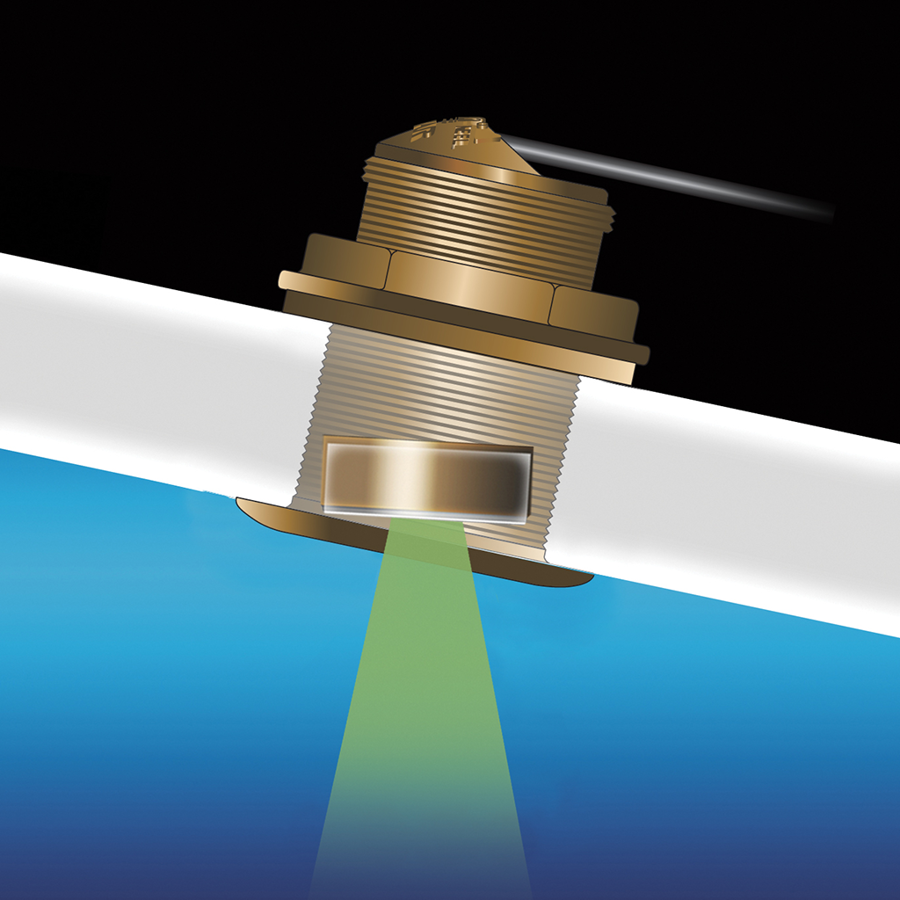

The B75C-0-M features a 0° tilted element, compensating for hull deadrise angles between 0° and 7°. When installed nearly flush with the hull, this design ensures that sonar beams are directed straight down, maximizing signal return and improving depth accuracy.

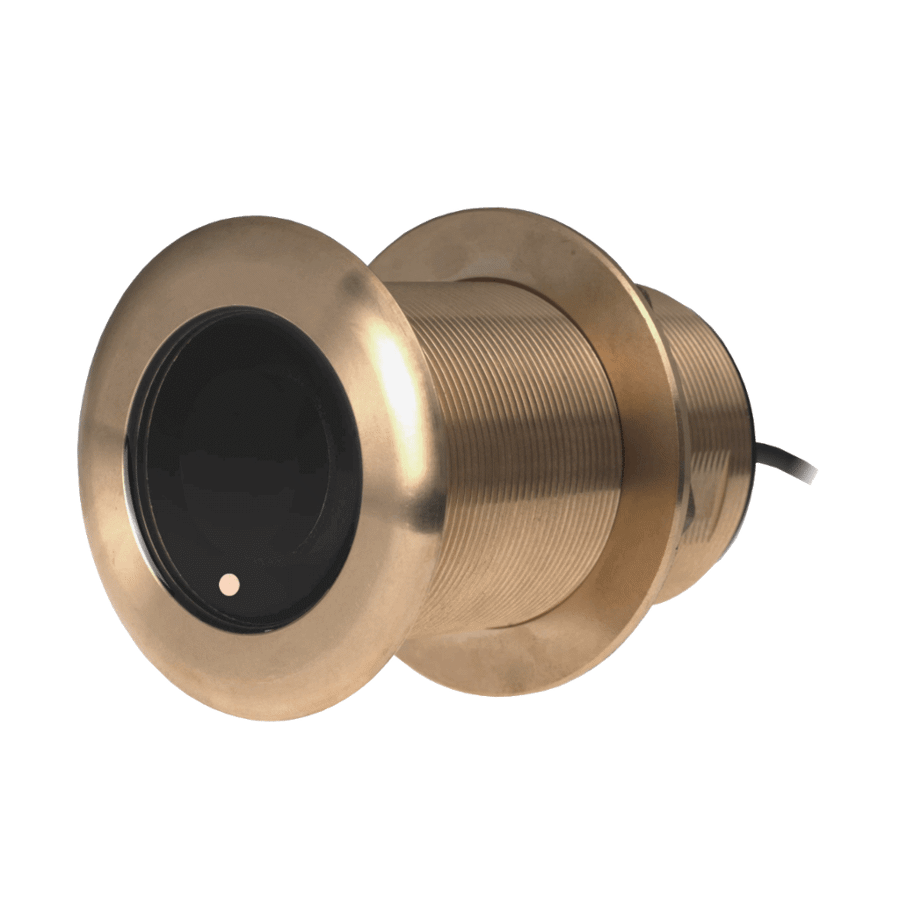

Rugged Bronze Construction for Marine Durability
The transducer’s bronze housing is built for long-term use in harsh marine environments. Its thru-hull installation provides stability and efficient signal transmission, making it a reliable choice for vessels operating in diverse water conditions.
Technical Specifications
- Power Output: 600 W
- Depth Capability: Up to 274 m (900 ft)
- Frequency Range: 80 to 130 kHz (Medium CHIRP)
- Beamwidth: 24° to 16°
- Deadrise Compatibility: 0° to 7°
- Hole Size: 70 mm (2-13/16")
- Housing Material: Bronze
Key Features
- CHIRP technology for superior depth and target separation
- Medium-frequency range enhances shallow and mid-depth performance
- Fast-response water temperature sensor included
- Low-profile, thru-hull installation for minimal drag and better sonar readings
- Xducer ID® technology for seamless transducer recognition
- Ideal for fiberglass and wood hulls
Product Variations
The Airmar B75C-0-M is available in multiple connector configurations to ensure compatibility with different marine electronics systems:
- B75C-0-M-MM – Airmar 12-Pin
- B75C-0-M-0 – Bare Wire
- B75C-0-M-10F – Furuno 10-Pin
- B75C-0-M-12F – Furuno 12-Pin
- B75C-0-M-12G – Garmin 12-Pin
- B75C-0-M-8G – Garmin 8-Pin
- B75C-0-M-14HB – Humminbird 14-Pin
- B75C-0-M-HB – Humminbird 9-Pin
- B75C-0-M-BL – Lowrance 7-Pin
- B75C-0-M-11R – Raymarine 11-Pin
- B75C-0-M-9N – Simrad 9-Pin
- B75C-0-M-BB – Standard Horizon 9-Pin
This transducer is the perfect solution for marine professionals and recreational boaters looking to enhance their sonar capabilities with reliable and high-resolution underwater imaging.
