Advanced CHIRP Performance for Mid to Deep-Water Fishing

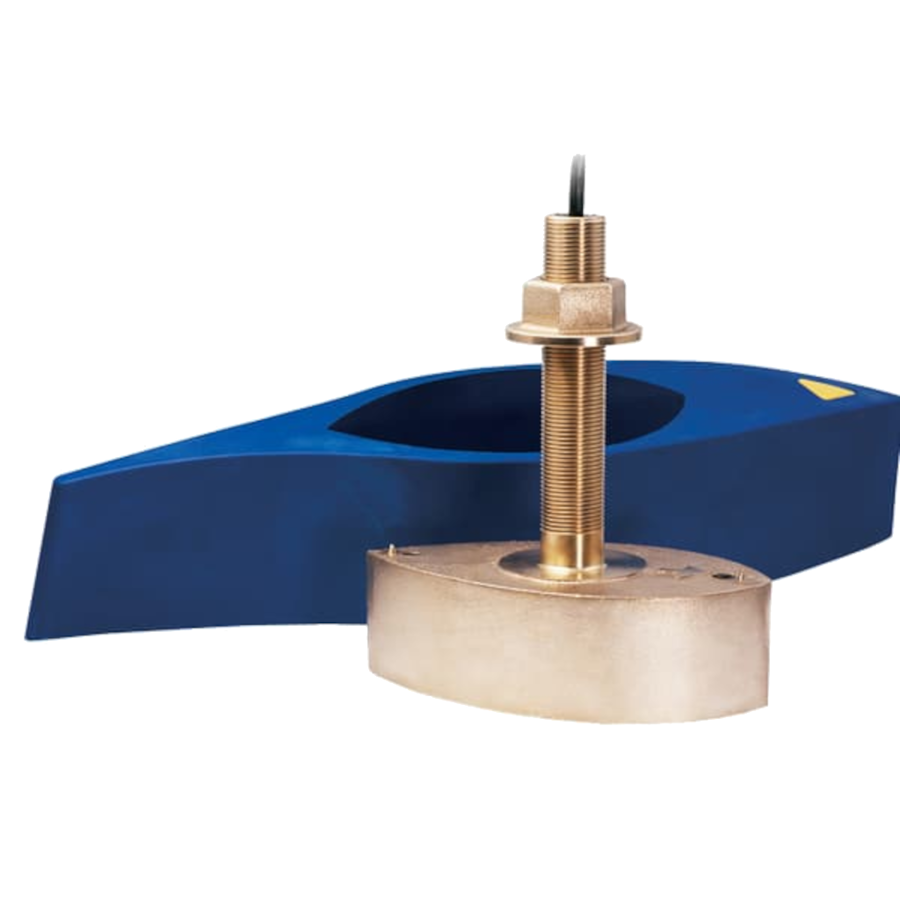

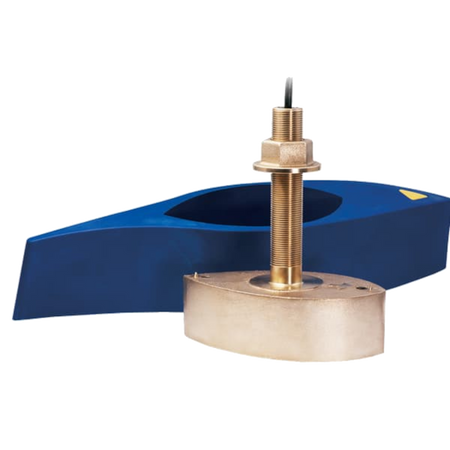

The Airmar B265C-LM Bronze Thru-Hull Transducer is a high-powered, CHIRP-ready solution for marine enthusiasts seeking exceptional target clarity and depth penetration. Designed for professional anglers and serious offshore fishermen, this transducer covers a wide frequency range, making it ideal for locating gamefish and bait in various water conditions. With its robust 1 kW power rating and dual-band CHIRP technology, it delivers outstanding sonar imaging, helping you distinguish between fish species and underwater structures with unparalleled accuracy.
The low-frequency band, ranging from 42 to 65 kHz, provides superior deep-water performance, reaching depths of up to 914 meters (3,000 feet). The medium-frequency band, spanning from 85 to 135 kHz, enhances target resolution, making it easier to detect fish near the bottom and within the water column. Additionally, the included high-performance fairing ensures optimal broadband performance even at speeds exceeding 30 knots (34 mph), making it a reliable choice for high-speed vessels.
Technical Specifications
- Power Rating: 1 kW
- Frequency Band: Low-Medium CHIRP
- Low Frequency: 42-65 kHz
- Low Frequency Beamwidth: 25°-16°
- Maximum Depth (Low Frequency): 914 m (3,000')
- Medium Frequency: 85-135 kHz
- Medium Frequency Beamwidth: 16°-11°
- Maximum Depth (Medium Frequency): 457 m (1,500')

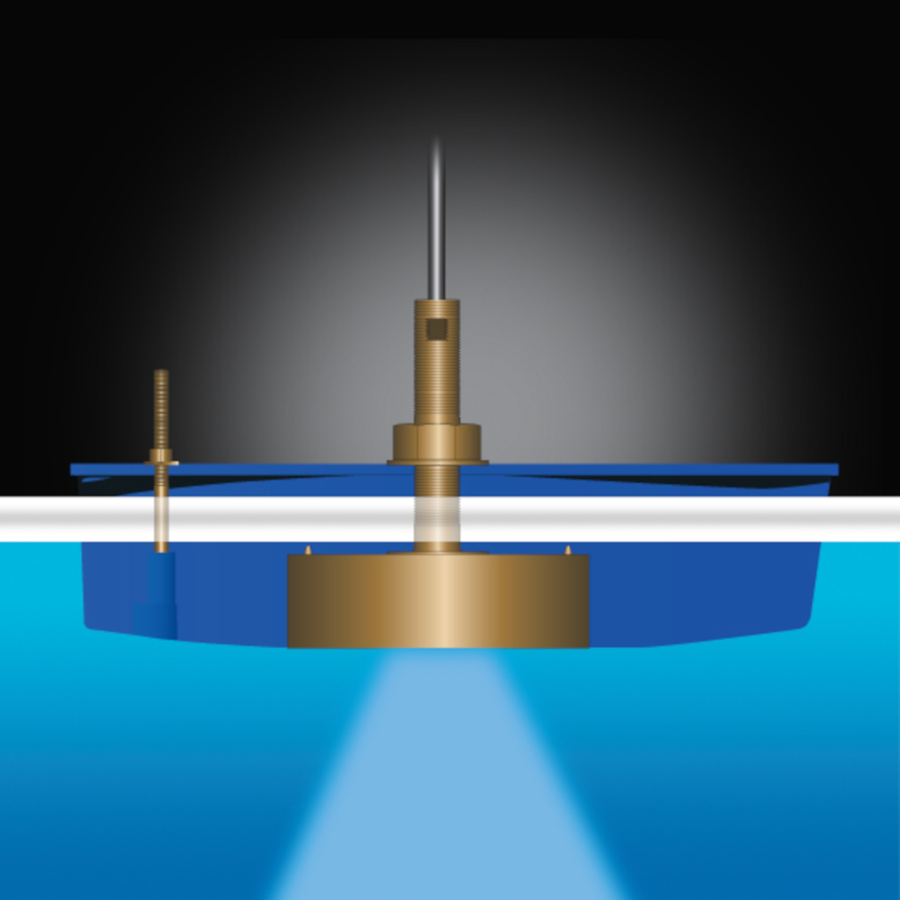

- Mounting Style: Thru-Hull with Fairing
- Housing Material: Bronze
- Cable Length: 10 m (33')
- Max Deadrise Angle: Up to 20° with fairing
- Transducer Functions: Depth, Temperature
- Usable Shaft Length: 121 mm (4.75")
Product Dimensions
- Usable Shaft Length: 121 mm (4.75")
Highlights
- Dual-band CHIRP technology for enhanced target separation
- Exceptional deep and mid-depth performance up to 914 m (3,000')
- Covers popular fishing frequencies, including 50, 88, and 107 kHz
- High-performance fairing ensures optimal signal clarity at high speeds
- Designed for fiberglass and wooden hulls
- Exclusive Xducer ID® technology for automatic transducer recognition
Variations List
- B265C-LM-MM: Connector Airmar 12-Pin
- B265C-LM-0: Connector Bare Wire
- B265C-LM-12F: Connector Furuno 12-Pin
- B265C-LM-12G: Connector Garmin 12-Pin
- B265C-LM-BL2: Connector Lowrance 7-Pin
- B265C-LM-11R: Connector Raymarine 11-Pin
- B265C-LM-9N2: Connector Simrad 9-Pin
