Airmar - B175C-20-MW 20d Tilt Medium CHIRP Ultra Wide Transducer

High-Performance Medium CHIRP Ultra-Wide Transducer for Superior Fish Targeting

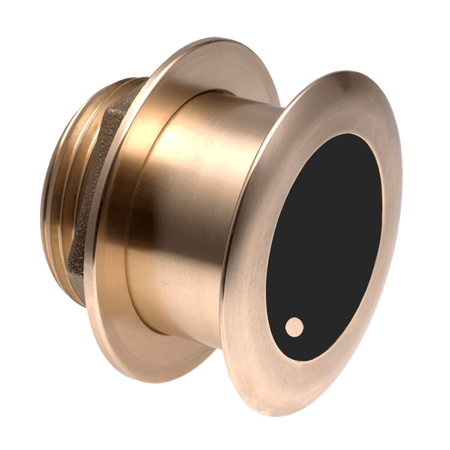

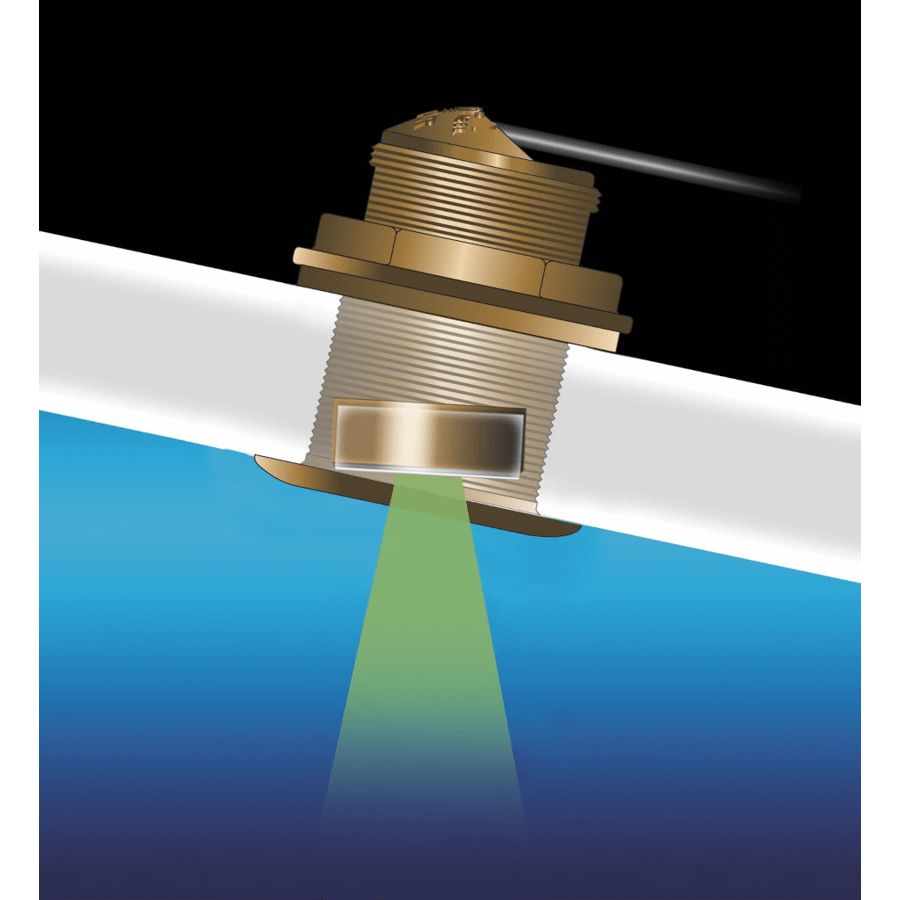

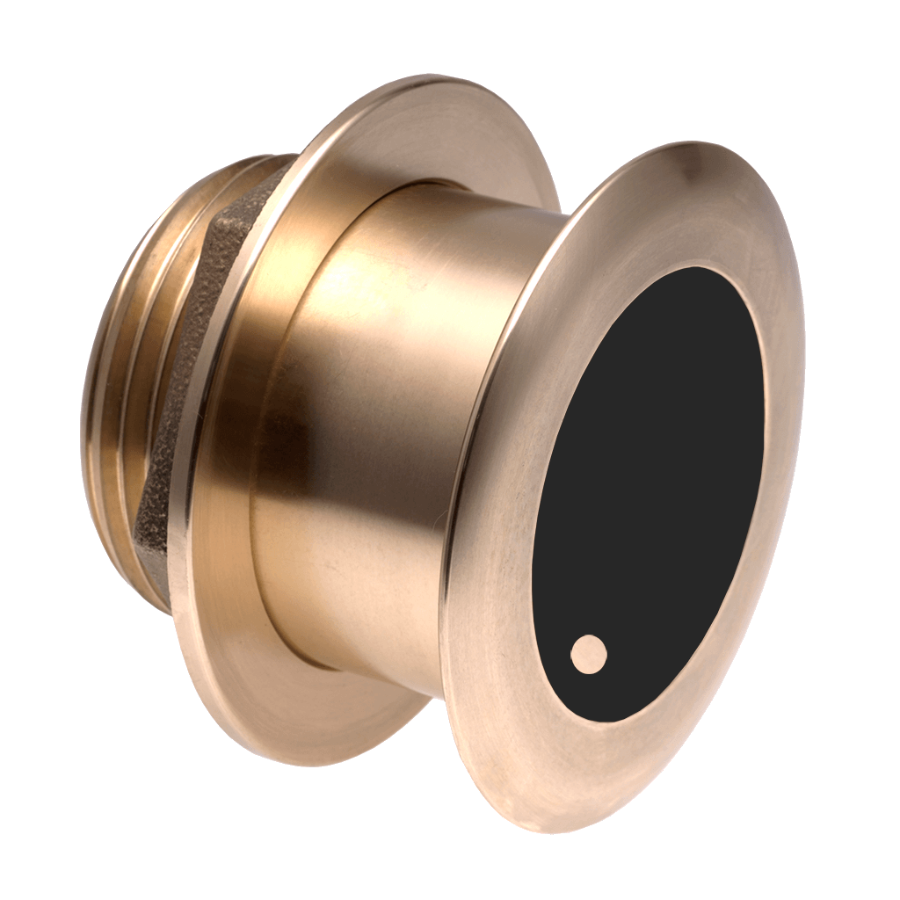

The Airmar B175MW Medium Ultra-Wide 20° Tilted Element Thru-Hull Transducer is an advanced solution for anglers seeking exceptional mid-depth performance and superior fish-target separation. Designed with cutting-edge CHIRP technology, this transducer covers a frequency range of 60-100 kHz, providing ultra-wide beamwidth ranging from 57° to 73° port-starboard and an average of 16° fore-aft. With a fixed 20° tilt, it is optimized for hulls with a deadrise of 16° to 24°, ensuring excellent coverage under the boat. Its robust bronze housing makes it ideal for use on stepped, planing, or displacement hulls, providing durability and reliability in demanding marine environments.

Advanced Technical Specifications

• Power Rating: 1 kW for powerful and efficient performance
• Functions: Depth and fast-response water-temperature sensor
• Hull Compatibility: Designed for fiberglass or wood hulls
• Mounting Style: Tilted Element Thru-Hull for streamlined installation
• Acoustic Window: Urethane for enhanced signal clarity
• Cable Length: 9 m (30') with Mix-N-Match compatibility
• Cable End: Mix-N-Match system for versatile connectivity

Unmatched Depth and Frequency Coverage

• Maximum Depth: Tracks depths up to 400 m (1,300')
• Medium Frequency Range: 60-100 kHz for superior mid-depth performance
• Beamwidth: 57° to 73° (Port/Starboard) x 16° (Fore/Aft) for expanded coverage

Built for Rugged Marine Conditions

• Housing Material: Durable bronze for reliability in harsh marine environments
• Max Vessel Length: Suitable for boats up to 11 m (36')
• Hole Size Requirement: 95 mm (3-3/4")
• Operating Water Temperature: -10° to 40°C (14° to 104°F)

Key Highlights

• Ultra-wide beam coverage for maximum fish detection under the boat
• Medium frequency CHIRP technology enhances fish-target separation
• Low-profile thru-hull design ensures minimal drag and high-speed performance
• Robust bronze housing ideal for various hull types and marine conditions
• Mix-N-Match compatibility for seamless integration with different marine electronics

Available Variants

This transducer is available in multiple connector configurations to ensure compatibility with a range of marine electronics:

• B175C-20-MW-MM - Airmar 12-Pin Connector
• B175C-20-MW-0 - Bare Wire Connector
• B175C-20-MW-10F - Furuno 10-Pin Connector
• B175C-20-MW-12F - Furuno 12-Pin Connector
• B175C-20-MW-12G - Garmin 12-Pin Connector
• B175C-20-MW-8G - Garmin 8-Pin Connector
• B175C-20-MW-14HB - Humminbird 14-Pin Connector
• B175C-20-MW-21HB - Humminbird 21-Pin Connector
• B175C-20-MW-9HB - Humminbird 9-Pin Connector
• B175C-20-MW-11R - Raymarine 11-Pin Connector

Perfect for both professional and recreational anglers, the Airmar B175MW provides unmatched clarity and performance, making it an essential tool for targeting pelagic species in mid-depth waters.
