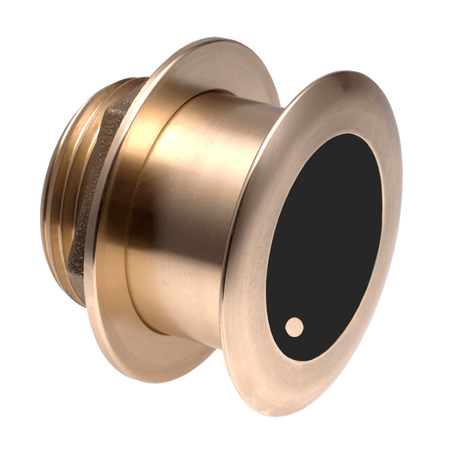

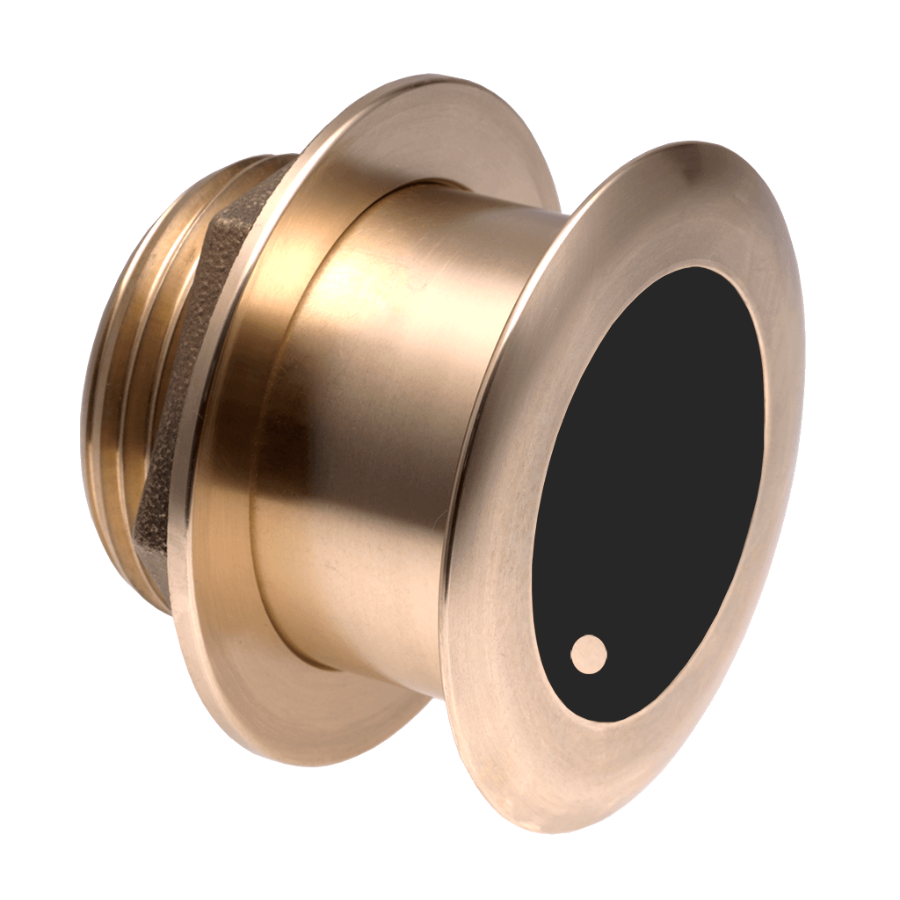

Airmar - B175C-12-MW 12d Tilt Medium CHIRP Ultra Wide Transducer

Ultra-Wide Medium CHIRP Transducer for Superior Marine Performance

The Airmar B175C-12-MW 12° Tilt Medium CHIRP Ultra Wide Transducer is engineered for optimal mid-depth performance and unparalleled fish-target separation. With a medium frequency range of 60-100 kHz, this transducer offers an ultra-wide beamwidth of 57° to 73° port-starboard and 16° average fore-aft, ensuring maximum coverage beneath the vessel. Designed for through-hull installation, its low-profile bronze housing is ideal for use on stepped, planing, or displacement hulls. Featuring Airmar's exclusive Xducer ID® technology, it delivers precise and reliable sonar readings, making it a powerful tool for anglers targeting pelagic species in the upper water column.

Advanced Technical Specifications

• Power Rating: 1 kW
• Frequency Range: Medium CHIRP (60-100 kHz)
• Beamwidth: 57° to 73° (Port/Starboard) x 16° (Fore/Aft)
• Depth Capability: Up to 400 m (1,300')
• Functions: Depth and fast-response water temperature sensor
• Acoustic Window Material: Urethane
• Cable Length: 9 m (30')
• Cable End: Mix-N-Match compatibility

Rugged and Efficient Design

• Housing Material: Durable bronze construction

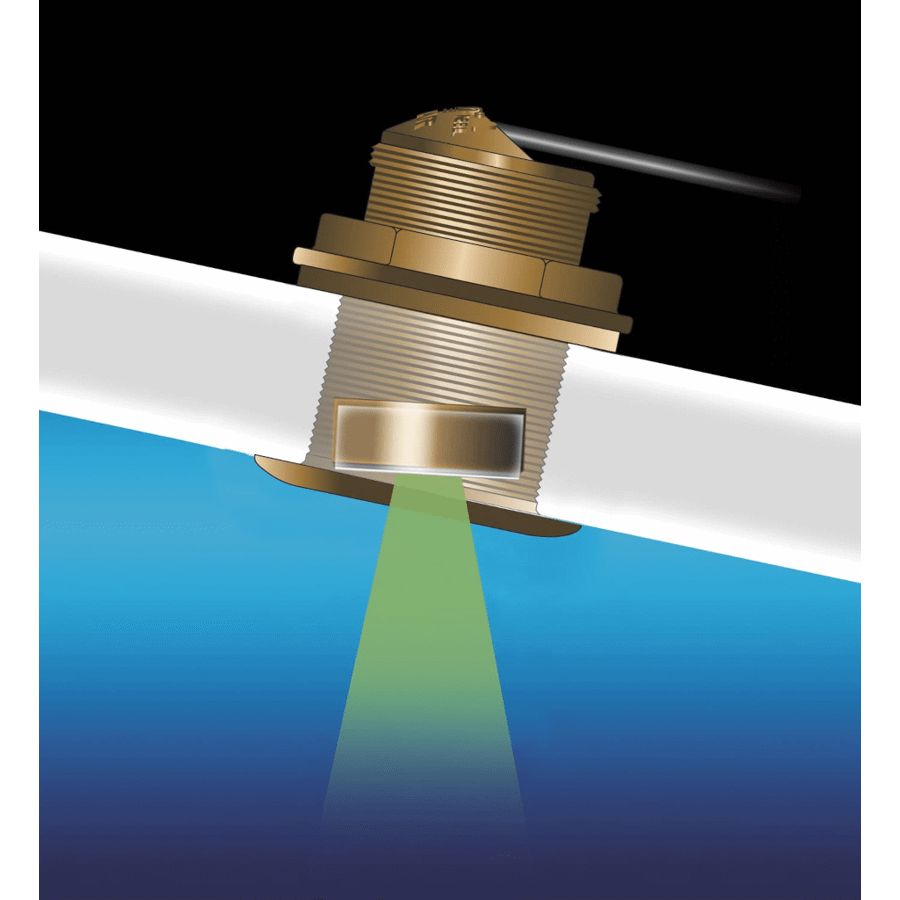

• Mounting Style: Tilted Element Thru-Hull
• Hull Compatibility: Designed for fiberglass or wood hulls with deadrise angles between 8° and 15°
• Hole Size Required: 95 mm (3-3/4")
• Maximum Vessel Length: Up to 11 m (36')

Key Features and Benefits

• Ultra-Wide Beam Coverage – Expands sonar scanning range for enhanced fish detection
• Medium CHIRP Technology – Provides superior target separation and clear imaging
• Tilted Element Design – Ensures optimal alignment with hull deadrise for accurate readings
• Reliable Performance – Effective in depths up to 400 meters (1,300 feet)
• Durable Bronze Housing – Ideal for a variety of hull types and marine environments

Available Variations

The B175C-12-MW transducer is available in multiple connector configurations to suit various marine electronics brands:

• B175C-12-MW-MM – Airmar 12-Pin Connector
• B175C-12-MW-0 – Bare Wire Connector
• B175C-12-MW-10F – Furuno 10-Pin Connector
• B175C-12-MW-12F – Furuno 12-Pin Connector
• B175C-12-MW-12G – Garmin 12-Pin Connector
• B175C-12-MW-8G – Garmin 8-Pin Connector
• B175C-12-MW-14HB – Humminbird 14-Pin Connector
• B175C-12-MW-21HB – Humminbird 21-Pin Connector
• B175C-12-MW-HB – Humminbird 9-Pin Connector
• B175C-12-MW-11R – Raymarine 11-Pin Connector

This transducer is a top-tier choice for serious anglers and marine professionals looking for precision, durability, and extensive underwater coverage.
