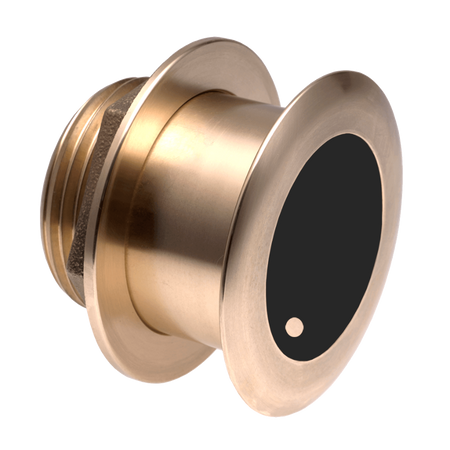

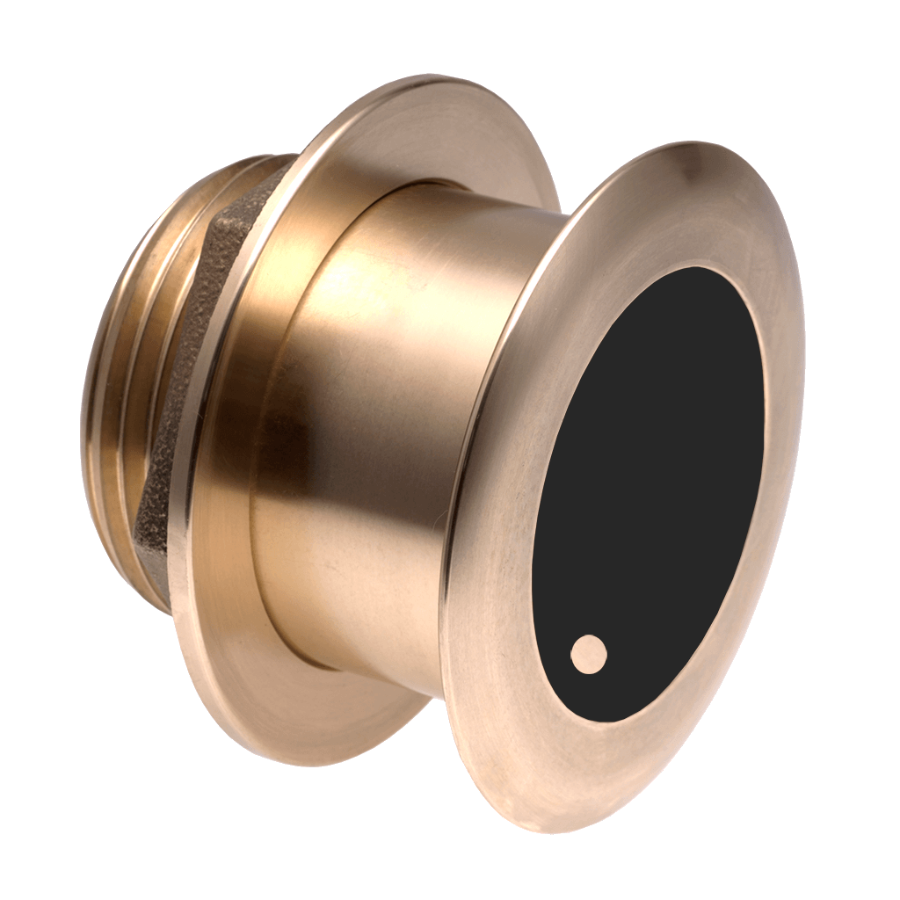

Airmar - B175C-12-M 12d Tilt Medium CHIRP Transducer
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Exceptional Wide-Beam Coverage for Marine Applications
The Airmar B175C-12-HW is a high-performance tilted-element transducer designed to enhance sonar capabilities for serious anglers and marine professionals. Featuring a wide-beam CHIRP frequency range of 150–250 kHz and a constant 25° beam width, this transducer significantly improves bottom coverage and fish detection. It delivers crisp, high-resolution imaging for clearer target separation and greater detail. Ideal for vessels 25 feet and larger with fiberglass or wood hulls, the B175C-12-HW offers unparalleled performance for offshore fishing and deep-sea navigation.
Advanced CHIRP Technology for Superior Sonar Imaging
Engineered with CHIRP technology, the Airmar B175C-12-HW provides 100 kHz of total bandwidth, ensuring exceptional target detection across a broad frequency range. This model effectively covers the popular 200 kHz fishing frequency and expands detection capabilities to include everything within its wide bandwidth. The result is improved target clarity and increased fish detection in both deep and shallow waters.
Technical Specifications
- Frequency Range: 150 to 250 kHz (Broadband)
- Beam Width: 25° constant across the entire frequency band
- Power Rating: 1 kW @ 1% duty cycle
- Depth Capability: Optimized for superior bottom coverage
- Water Temperature Sensor: Fast-response sensor included
- Hull Compatibility: Suitable for fiberglass and wood hulls
- Boat Size Compatibility: Designed for boats 25 feet (8 meters) and above
- Deadrise Compatibility: 16° to 24°
- Acoustic Window: Urethane
Highlights
- Wide-beam CHIRP technology enhances fish detection and bottom coverage
- Provides twice the coverage under the boat compared to narrow-beam models
- Constant beam width ensures reliable detection across the frequency range
- Delivers larger and clearer return images on sonar displays
- Ideal for anglers targeting fish in both deep and shallow waters
Variations List
The Airmar B175C-12-HW is available in multiple connector configurations to ensure compatibility with a range of marine electronics systems:
- B175C-12-HW-MM: Airmar 12-Pin Connector
- B175C-12-HW-0: Bare Wire Connector
- B175C-12-HW-12G: Garmin 12-Pin Connector
- B175C-12-HW-8G: Garmin 8-Pin Connector
- B175C-12-HW-14HB: Humminbird 14-Pin Connector
- B175C-12-HW-HB: Humminbird 9-Pin Connector
- B175C-12-HW-BL: Lowrance 7-Pin Connector
- B175C-12-HW-11R: Raymarine 11-Pin Connector
- B175C-12-HW-9N: Simrad 9-Pin Connector
The Airmar B175C-12-HW is an essential tool for any marine enthusiast seeking unparalleled sonar performance. With its innovative wide-beam CHIRP technology and multiple connectivity options, this transducer provides exceptional underwater imaging and reliability for serious offshore applications.
