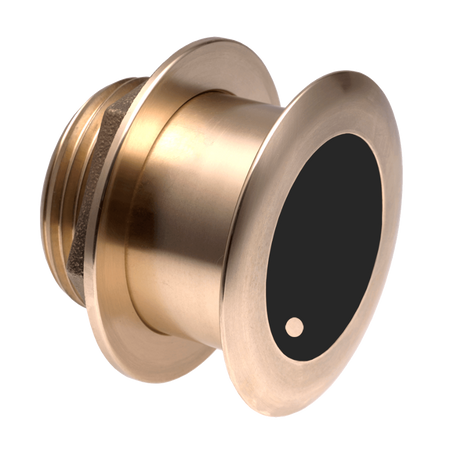

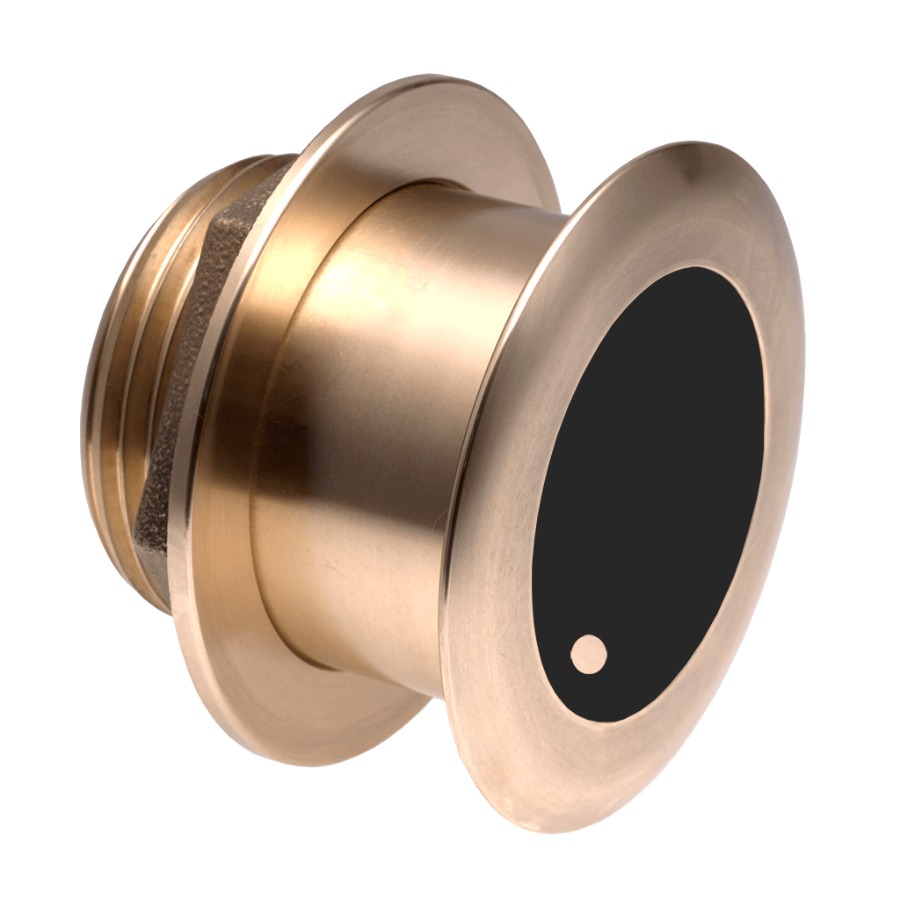

Airmar - B175C-0-MW 0d Tilt Medium CHIRP Ultra Wide Transducer
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Superior Marine Sonar Performance with Ultra-Wide Coverage
The Airmar B175MW Medium Ultra-Wide transducer is engineered to deliver exceptional sonar performance for serious anglers and marine professionals. Designed for vessels with a hull deadrise of 0° to 7°, this thru-hull transducer provides superior mid-depth target separation and extensive coverage under the boat. With its innovative medium-frequency range of 60-100 kHz and ultra-wide beamwidth spanning 57° to 73° port/starboard, this transducer ensures comprehensive scanning for pelagic species in the upper water column.
AIRMAR's proprietary Tilted Element™ technology enhances signal clarity and resolution, even at higher speeds, making it ideal for planing, displacement, and stepped hulls. The B175MW is built with a durable bronze housing and integrates seamlessly with various fishfinder systems, requiring a Mix-N-Match cable for compatibility with different marine electronics.
Advanced Technical Specifications for Marine Applications
- Power Rating: 1 kW
- Functionality: Depth and fast-response water temperature sensor
- Frequency Range: Medium frequency (60-100 kHz)
- Beamwidth: 57° to 73° (port/starboard) x 16° (average fore/aft)
- Maximum Depth: 400 m (1,300')
- Acoustic Window: Urethane for optimized signal transmission
- Cable Length: 9 m (30')
- Operating Temperature Range: -10°C to 40°C (14°F to 104°F)
- Connector Type: Mix-N-Match system for various plug compatibility
Rugged and Reliable Construction for Marine Environments
- Housing Material: Bronze, ideal for use on fiberglass and wooden hulls

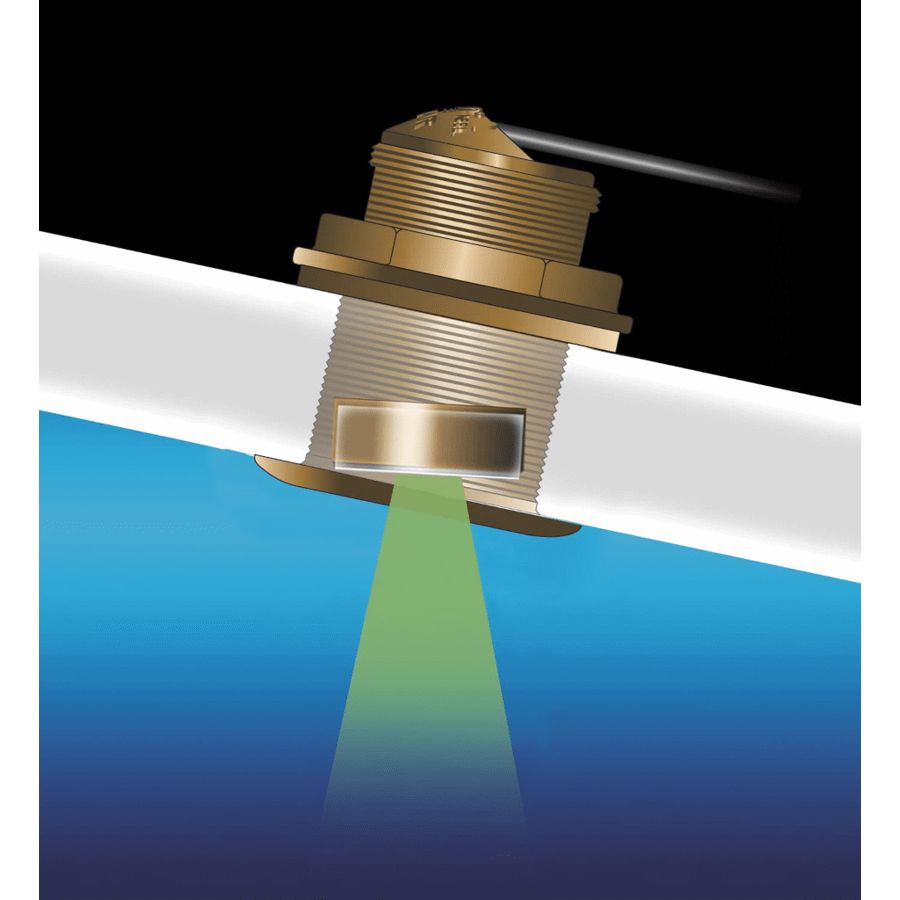

- Mounting Style: Low-profile, thru-hull installation for minimal drag and optimal sonar performance
- Recommended Vessel Length: Up to 11 m (36')
- Hole Size: 95 mm (3-3/4")
Key Features and Benefits
- Fixed 0° tilt version for hulls with minimal deadrise
- Wide beamwidth enhances coverage and target separation
- Medium-frequency CHIRP technology for superior depth tracking
- Durable construction ensures longevity in harsh marine conditions
- Exclusive Xducer ID® technology for automatic transducer recognition
Available Variations and Connector Types
The Airmar B175MW is available with multiple connector options to ensure compatibility with leading marine electronics brands:
- B175C-0-MW-MM: Connector Airmar 12-Pin
- B175C-0-MW-0: Connector Bare Wire
- B175C-0-MW-10F: Connector Furuno 10-Pin
- B175C-0-MW-12F: Connector Furuno 12-Pin
- B175C-0-MW-12G: Connector Garmin 12-Pin
- B175C-0-MW-8G: Connector Garmin 8-Pin
- B175C-0-MW-14HB: Connector Humminbird 14-Pin
- B175C-0-MW-21HB: Connector Humminbird 21-Pin
- B175C-0-MW-HB: Connector Humminbird 9-Pin
- B175C-0-MW-11R: Connector Raymarine 11-Pin
The Airmar B175MW transducer is the ultimate solution for anglers seeking unparalleled sonar clarity and wide-area scanning in mid-depth waters. Whether installed on sport fishing boats or commercial vessels, this high-performance transducer ensures reliable and accurate marine navigation.
