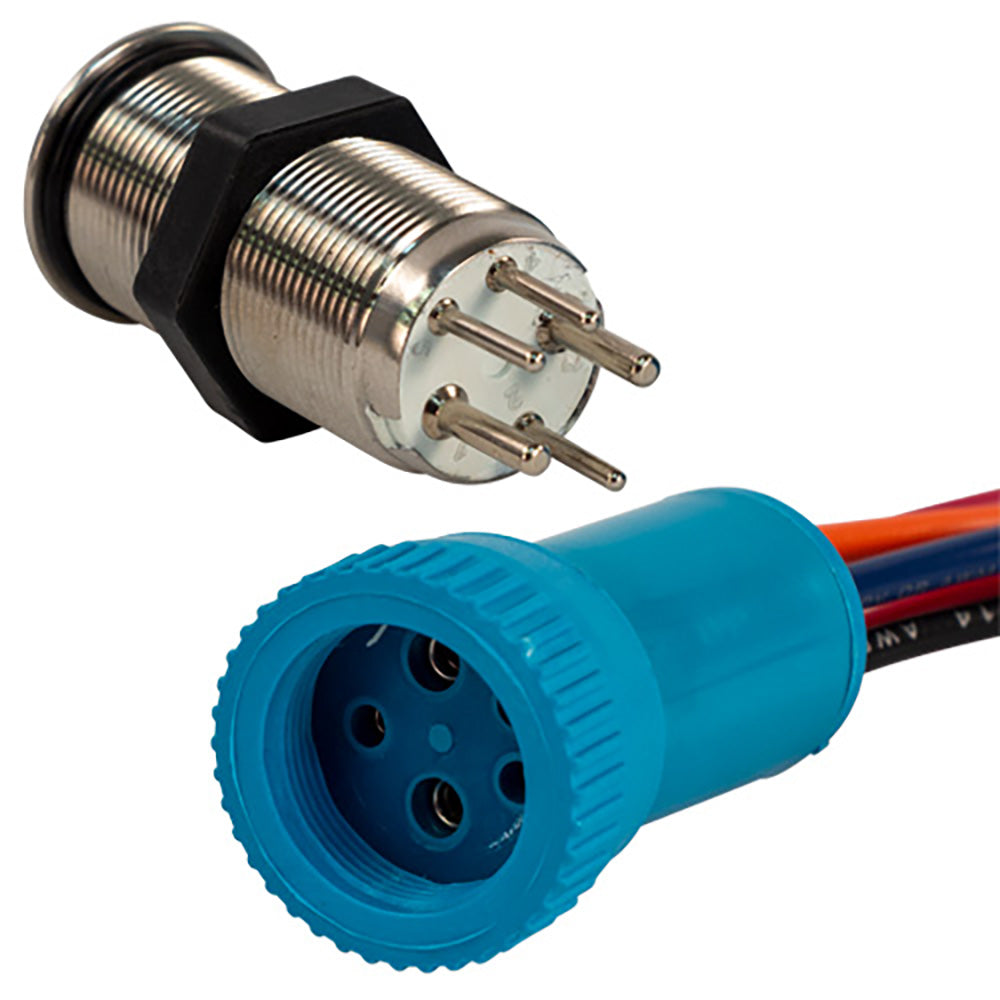

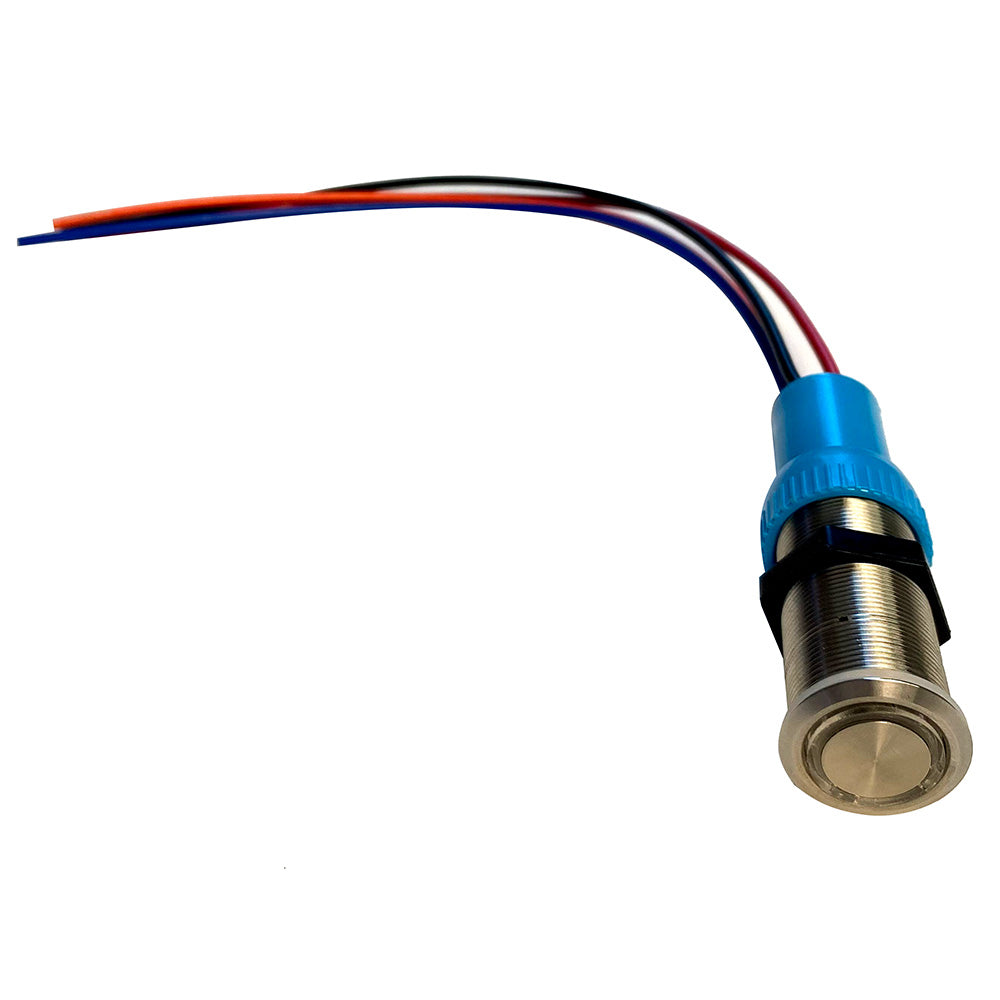

Bluewater - In-Rush Push Button Switch - Nav/Anchor Off/On/On, Blue/Green/Red LED, 4' Lead, 19mm

Transform Your Marine Dash with Style and Functionality

Upgrade your marine vessel’s dashboard with the Bluewater 19mm In-Rush Push Button Switch. Designed to combine modern aesthetics with robust functionality, this stainless-steel plated button not only enhances the look of your dash but also ensures reliable performance in demanding marine environments. Whether you're navigating or anchoring, this switch provides clear visual feedback, making it an essential addition to your boat's control panel.

Cutting-Edge Features for Seamless Operation

The Bluewater Push Button Switch offers unparalleled visibility with its multi-colored LED lights. When activated, the switch lights up with a blue LED, changing to red to indicate the function is on, ensuring you never have to guess the status of your controls. The IP69K waterproof rating and durable stainless-steel construction guarantee this switch can withstand the harshest marine conditions.

• Multi-Colored LED Indicators: Blue LED for visibility, red LED for active function.
• IP69K Waterproof Rating: Superior protection against water and dust.
• Stainless Steel Construction: Built to last in marine environments.
• Easy Installation: 4 ft. lead for flexible mounting.

Technical Specifications for Reliable Performance

Designed to deliver consistent performance, the Bluewater Push Button Switch is rated for 15A at 12-24VDC, making it suitable for a wide range of marine applications. Its mechanical life of 50,000 cycles and electrical life of 10,000 cycles ensure long-lasting reliability.

• Function: Nav/Anchor
• Off/1st On: Blue/Green LED
• 2nd On: Red LED
• Switch Rating: 15A/12-24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Dimensions and Design

The compact design of this switch, with a 19mm hole size, makes it easy to integrate into any dashboard up to 6mm thick. The included gasket ensures a secure and waterproof installation.

• Dimensions: Fits into a 19mm hole, suitable for materials up to 6mm thick.

Finishes for a Sleek Look

The stainless-steel finish not only provides durability but also adds a sleek, modern look to your marine dashboard, complementing any vessel design.

• Finish: Stainless steel for durability and aesthetics.

Simplified Installation Process

Installing the Bluewater Push Button Switch is straightforward. Simply drill a 19mm hole, connect the three contacts for the button, and the two contacts for the LED. The color-coded contacts ensure safe and convenient installation.

• Installation Steps:
• Drill a 19mm hole into any material up to 6mm thick.
• Connect the three contacts for the button (color-coded).
• Connect the two contacts for the LED.

Elevate Your Marine Experience

Enhance the functionality and appearance of your marine vessel with the Bluewater 19mm In-Rush Push Button Switch. Its advanced features, durable construction, and sleek design make it the perfect upgrade for any boat. Trust Bluewater to deliver the reliability and style you need for your marine adventures.
