Precision Performance for High-Speed Marine Applications

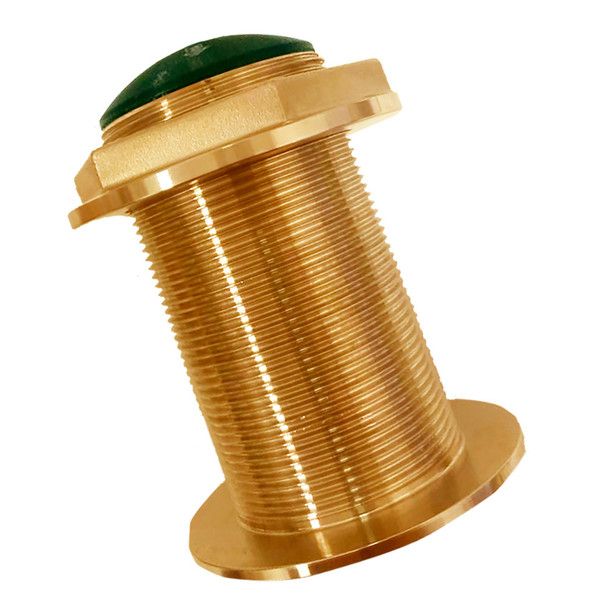

The Echonautics BT70MA600 80-130kHz Medium CHIRP Transducer is a high-performance thru-hull transducer engineered for superior depth and temperature readings. Its low-profile design minimizes drag and ensures smooth operation at high speeds, making it an excellent choice for a range of marine vessels. With CHIRP technology, this transducer delivers clearer and more detailed sonar imaging, providing precise target detection even in deep waters. The 0° tilted element ensures optimal alignment with hull deadrises between 0° and 7°, maximizing performance and accuracy.
Reliable and Efficient Technical Specifications
- Function: Depth and Temperature Measurement
- Frequency Range: CHIRP 80-130kHz
- Mount Style: Thru-Hull
- Tilt/Deadrise Compatibility: 0° tilted element, ideal for hull deadrises from 0° to 7°
- Material: Durable Bronze Construction
- RMS Power: 600 watts for strong and consistent performance
- Beamwidth: 24° to 17° @ 3dB, offering a wide and effective sonar coverage
- Maximum Depth Capability: Up to 900 feet
Built for Durability and Seamless Installation
- Temperature Sensor: NTC for accurate water temperature readings
- Acoustic Window: Urethane for optimal sonar signal transmission
- Cable Length: 27 feet, providing flexible installation options
- Hole Diameter: 2.38 inches for secure thru-hull mounting
Available Variations for Customized Fit
The Echonautics BT70MA600 series offers multiple tilt options to accommodate various hull angles:
- BT70MA600-00 – 0° Tilt
- BT70MA600-12 – 12° Tilt
- BT70MA600-18 – 18° Tilt
Designed for serious anglers, commercial operators, and marine professionals, the Echonautics BT70MA600 provides exceptional clarity, durability, and reliability in varying marine conditions. Its bronze construction ensures long-lasting resistance to harsh saltwater environments, while its advanced sonar technology enhances underwater visibility for a more productive and safe boating experience.
