Precision Depth and Temperature Sensing for Marine Applications

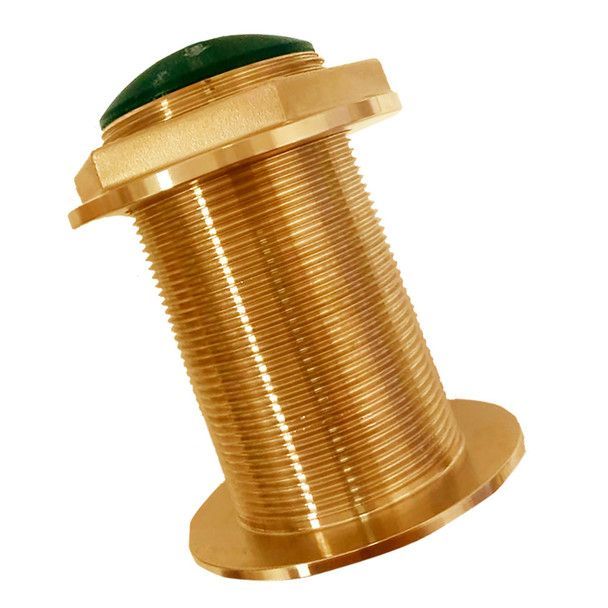

The Echonautics BT70D600 is a powerful 600W thru-hull transducer designed for superior target detail in shallow waters and exceptional bottom tracking in deep waters. With its dual-frequency operation at 50/200kHz, it ensures high-resolution imaging and accurate depth readings. The bronze construction enhances durability, making it ideal for marine environments. Engineered to minimize drag and perform efficiently at high speeds, this transducer is a reliable choice for both recreational and professional marine users.
Advanced Technical Specifications
- Function: Depth and temperature measurement
- Frequency: 50/200kHz
- Mount Type: Thru-hull
- Tilt/Deadrise Compatibility: 0° tilt for hull deadrises from 0° to 7°
- Material: Bronze construction for enhanced durability
- RMS Power: 600 watts
- Beamwidth: 42° at 50kHz / 11° at 200kHz (-3dB)
- Maximum Depth Capability:50kHz: Up to 1200 feet
- 200kHz: Up to 700 feet
- Temperature Sensor: NTC
- Acoustic Window: Urethane for optimal signal transmission
Product Dimensions
- Weight: 54 oz
- Cable Length: 27 feet
- Hole Diameter: 2.38 inches
Key Features and Benefits
- Dual-frequency operation (50/200kHz) for precise depth readings
- High-performance bronze construction for marine durability
- Optimized for minimal drag and high-speed functionality
- Accurate temperature sensing with an integrated NTC sensor
- Versatile tilt compatibility for different hull designs
Available Variants
- BT70D600CW-00 – Tilt 0°
- BT70D600CW-12 – Tilt 12°
- BT70D600CW-18 – Tilt 18°
Ideal for vessels requiring reliable and efficient underwater data collection, the Echonautics BT70D600 transducer ensures accurate performance in diverse marine conditions.
