Lewmar - V700G Vertical Windlass - With Rocker Switch & Control, 12v
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.

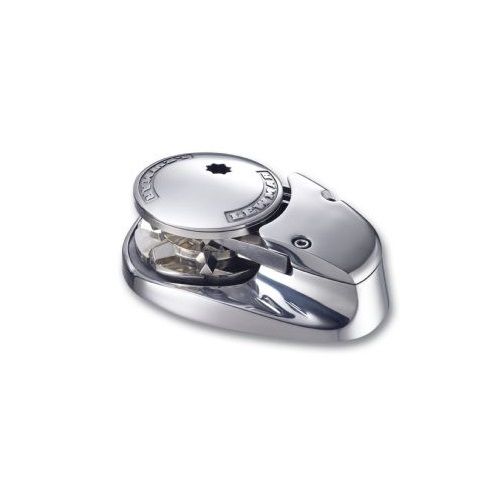

Reliable and Sleek Lewmar V700G Vertical Windlass
The Lewmar V700G Vertical Windlass is a powerful and efficient anchoring solution designed for boats up to 10.5 meters (35 feet). With a robust stainless steel construction and a compact flush-mount design, this windlass delivers exceptional performance while maintaining a sleek appearance on deck. Its advanced features, including a high-speed motor and a secure anchor lock system, ensure smooth and safe anchoring at the push of a button. The V700G is engineered for durability and ease of use, making it a top choice for marine enthusiasts.
Durable Stainless Steel Construction
Crafted with 100% 316 stainless steel, the V700G is built to withstand harsh marine environments. The corrosion-resistant housing ensures longevity, while the impact-resistant motor cover provides additional protection from the elements.
High-Performance Anchoring System
Equipped with a powerful 320-watt motor, the V700G offers fast line speeds, allowing for quick deployment and retrieval of the anchor. It supports both 6mm and 7mm (1/4 inch) chains, providing versatility and compatibility with various anchor setups. The windlass also features an integrated fall-safe anchor lock, preventing accidental anchor release and enhancing safety.
Technical Specifications
- Motor Power Draw: 320 watts
- Maximum Pull: 700 lbs
- Working Load Limit: 175 lbs
- Maximum Line Speed: 82 ft/min
- Typical Line Speed: 50 ft/min
- Input Voltage: 12V
Compact and Space-Saving Design
The V700G’s flush-mount design conceals the motor below deck, keeping the deck area clean and uncluttered. This not only enhances the vessel’s aesthetics but also reduces exposure to environmental wear.
Product Dimensions
- Length: 7.34 inches
- Width: 5 inches
- Height: 11 1/16 inches
Key Features
- Designed for boats up to 35 feet (10.5m)
- Works with both 6mm and 7mm (1/4 inch) chains
- 100% 316 stainless steel deck unit for maximum durability
- Fast and efficient line speed for quick anchor retrieval
- Fall-safe anchor lock for added security
- Manual recovery option for emergency use
- IP-rated housing for enhanced water resistance
- Impact-resistant motor cover for long-lasting protection
What’s in the Box
- V700 Windlass
- Breaker/Isolator
- Control Switch
- Intelligent Mounting Studs, Washers, and Nuts
- All-in-One Installation Wrench & Clutch Lever
- Base Gasket Seal
- Safety Instructions
- Mounting Template
- Instruction Booklet
- Warranty Registration Card
The Lewmar V700G Vertical Windlass offers an exceptional balance of performance, reliability, and ease of installation, making it an excellent choice for boaters seeking a hassle-free anchoring solution.
