Advanced 1kW Flush-Mount Transducer for High-Performance Fishing
The Airmar B164 1kW Bronze Tilted Element Transducer is designed for serious anglers seeking powerful sonar performance without the need for a high-profile fairing. Engineered for fast, trailered, and tournament sportfishing vessels, this transducer features Airmar’s innovative Tilted Element™ technology, ensuring maximum sonar energy directly below your boat. The flush-mounted, bronze housing protrudes less than 6.35 mm (0.25") outside the hull, making it ideal for boats that require smooth, uninterrupted water flow and can rest safely on trailer rollers and bunks without damage.
High-Performance Sonar Capabilities

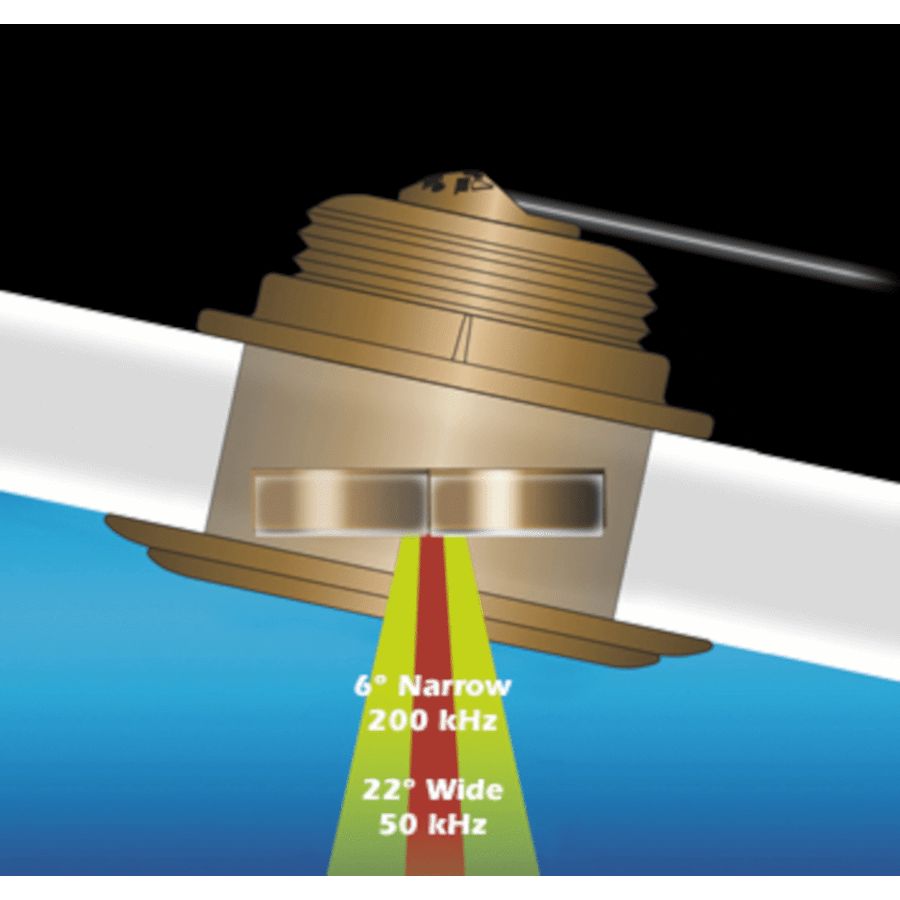

Equipped with a powerful 1kW RMS output and dual-frequency operation at 50/200 kHz, this transducer delivers exceptional depth and temperature readings. The internal ceramic array is precisely tilted to provide a perfect vertical beam, eliminating the need for an external fairing while maintaining high accuracy and strong target separation.
Rugged and Streamlined Construction
Built with a durable bronze housing, the B164 transducer is designed to withstand harsh marine environments. The low-profile design ensures minimal drag and interference, making it an excellent choice for high-speed applications.
Technical Specifications
- Operating Frequencies: 50/200 kHz
- Power Output: 1kW RMS
- Tilted Element: 0° for direct downward sonar coverage
- Housing Material: Bronze
- Installation Type: Through-hull, flush-mount
- Depth & Temperature Sensing: Yes
Product Dimensions
- Protrusion Outside Hull: 6.35 mm (0.25")
Key Features
- High-performance 1kW transducer for superior depth and target resolution
- Flush-mount design with less than 6.35 mm (0.25") hull protrusion
- Tilted Element™ technology ensures an optimal sonar beam
- No need for a high-performance fairing, ideal for trailerable boats
- Durable bronze construction for long-lasting marine use
Available Variations
The Airmar B164 transducer is available in multiple connector configurations to ensure compatibility with different fishfinder brands:
- B164-12-10F: Furuno 10-Pin Connector
- B164-12-6G: Garmin 6-Pin Connector
- B164-12-8G: Garmin 8-Pin Connector
- B164-12-BL: Lowrance 7-Pin Connector
- B164-12-RAY: Raymarine 7-Pin Connector
This high-performance, flush-mounted transducer is the perfect upgrade for anglers looking to enhance their sonar capabilities while maintaining a sleek, efficient hull design.
