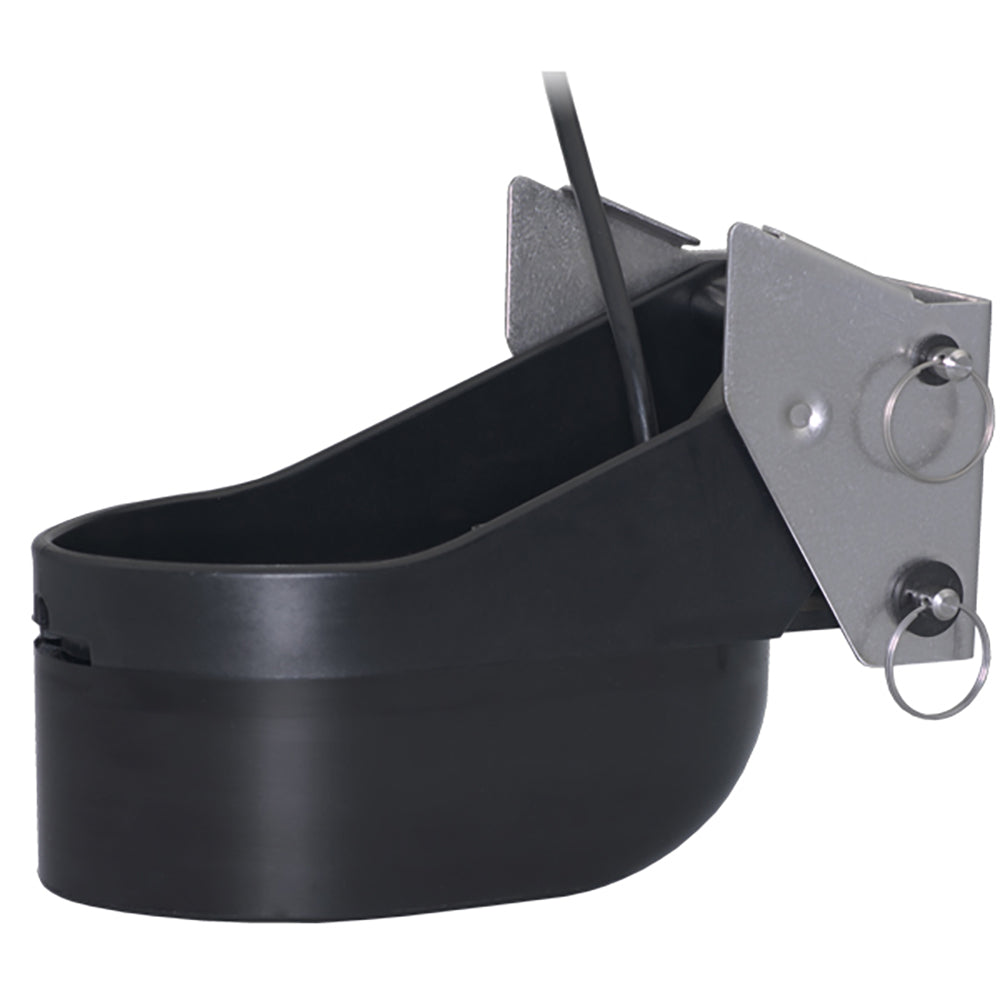

Airmar TM260 1kW Transom Mount Transducer w/Humminbird #9 Plug - 7-Pin TM260-HB

TM260 1kW Transom Mount Transducer w/Humminbird #9 Plug - 7-Pin

Powerful, Yet Sensitive! The TM260 takes the legendary performance of the B260 to your vessel's transom. This top-of-the-line, broadband, transom-mount brings crystal clear imaging to any of today's fishfinders. The large, 200 kHz element and the seven-element, 50 kHz array are excellent for bait and game fish separation along with detecting ground fish holding tight to the bottom. The TM260's rugged mounting bracket is easy-to-install and has a streamlined shape that delivers high-speed performance up to 30 knots (35 MPH).

Features:

• Top-of-the-line narrow-beam transom-mount

• Designed for bottom fishing
• Wide 19° beam at 50 kHz
• Narrow 6° beam at 200 kHz
• Interfaces to any 600W or 1 kW sounder
• Depth and fast-response water-temperature sensor
• Kick-up assembly locks in the "up" position and will not damage the transom
• Accommodates transom angles between 3° and 21°
• Urethane housing
• Boat Size: Up to 12M (40')

Specifications:

• Weight: 4 kg (8.9 lb)

• Hull Deadrise: Up to 28°
• Acoustic Window: Urethane
