Durable and Reliable Marine Hatch for Secure Ventilation

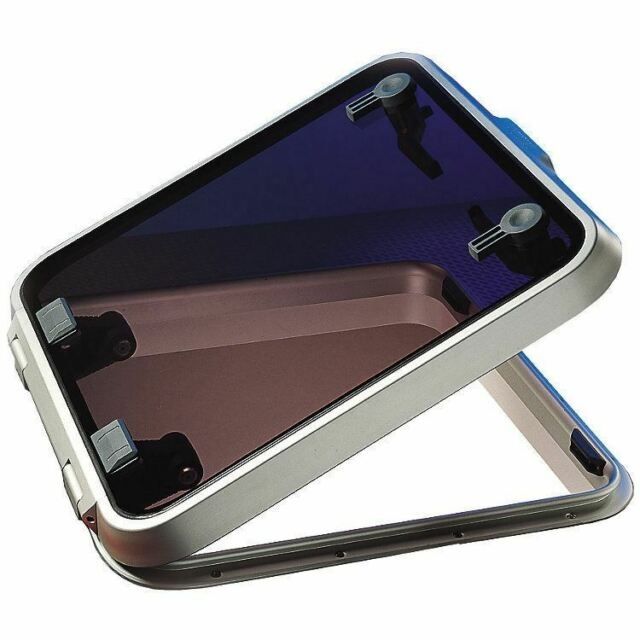

The Lewmar 60 Ocean Series Hatch is designed to provide excellent ventilation, safety, and durability for marine environments. Built to withstand harsh ocean conditions, this hatch is ideal for both sailboats and powerboats. It features a robust construction that ensures a secure fit while allowing easy access and controlled airflow. Its sturdy acrylic window enhances visibility while offering superior resistance to impact and weather exposure.
Precision Engineering for a Secure Fit
The hatch is designed to be mounted on a flat surface with a maximum tolerance of +/- 1mm, ensuring a precise installation. It utilizes fastening sizes tailored for optimal stability, including M6 (1/4”) at the hinge section and 5mm CSK screw No.10 UNC 2 BA for the lower frame. This meticulous engineering enhances the hatch’s durability and long-term performance in marine environments.
Technical Specifications
- Lower Frame: 1” Flange
- Acrylic Window Color: Smoke Grey
- Hatch Weight: 17.6 lb
- Acrylic Window Thickness: 1/2”
Optimized Dimensions for Seamless Installation
- Overall Length (X): 22 5/8”
- Overall Width (Y): 22 5/8”
- Height (Z): 1 11/16”
- Radii (R): 3”
- Hinge Length (HX): 3/16”
- Hinge Width (HY): 14 7/16”
- Cut-Out Length Flat (X1): 19 15/16”
- Cut-Out Width Flat (Y1): 19 15/16”
- Cut-Out Radii Flat (R1): 1 11/16”
Highlights
- Engineered for a secure and watertight fit on marine vessels
- Constructed with high-quality acrylic for enhanced durability and impact resistance
- Smoke Grey window for reduced glare and improved visibility
- Designed for precise mounting with minimal tolerance for misalignment
- Reliable fastening system for long-lasting stability
Variations Available

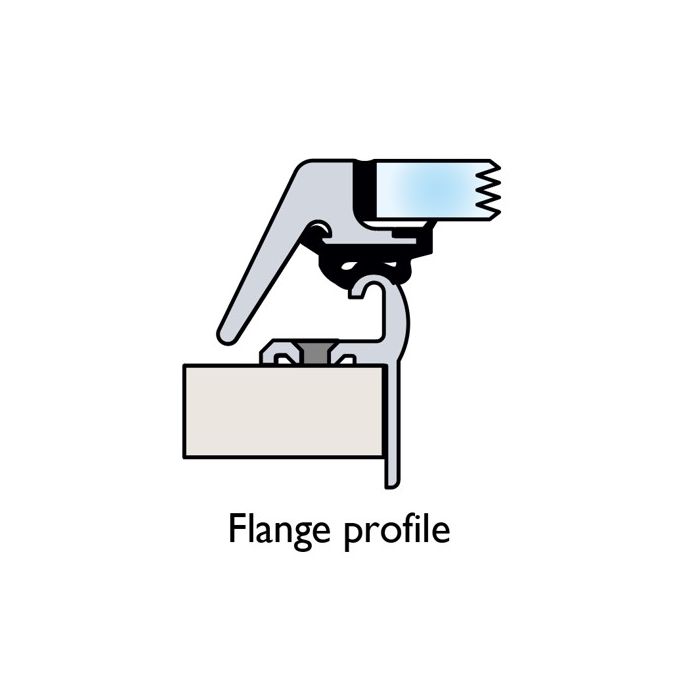

- 39660070 - Flange Base: Designed for applications requiring a 1” flange for secure mounting.

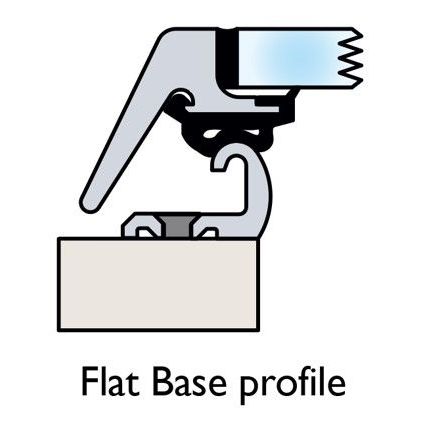

- 39660050 - Flat Base: Suitable for installations that require a flat base configuration.
This hatch combines strength, functionality, and sleek design, making it an excellent choice for marine enthusiasts seeking reliability and performance.
