Octopus Autopilot Drives - 38mm Bore Linear Drive 7" Stroke Pump 12vDC
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Advanced Hydraulic Linear Actuator for Seamless Autopilot Control

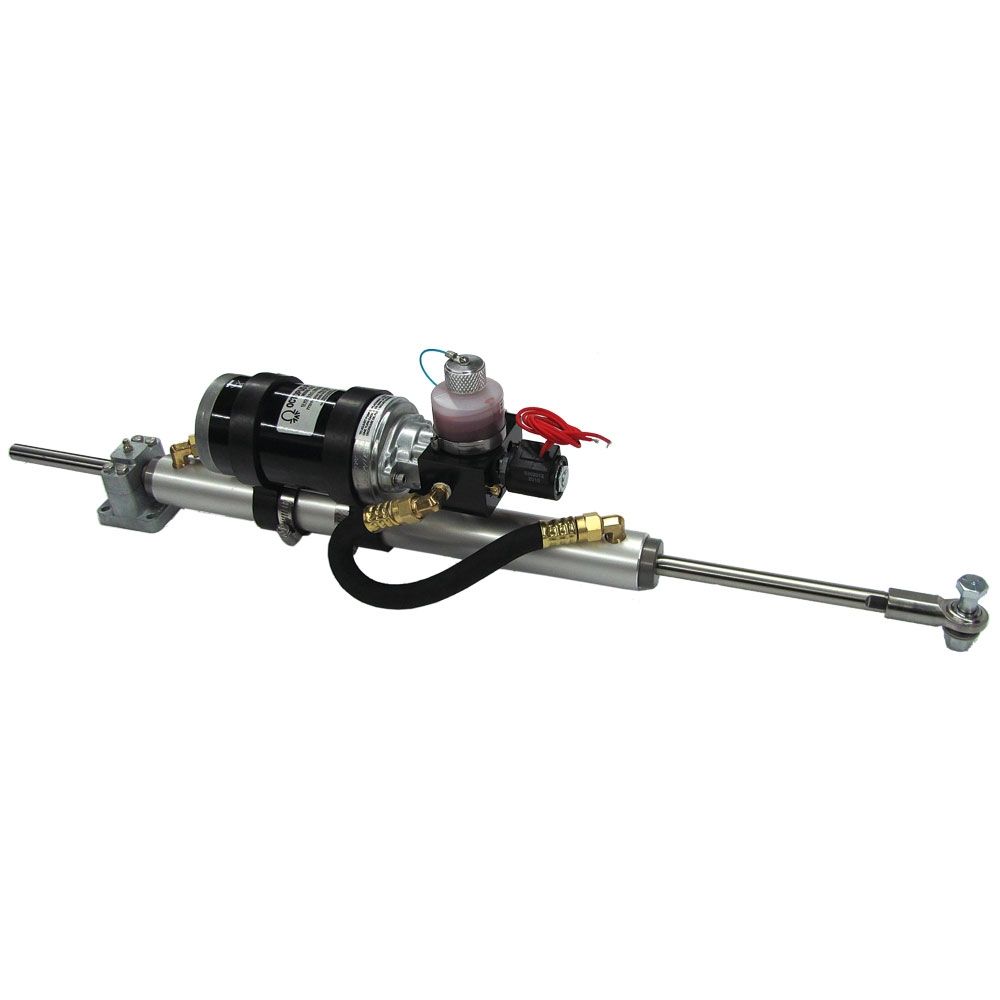

The Octopus Autopilot Drives 38mm Bore Linear Drive with a 7" Stroke Mounted Pump (12vDC) is designed to deliver precise and dependable rudder control for vessels equipped with mechanical steering systems. This hydraulic linear actuator integrates a high-performance reversing pump and a marine hydraulic cylinder, ensuring smooth and efficient operation. The unit mounts directly onto the rudder tiller-arm or quadrant, allowing seamless autopilot engagement while enabling free rudder movement when the system is not in use.
This actuator offers a robust solution for offshore mariners, featuring a solenoid valve that locks the cylinder when autopilot is engaged. A compact, translucent oil reservoir simplifies fluid level checks, while its mechanical simplicity—comprising only five moving parts—enhances reliability and ease of service. Pre-filled with hydraulic oil from the factory, it requires no additional plumbing, making it a hassle-free addition to your vessel’s autopilot system.
Technical Specifications
- Power Supply: 12vDC
- Average Current Draw: 4-6 amps
- Maximum Current Draw: 19 amps
- Cylinder Bore Diameter: 38mm
- Variable Flow Rate: 5000cc – 1 litre/min
- Stroke Length: 178mm (7 inches)
- Hardover Time (Suggested): 12-14 seconds
- Maximum Rudder Torque: 750Nm (6,630 lbin)
- Peak Thrust: 400Kg (882lbs)
- Maximum Boat Length: 14m (45 feet)
Product Dimensions
- Stroke Length: 178mm (7 inches)
- Cylinder Bore: 38mm
Highlights
- Compact and efficient hydraulic linear actuator for autopilot systems
- Designed for mechanical steering systems in marine applications
- Solenoid valve ensures seamless autopilot engagement and disengagement
- High-strength hydraulic cylinder with smooth operation
- Small translucent oil reservoir for easy fluid level monitoring
- Five moving parts for maximum reliability and low maintenance
- Factory pre-filled with hydraulic oil—no additional plumbing required
Variations List
- OCTAF1012LAM7 – Stroke Mounted Pump

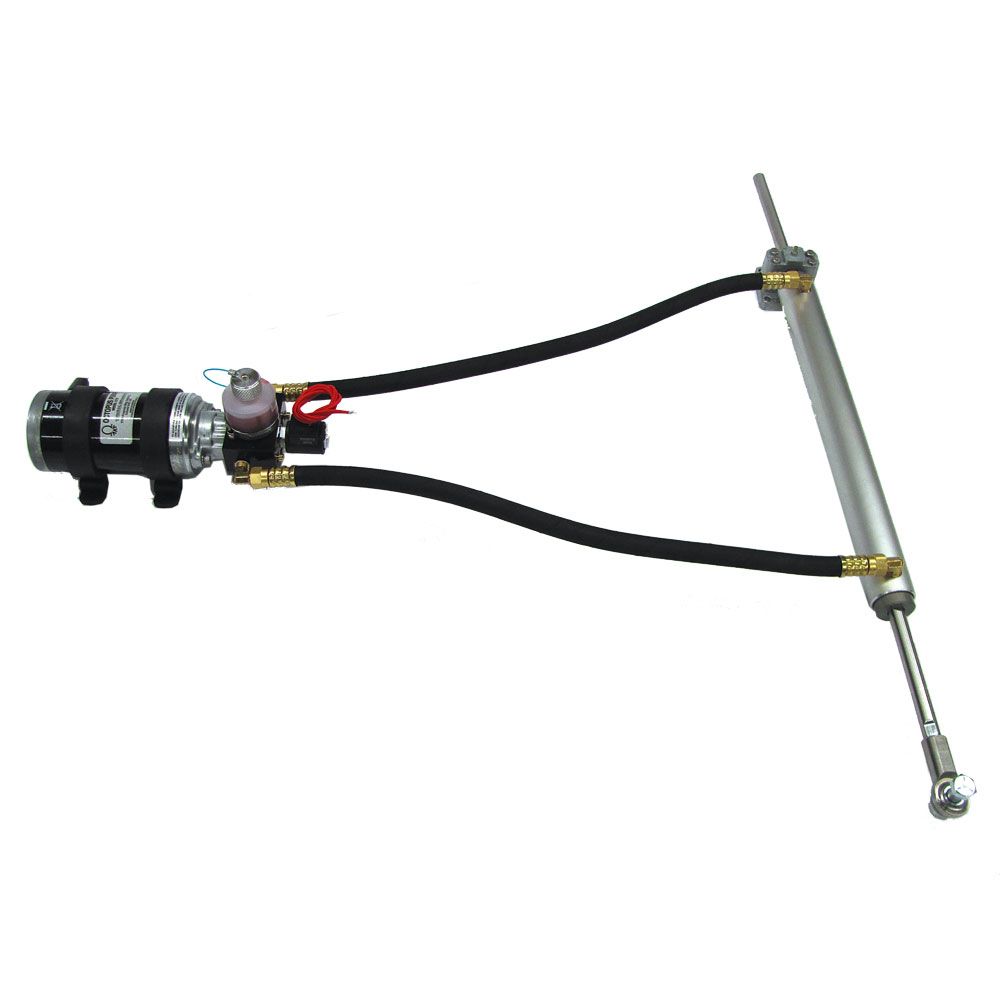

- OCTAF1012LAR7 – Stroke Remote Pump
This high-performance autopilot drive provides mariners with a reliable and efficient steering solution, ensuring smooth and accurate course corrections in demanding offshore conditions.
