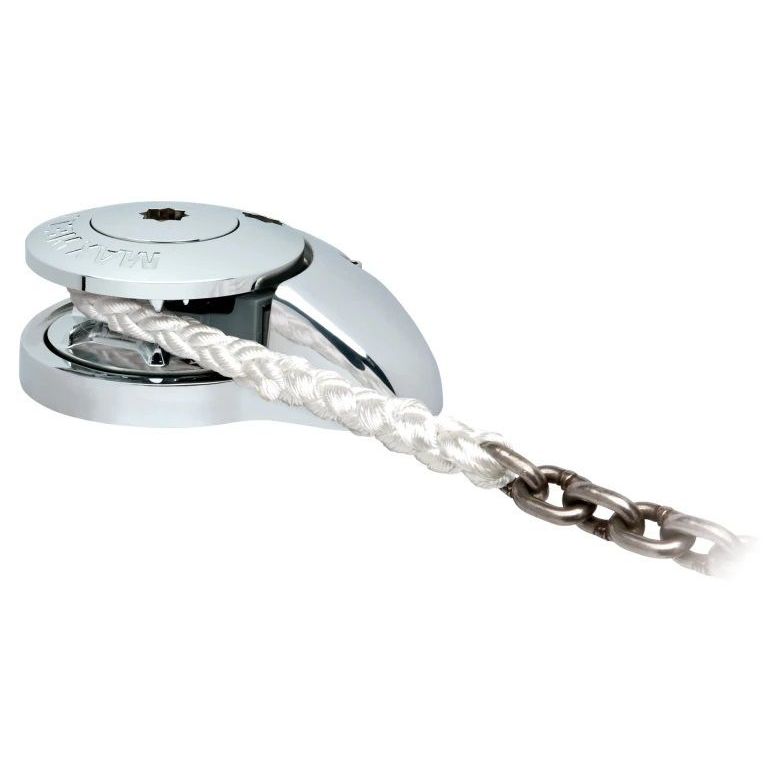

Maxwell - RC8 Vertical 12V Windlass
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Effortless Anchor Management with Advanced Rope and Chain Handling
The Maxwell RC8-6 Vertical Windlass is a high-performance solution designed for smooth and efficient anchor deployment and retrieval. Engineered with a durable combination of AISI 316 stainless steel and chromed bronze, this windlass ensures longevity and corrosion resistance in harsh marine environments.
The innovative Wave Design™ chainwheel accommodates a wide range of chain pitch differences, providing superior holding power and smooth operation. With a user-friendly two-piece installation system, the RC8-6 allows for quick retrofitting without requiring disassembly. The heavy-duty stainless steel pressure arm, supported by a robust preloaded spring, ensures reliable rope/chain engagement for maximum control and efficiency.
This windlass is fully capable of handling both rope and chain rodes, offering seamless performance in all anchoring conditions. The large through-deck hawse pipe throat facilitates easy rope and chain passage, while the self-aligning gearbox and multiple mounting positions provide flexible installation options.
For added convenience and safety, the RC8-6 includes manual override functionality and a ‘Free Fall’ feature, allowing for quick anchor deployment in emergencies. The sealed oil bath and marine-grade hard-anodized alloy gearbox maximize output and durability, ensuring reliable operation trip after trip.
Technical Specifications
- Motor Power: 600W
- Maximum Pull/Lift: 350 kg
- Voltage: 12V DC
- Chain Compatibility: 6-7 mm (1/4") short link
- Rope Compatibility: 12 mm (1/2") three-strand or 8-braid (plait)
- Installation Type: Vertical
- Weight: 12.5 kg

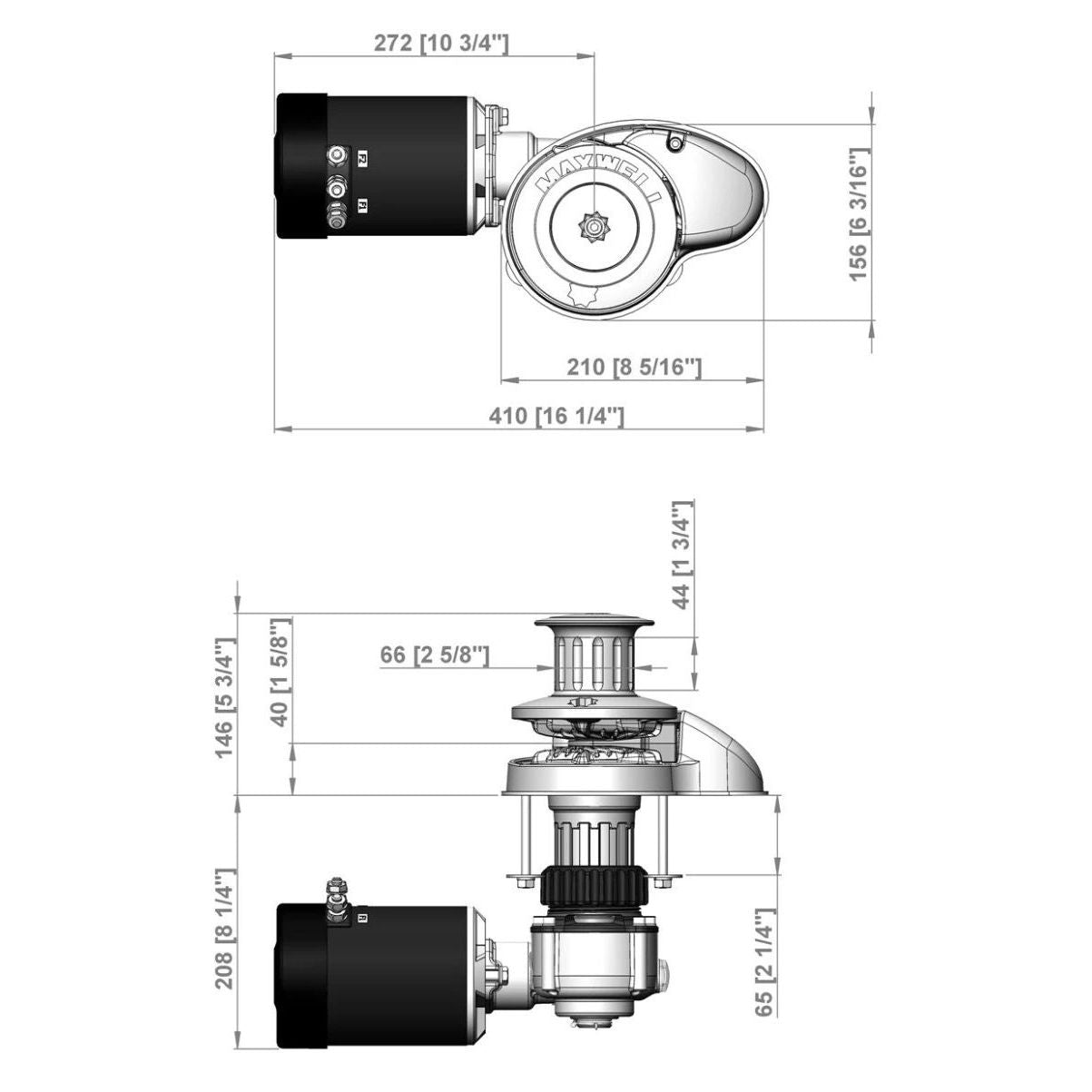

Product Dimensions
- Designed for installation through various deck thicknesses with a unique spacer tube system
Highlights
- Durable Construction: Stainless steel (AISI 316) and chromed bronze for superior corrosion resistance
- Versatile Rope & Chain Handling: Accommodates 6-7 mm (1/4") chain with 12 mm (1/2") rope
- Easy Installation: Two-piece system for quick retrofitting without disassembly
- Reliable Performance: Heavy-duty pressure arm and preloaded spring for maximum control
- Manual Override & Free Fall: Emergency deployment with included crank/clutch handle
- Self-Aligning Gearbox: Ensures optimal positioning for seamless operation
- Sealed Gearbox: Marine-grade, hard-anodized alloy construction for durability
Variations List
- RC8612V – Compatible with 1/4" chain & 1/2" line
- RC8812V – Compatible with 5/16" chain & 5/8" line
What's in the Box
- RC8-6 12V Windlass
- Breaker panel
- Reversing solenoid
- Up/Down panel switch
- Clutch release handle
Additional Notes
For optimal performance and longevity, Maxwell windlasses should always be used with a chain stopper or alternative snubbing device. This prevents unnecessary strain on the windlass while at anchor and secures the anchor in the raised position when underway.
