Wichard Marine - Not Self-Locking D Shackle - 14mm Diameter, 9/16"

Maximize Security and Performance with Wichard's Non Self-Locking D Shackle

Introducing the Wichard Non Self-Locking D Shackle, meticulously designed for robustness and reliability in challenging marine environments. With a diameter of 14mm and a length of 9/16", this shackle is forged from the highest quality 316L stainless steel, ensuring exceptional durability and corrosion resistance. The pin's unique locking mechanism is engineered to prevent loosening from vibrations, providing a secure connection in all conditions. This D shackle is not self-locking, offering versatility for various applications while maintaining outstanding working and breaking loads.

• Forged from grade 316L stainless steel for maximum corrosion resistance.
• Unique pin locking mechanism to prevent loosening due to vibrations.
• High working load of 5290 lbs (2400 kg) and breaking load of 17630 lbs (8000 kg) for superior reliability.
• CE marked, adhering to stringent quality standards for industrial applications.

Whether for standard shackle applications or specific attachment tasks such as blocks and heads, the Wichard Not Self-Locking D Shackle excels in providing a secure and reliable solution. Its comprehensive specifications include a working load limit (WLL) of 3520 lbs (1600 kg) for industrial applications, highlighting its robustness and versatility. Embrace unmatched performance and safety with Wichard's dedication to excellence.

Technical Specifications:

• Material: 316 Stainless Steel Grade

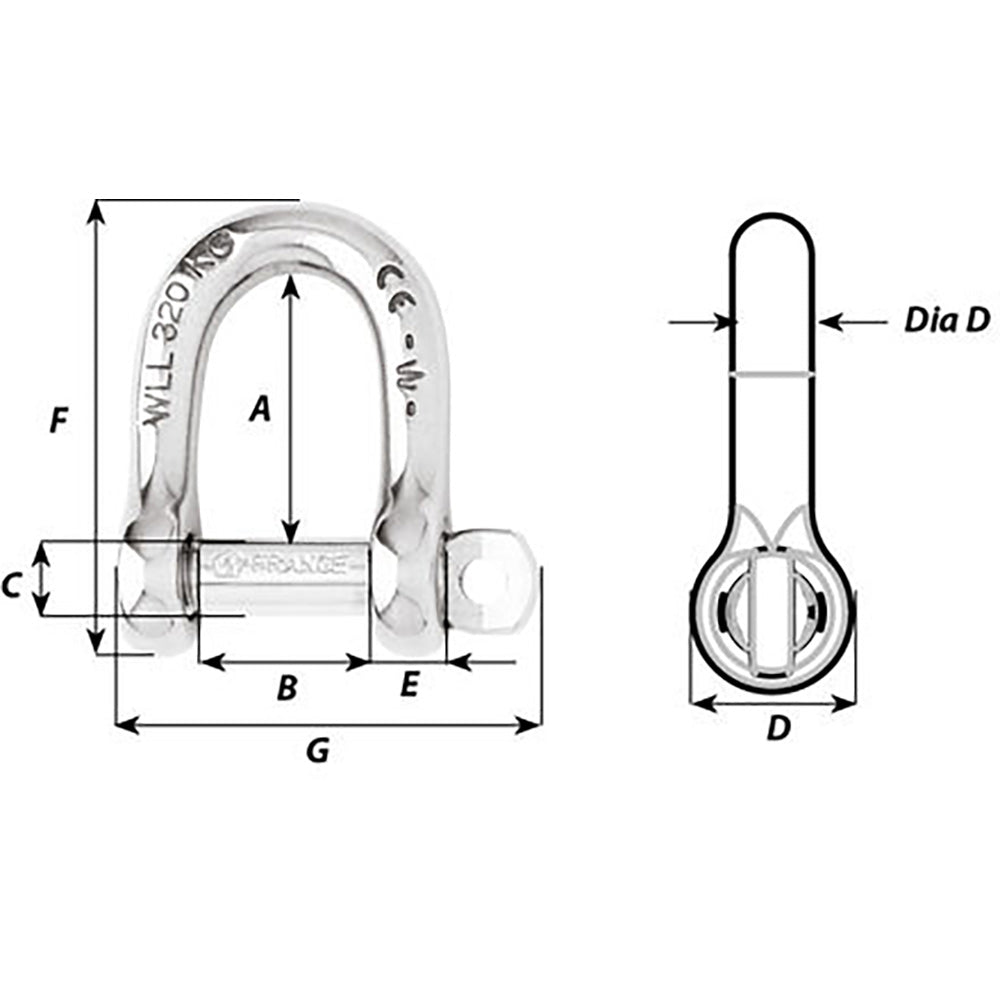

• Dimensions: A - 1 27/32" (47 mm), B - 1 7/64" (28 mm), C - 35/64" (14 mm), D Diameter - 35/64" (14 mm)
• Weight: 0.688 lb (312 g)
• Working Load: 5290 lb (2400 kg), WLL: 3520 lb (1600 kg), Breaking Load: 17630 lb (8000 kg)

Engineered for both nautical and industrial applications, the Wichard Non Self-Locking D Shackle stands as a testament to Wichard's commitment to safety, durability, and innovation. Its precise design and construction ensure it meets the needs of the most demanding applications, making it an indispensable tool for professionals and enthusiasts alike.

• 1262996_qbp969485.pdf
