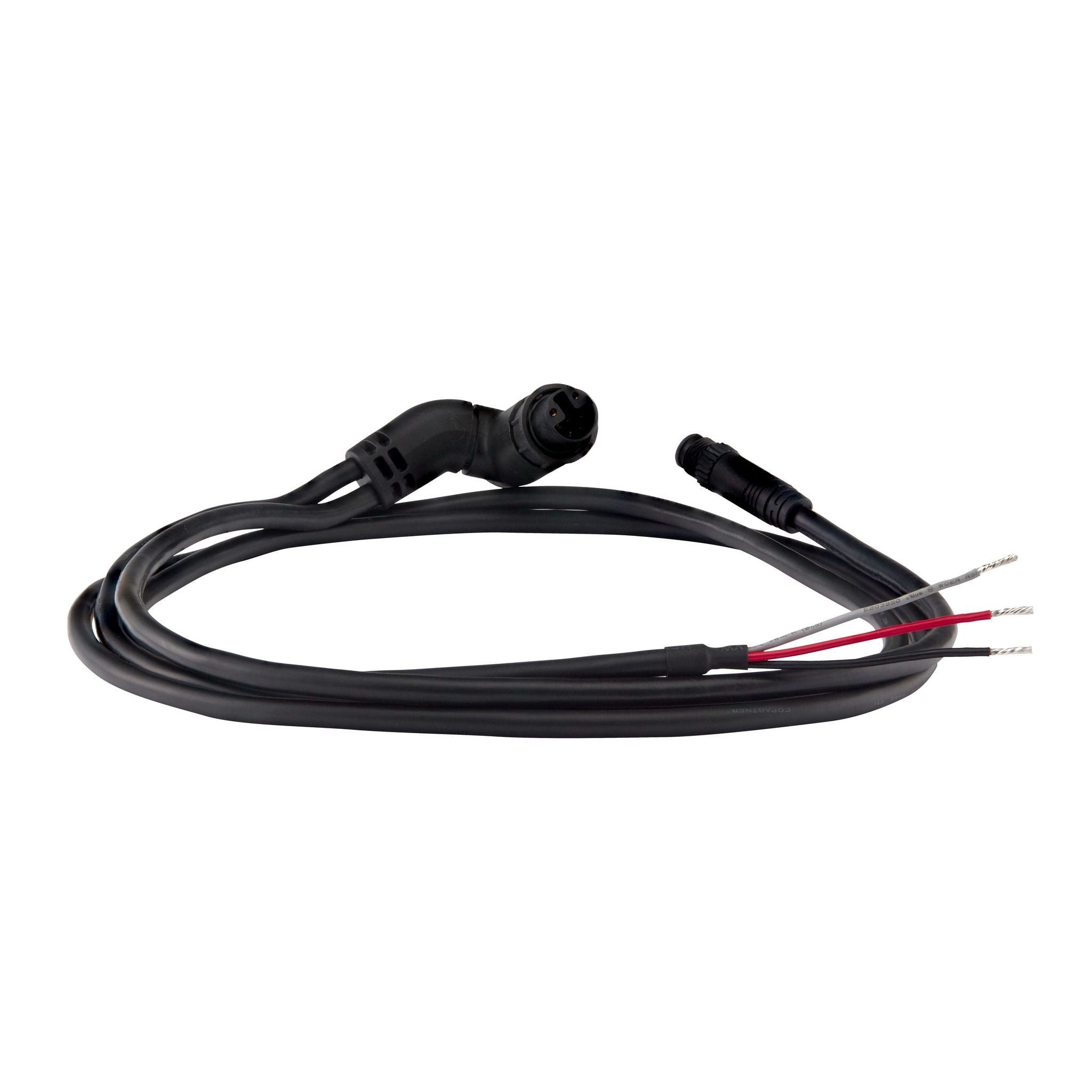

Raymarine Axiom Power and NMEA 2000 Cable, 1.5m, Right Angle

Overview

The Raymarine R70561 is a 1.5 m (4.92 ft) right angled power and DeviceNet combined cable for compatible Raymarine Axiom displays. It handles the display’s power connection and NMEA 2000 network connection through a single cable assembly, which helps keep the helm wiring cleaner and easier to service.

The 90° connector is useful behind flush mounted displays, electronics pods, and tight console spaces where a straight cable may press against a bulkhead or make the wiring bend too sharply. For refits, replacement work, or a new Axiom installation, it gives installers a compact cable route without changing the basic power and network layout of the system.

Key features

• 1.5 m (4.92 ft) cable length for short helm runs and tidy routing behind the display.
• Right angled 90° connector helps reduce rear clearance needs in dash, pod, and console installations.
• Combined power and DeviceNet connection supports power input and NMEA 2000 network integration through one cable assembly.
• Made for compatible Raymarine Axiom multifunction displays used in marine electronics systems.
• Useful as a replacement cable or for installations where a straight cable exit is hard to route cleanly.

Compatibility and fit

This cable is intended for compatible Raymarine Axiom displays that use the combined power and DeviceNet style connection. Before installation, match the cable to the display model and confirm that the existing power feed, fuse protection, and NMEA 2000 backbone layout follow the requirements for the display and the vessel’s electronics system.

Installation and routing

The right angled connector helps the cable leave the back of the display with less strain, especially on boats where the display sits close to a console wall or inside a compact helm pod. Route the cable where it will not be pinched by panels, steering gear, hatch lids, or other service items, and leave enough slack for future display removal.

For a clean installation, keep power wiring supported and separated from sharp edges, high heat, and moving equipment. The NMEA 2000 side should be tied into a properly terminated backbone rather than treated as a loose point-to-point lead.

Use on board

This cable is a practical match for helm upgrades, replacement display wiring, and refits where space behind the electronics panel is limited. It suits small center consoles, cruising boats, fishing boats, and sailboat nav stations where a neat cable exit makes the display easier to mount and service.
