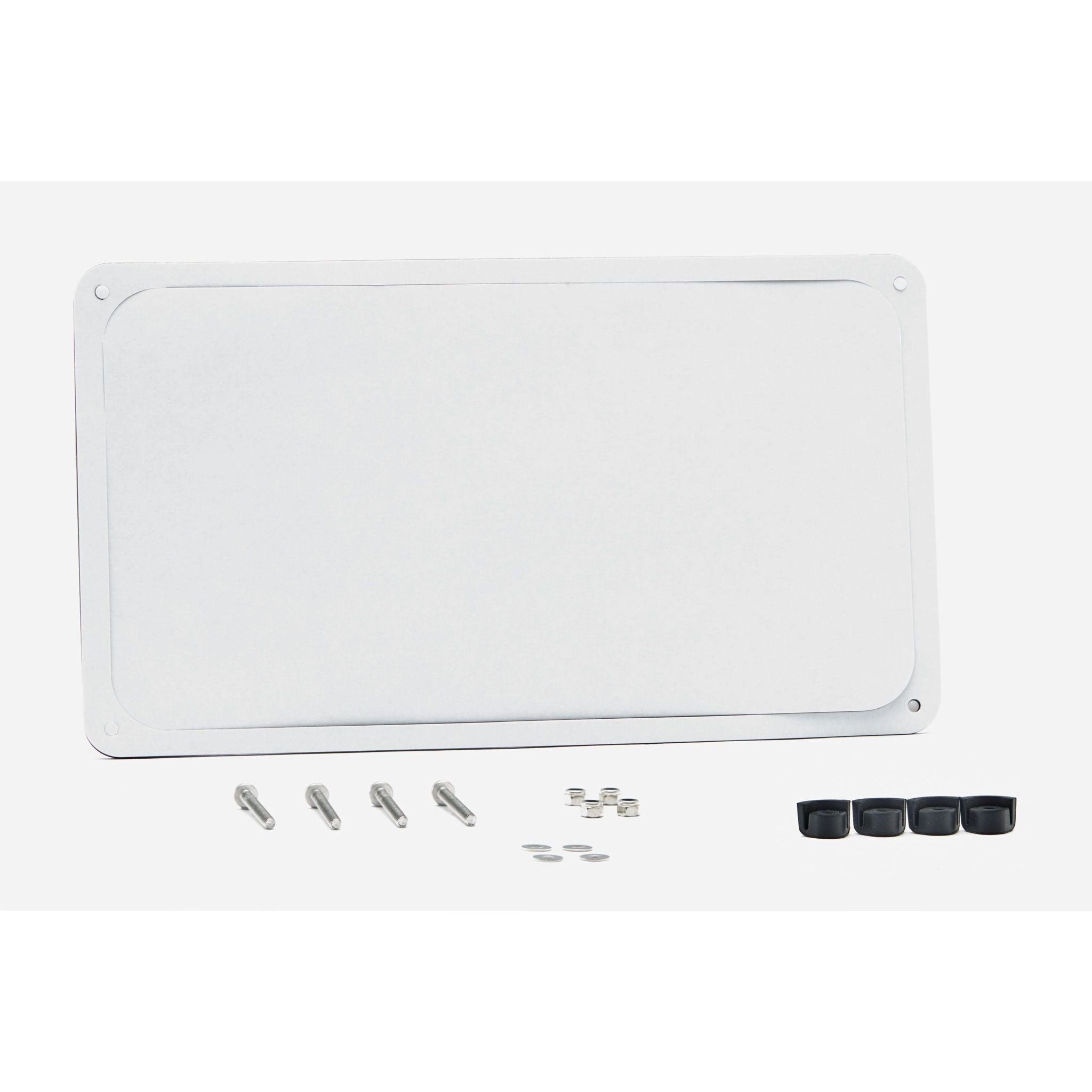

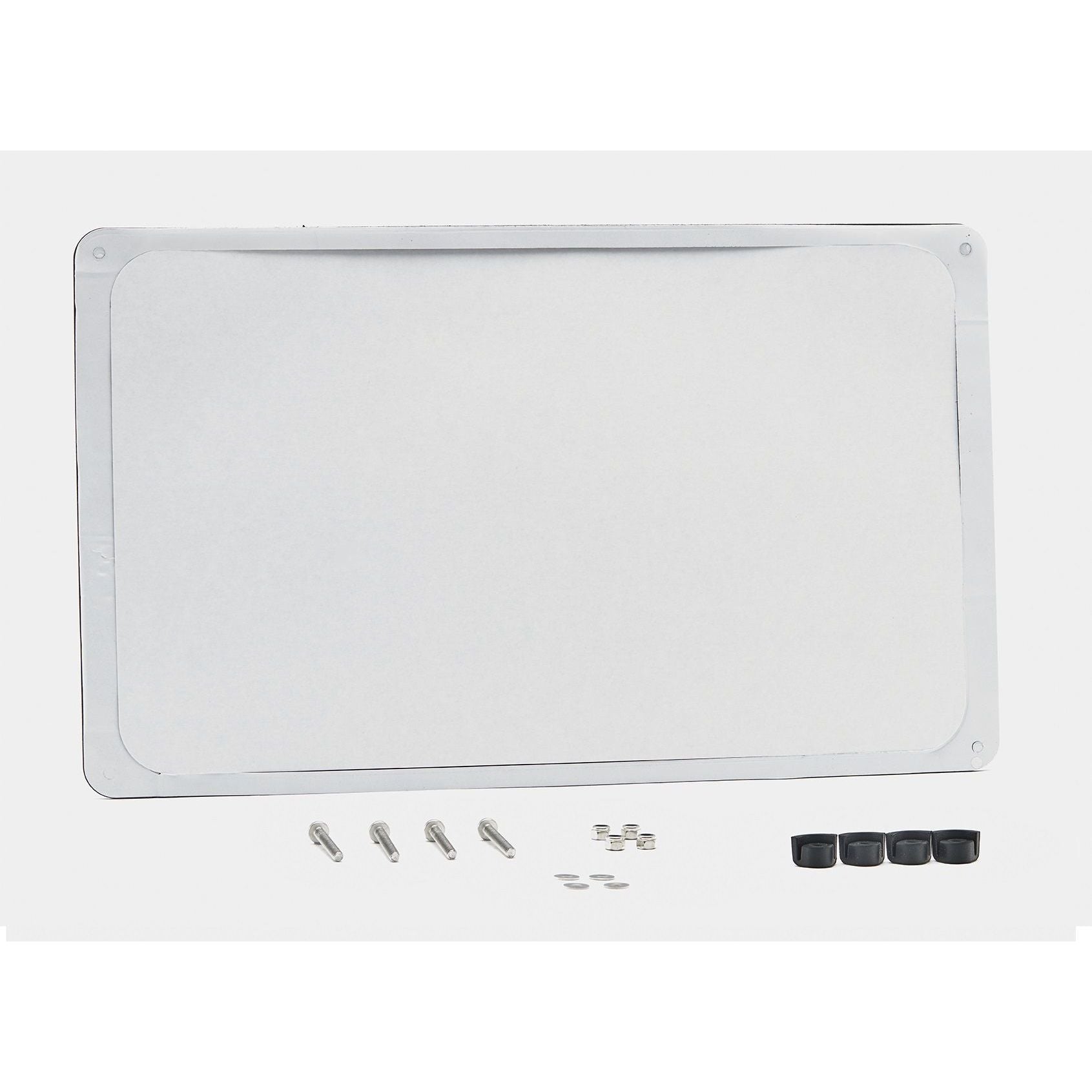

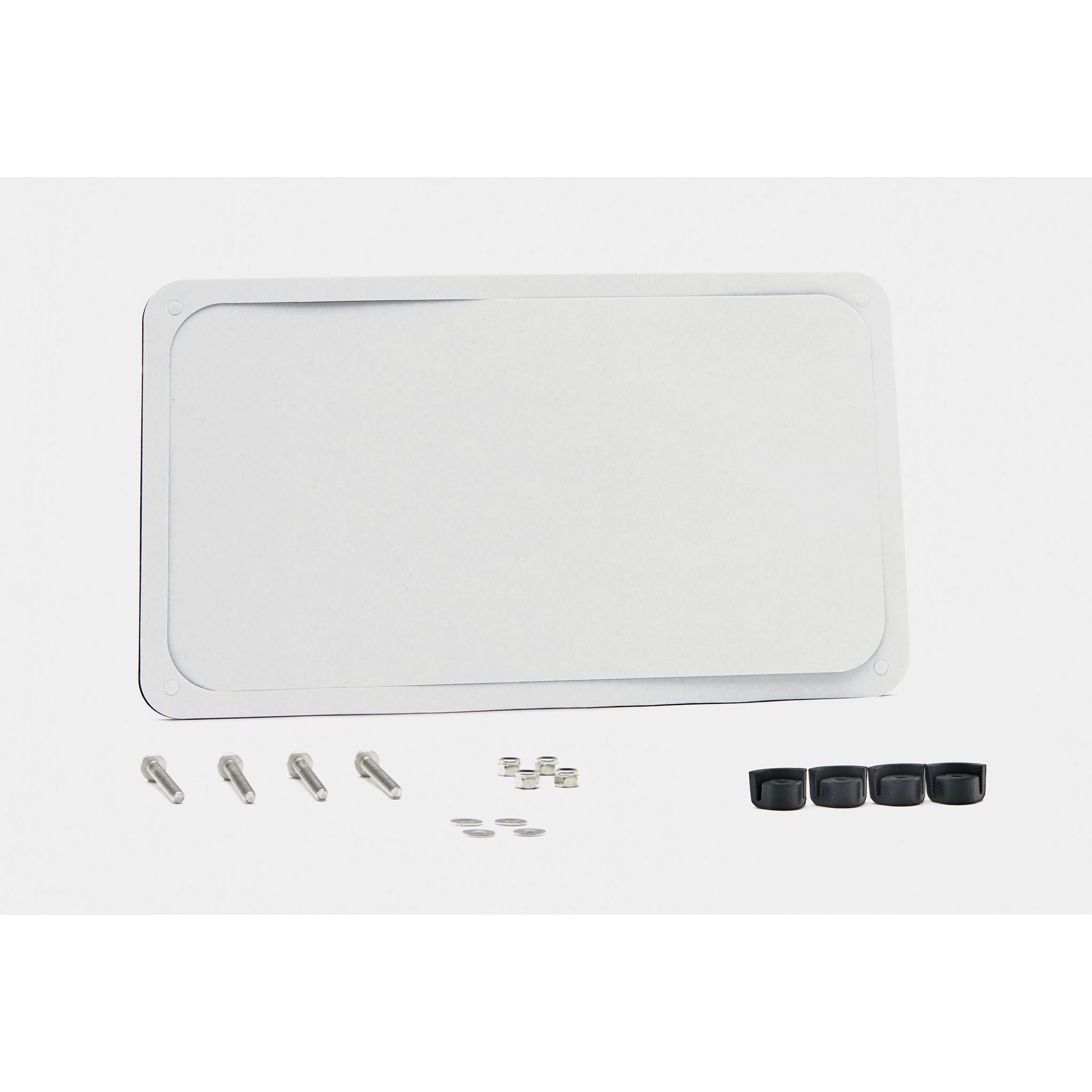

Raymarine Element Display Surface Mount Kit

Overview

The Raymarine Element Surface Mount Kit is a size-specific kit for installing a Raymarine Element display into a helm, dash, or electronics panel. It is offered for Element 7-inch, 9-inch, and 12-inch displays, so the kit must match the display size before installation.

This kit is used when the display will be surface mounted rather than held on a trunnion bracket. A surface mount installation requires one cutout hole and access behind the mounting surface, with the display glass and bezel sitting proud of the panel once fitted.

Key features

• Made for Raymarine Element displays in 7-inch, 9-inch, and 12-inch screen sizes.
• Supports a surface-mounted installation at the helm, dashboard, or electronics panel.
• Helps create a fixed display position that suits boat dashboards where a bracket mount is not preferred.
• Size-specific fit helps the panel opening and display face match the selected Element screen size.
• Suitable for new electronics installs, helm refits, and replacing a bracket-mounted layout with an integrated panel installation.

Variants

This product is offered in multiple configurations for different Raymarine Element display sizes.

The display size is the attribute that changes between variants. Each version is matched to a specific Element screen size, while the product function remains the same: surface mounting the display into a suitable helm or panel location.

• A80553: For Element 7-inch displays. This version is sized for the smaller Element unit, which suits compact helms and panels with limited space.
• A80554: For Element 9-inch displays. This version matches the mid-size Element display often used where a larger screen is needed without taking over the helm layout.
• A80555: For Element 12-inch displays. This version fits the largest Element display size and is intended for panels with enough space for a wider screen.

Installation and fit

Before cutting the panel, confirm the exact display size and use the correct installation template for that Element model. The mounting area should be flat enough for the display to sit evenly and should leave enough clearance behind the surface for the body of the unit, cables, and service access.

This kit is a good match for boat owners, installers, and refit projects where the Element display needs to look integrated into the helm instead of standing on a bracket. It is especially useful on center consoles, pilothouse dashboards, and dedicated electronics panels where a fixed viewing position is preferred.
