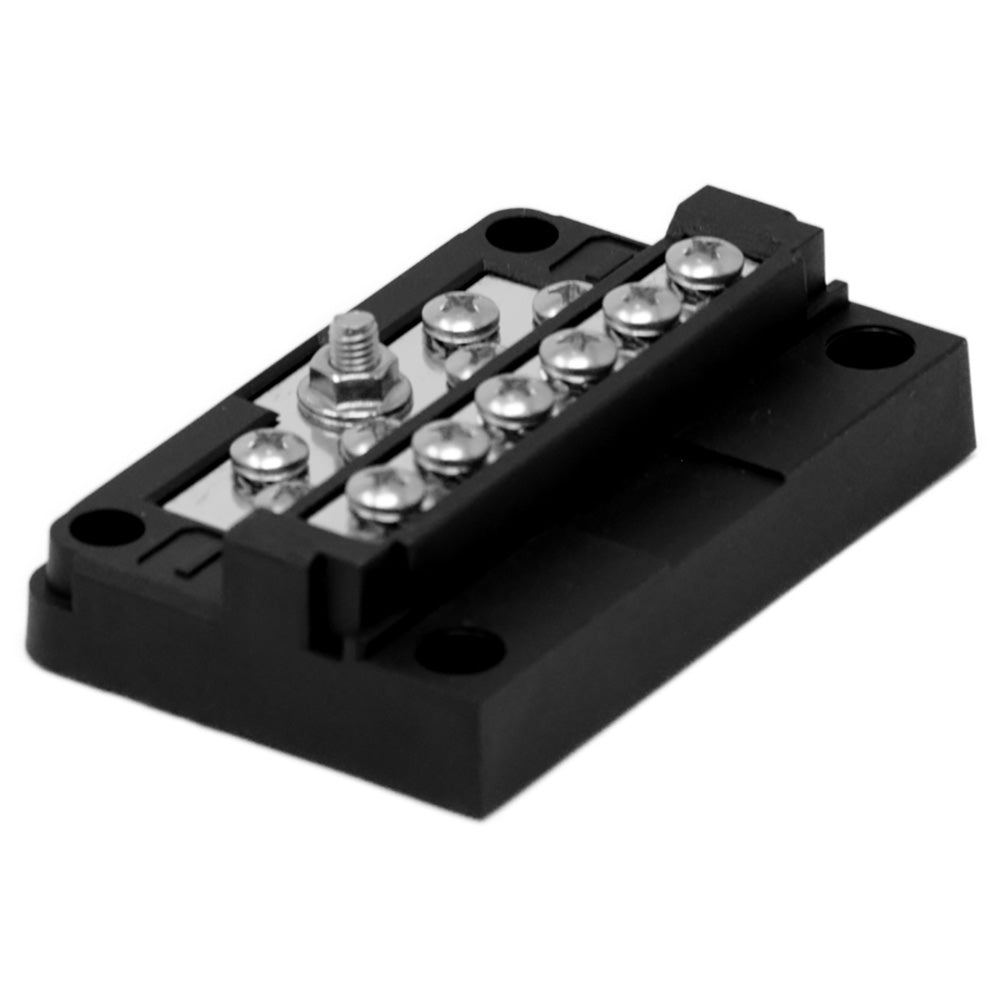

Egis Mobile Electric - RT Screw Terminal 12 Circuit Dual Lever Bus Bar

Reliable and Compact Grounding Solution for Marine and Automotive Applications

The Egis RT Screw Terminal 12 Circuit Dual Lever Bus Bar is designed for seamless integration with RT fuse blocks, or it can be used as a standalone ground bus. This compact and well-constructed bus bar ensures reliable ground connections and is perfect for marine and automotive applications where space and efficiency are paramount.

General Description

The 12-circuit block provides a robust and reliable ground connection, making it an essential component for any marine or automotive electrical system. With RT series connection compatibility, it allows for a smaller installation footprint and convenient negative terminal access when installed with a fuse block application. This versatile bus bar is engineered for high performance in demanding environments, ensuring the reliability and safety of your electrical systems.

Key Features and Advantages

• Bullet-Proof Construction: Designed with high-temperature materials and stainless steel self-locking hardware, allowing mounting anywhere on the vehicle.
• Seamless Integration: Can be used as a standalone ground bus or assembled with existing RT series fuse block lines.
• Compact and Efficient: The 12-circuit design ensures ground connection reliability within a compact footprint.
• High-Performance Materials: Stainless steel attachment hardware and plated copper alloy bus bar conductor maximize conductivity and corrosion resistance.
• Engineering-Grade Composite Insulators: Supports high-temperature applications, making it suitable for engine compartments and other harsh environments.

Bullet Points Summary

• Bullet-proof construction with high-temperature materials.
• Seamless integration with RT fuse blocks or standalone use.
• Compact 12-circuit design for reliable ground connections.
• Stainless steel self-locking hardware for long-lasting installations.
• Plated copper alloy bus bar conductor maximizes conductivity and corrosion resistance.
• Engineering-grade composite insulators for high-temperature applications.

Specifications

• Maximum Current (Entire Block) Amps: 100
• Maximum Current (Per Circuit) Amps: 30
• Max Output Wire Size: #10 AWG
• Voltage Range VDC: 0-36
• Number of Fuse Positions: 12
• Output Terminal Connection Ring Terminal Size: M4 / (#8)

Focal Features

Robust Materials For Harsh Environments

All attachment hardware is constructed of stainless steel with self-locking mechanisms for long-lasting installations. A plated copper alloy bus bar conductor withstands corrosion and maximizes conductivity. Engineering-grade composite insulators support high-temperature application exposure, such as in engine compartments.

Seamlessly Integrates With RT Fuse Blocks

It can be installed individually on its own or assembled to the end of a 6, 12, or 18-position RT Series fuse block for a more compact overall footprint.

Product Dimensions

• Length: [Add Length Dimension]
• Width: [Add Width Dimension]
• Height: [Add Height Dimension]

The Egis RT Screw Terminal 12 Circuit Dual Lever Bus Bar is the perfect solution for ensuring reliable ground connections in any marine or automotive electrical system. Its compact design, high-quality materials, and seamless integration with RT fuse blocks make it an essential component for professionals seeking efficient and dependable electrical connectivity.
