Raritan - Water Heater 120 VAC
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Superior Marine Water Heating Performance
The Raritan 1700 Series Water Heater is designed to deliver reliable hot water for onboard galleys and showers, ensuring comfort while at sea. Engineered with dense foam insulation, it provides superior heat retention compared to traditional fiberglass insulation, reducing energy consumption and extending warm water availability. The tank is safeguarded by a 75 PSI temperature and pressure relief valve, ensuring safe operation under marine conditions.
The cylindrical design enhances the tank’s durability, allowing it to withstand higher pressure compared to cube-shaped tanks. For added convenience, heat exchanger models can be integrated with the engine’s cooling system, supplying hot water even when underway or when generator power is unavailable. The built-in heat exchanger is over seven feet long and evenly coiled throughout the tank, ensuring rapid and efficient heating.
Advanced Safety and Efficiency Features
The Raritan 1700 Series Water Heater includes an ignition-protected thermostat for enhanced safety. Factory-set at 120°F, the thermostat can be adjusted between 110°F and 160°F, with a safety shut-off limit at 190°F. Designed for straightforward installation, all models feature plumbing connections on the same side, making integration into onboard systems seamless.

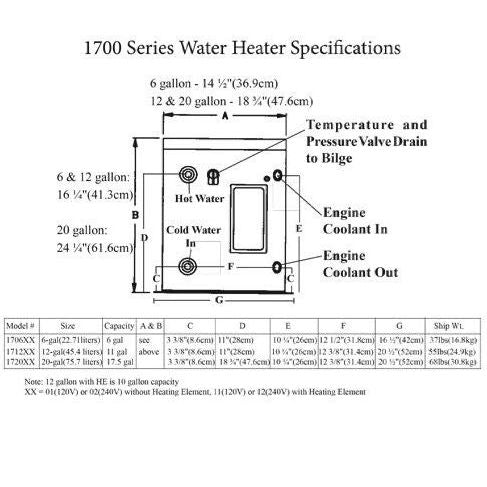

Product Dimensions
- 6-Gallon Model: 14 1/2" (36.9 cm) Diameter × 16 1/4" (41.9 cm) Height
- 12-Gallon Model: 18 3/4" (47.6 cm) Diameter × 16 1/4" (41.9 cm) Height
- 20-Gallon Model: 18 3/4" (47.6 cm) Diameter × 24 1/4" (60.6 cm) Height
- Mounting Flange: Adds an additional 2" to the base diameter
Premium Marine-Grade Durability
The Raritan 1700 Series Water Heater is built with a glass-lined steel tank, offering better durability and corrosion resistance than stainless steel alternatives. An attractive polymer jacket provides additional protection against damp marine conditions.
Key Features and Benefits
- Easy retrofit installation to most onboard pressure systems
- Built for long-lasting performance in harsh marine environments
- Cylindrical tank design withstands higher pressure than cube-shaped alternatives
- Glass-lined steel tank ensures durability and efficient heat retention
- Corrosion-resistant polymer jacket for enhanced longevity
- Adjustable ignition-protected thermostat with safety shut-off
- Environmentally friendly, CFC-free foam insulation for superior heat retention
- Replaceable magnesium anode protects the tank and neutralizes water acidity
- Backed by a five-year limited tank warranty and a two-year limited overall warranty
- Each unit is hand-assembled, individually tested, and supported by Raritan’s renowned technical service team
Available Variations
- 6-Gallon Variants:
- Standard Model (170601)
- With Heat Exchanger (170611)
- 12-Gallon Variants:
- Standard Model (171201)
- With Heat Exchanger (171211)
- 20-Gallon Variants:
- Standard Model (172001)
- With Heat Exchanger (172011)
The Raritan 1700 Series Water Heater is a trusted choice for boat owners seeking reliable, energy-efficient, and long-lasting hot water solutions on board.
