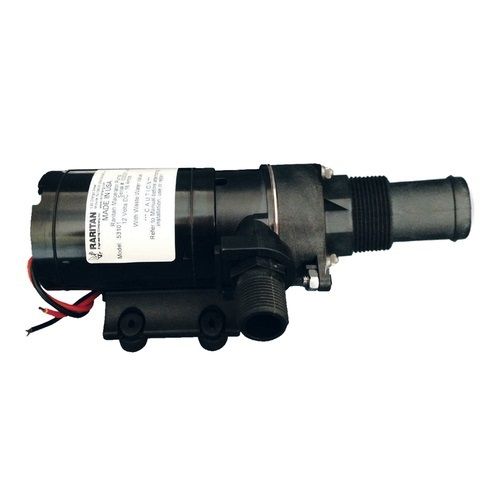

Reliable and Efficient Macerator Pump for Marine Use
Macerator pumps are essential for efficient waste and fluid management on a boat, ensuring smooth operation when it matters most. The Raritan 12V Macerator Pump with Barb Adapter is designed to provide superior reliability and performance. Whether used for emptying holding tanks or draining fish boxes, this pump is built to withstand the harsh marine environment.
With a focus on durability, Raritan has developed a macerator pump that features corrosion-resistant stainless steel bolts, an advanced rubber impeller for extended dry-running capability, and a smart macerator control system to enhance performance and longevity.
Advanced Features for Enhanced Performance
One of the standout innovations in this macerator pump is its proprietary rubber impeller compound, which allows for a longer dry-running time compared to standard macerators. This is crucial in marine environments where forgetting to turn off the pump can lead to rapid damage.
To further improve reliability, the optional Smart Macerator Control (SMC) offers key features such as:
- Dry-run protection – Automatically shuts off the pump when dry-running is detected, preventing burnout.
- Weekly impeller jog – If powered on, the pump will cycle the impeller once a week to prevent it from sticking, ensuring readiness when needed.
Easy Maintenance with Innovative Gate Valve Design
Servicing a macerator pump can be challenging due to space constraints and potential mess. Raritan addresses this with a built-in gate valve (available on select models), which allows users to safely remove the pump without spilling waste from the hose line. This feature minimizes cleanup time and simplifies maintenance.
Rugged Technical Specifications for Marine Applications
- Pump Type: Self-priming with flexible rubber impeller and stainless steel wear plate
- Impeller Material: Raritan proprietary nitrile compound
- Cutting Blade: Stainless steel double-cut design for efficient waste processing
- Seal: Viton lip with 316 stainless steel spring and case
- Motor: Permanent magnet type, fully enclosed with stainless steel shaft and thermal overload protection
- Housing: Powder-coated for durability, sealed ball bearings
- Ports:Inlet: 1-1/2" hose barb & 1-1/2" NPT Male
- Outlet: 3/4" MNPT
- Electrical Requirements:Voltage: 12V DC
- Max Power Draw: 12.3A at 20' head
- Approvals: Ignition protected, ISO 8846 compliant
- Maximum Head: 30'
- Lead Wires: 14 GA (Red and Black)
- Weight: 5 lbs
Compact and Efficient Design
- Dimensions: 10" L x 3.8" H x 5.8" D
Variations for Different Power Requirements
- 5310012 – 12V DC
- 5310024 – 24V DC
Both models provide the same high-performance maceration capabilities, with the option to integrate the Smart Macerator Control for enhanced functionality. The 5310112 and 5310124 models also include the built-in gate valve for easier maintenance and reduced mess.
This Raritan Macerator Pump is an ideal solution for boat owners seeking a dependable, efficient, and easy-to-maintain waste management system.
