Powerwinch - Class Windlass

Effortless and Fast Anchoring with Powerwinch Class Windlass

The Powerwinch Class Windlass is designed for seamless and efficient anchoring, providing one of the fastest and easiest ways to drop anchor. Featuring a patented Free-Fall System, this windlass allows anchors to descend up to four times faster than conventional methods, reaching the seabed in record time. With a simple push-button operation, users can release the anchor in just five seconds, eliminating the hassle of manual or powered-down deployment.

Built for marine environments, the above-deck design maximizes onboard storage, while a durable aluminum housing with an e-coat primer and polyester powder coat finish ensures long-lasting resistance to harsh elements. The rubberized deck gasket protects your vessel's surface, and stainless steel fasteners prevent corrosion for easy maintenance. Whether you're aiming for precise anchoring or preserving battery power with its ultra-smooth, low-amp motor, the Powerwinch Class Windlass is an essential upgrade for any serious boater.

Advanced Technical Specifications

• Boat Size Compatibility: Up to 36 feet
• Pulling Power: 775 lbs
• Retrieval Speed: 80 feet per minute
• Anchoring Speed: Up to 250 feet per minute
• Line Size & Type: 1/2" Premium Medium Lay Nylon
• Chain Size & Type: 1/4" Hi-test ACCO G4
• Rope & Chain System: Electro-plated stainless steel replaceable Rode-Glide
• Drive Mechanism: Stainless steel drive shafts for smooth and reliable operation
• Motor Efficiency: Uses fewer amps during retrieval (8-12 amps)

Optimized Dimensions for Space Efficiency

• Overall Unit Dimensions: 10-9/16" L x 7" W x 6-5/16" H
• Unit Weight: 22 lbs

Durable and Corrosion-Resistant Construction

The Powerwinch Class Windlass is engineered for longevity with high-quality materials that stand up to marine conditions:

• Aluminum housing with e-coat primer and polyester powder coat – Offers chip-resistant durability with no plastic components to crack.
• Heat-treated oil-impregnated gear system – Enhances smooth operation and gear longevity.
• Watertight seals – Provides superior protection against corrosion.
• Exclusive stainless steel rope and chain guidance system – Ensures consistent and reliable performance.

Key Benefits and Features

• Patented Free-Fall System – Drops anchors up to 300 feet per minute.
• One-touch helm control – Simple push-button operation for quick and easy anchoring.
• Above-deck design – Maximizes onboard storage space.
• Protect-a-deck rubberized gasket – Prevents scuffing and protects surfaces.
• Tapered back splice compatibility – Smooth transition between rope and chain.
• Thermal circuit breaker (25 amp auto-reset) – Ensures safety and reliable performance.

Available Variations

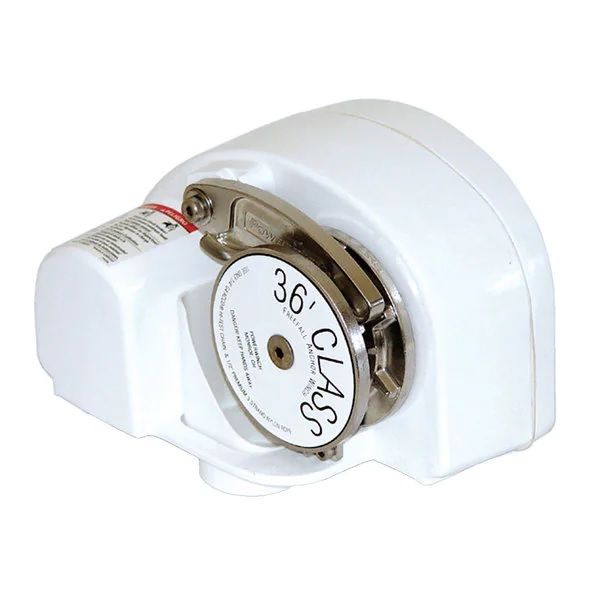

• P77736 – Boat Capacity: Up to 36 Feet

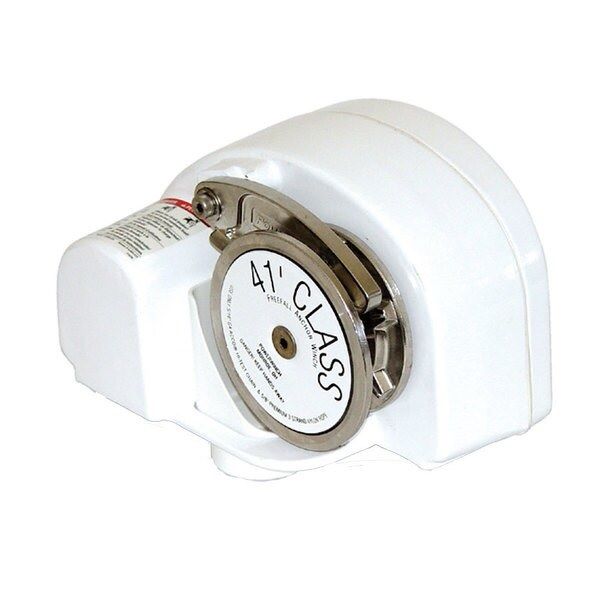

• P77741 – Boat Capacity: Up to 41 Feet

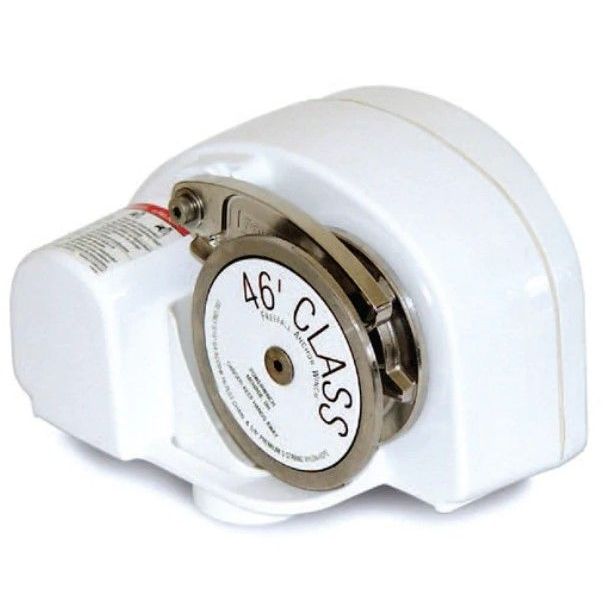

• P77746 – Boat Capacity: Up to 46 Feet

With its sleek design, compact footprint, and superior anchoring speed, the Powerwinch Class Windlass is the ultimate solution for hassle-free anchoring. Built to last, it ensures efficiency, durability, and precision every time you set sail.
