Ocean LED - Explore E6 XFM DMX Underwater Light
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Advanced Underwater Illumination with Precision Optics

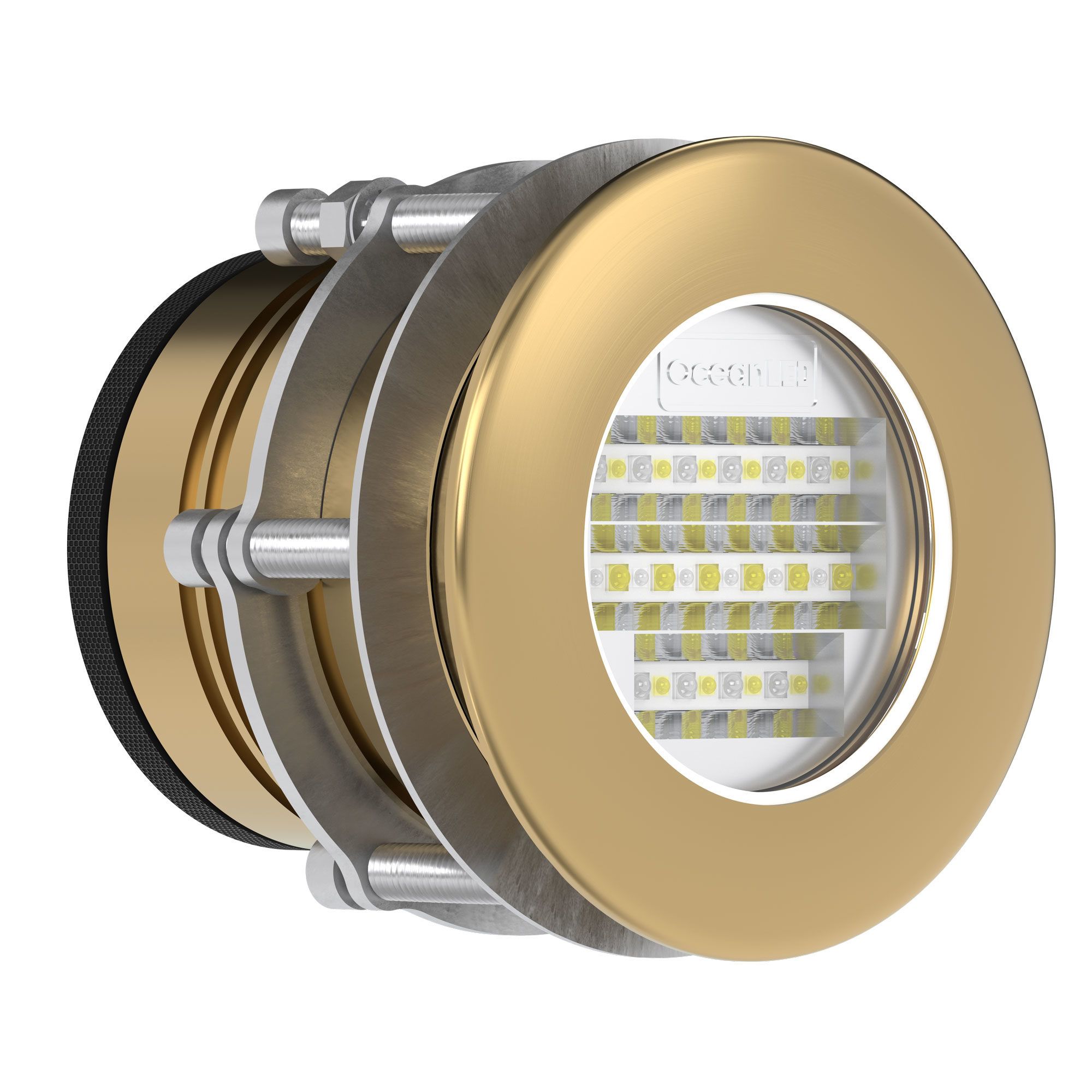

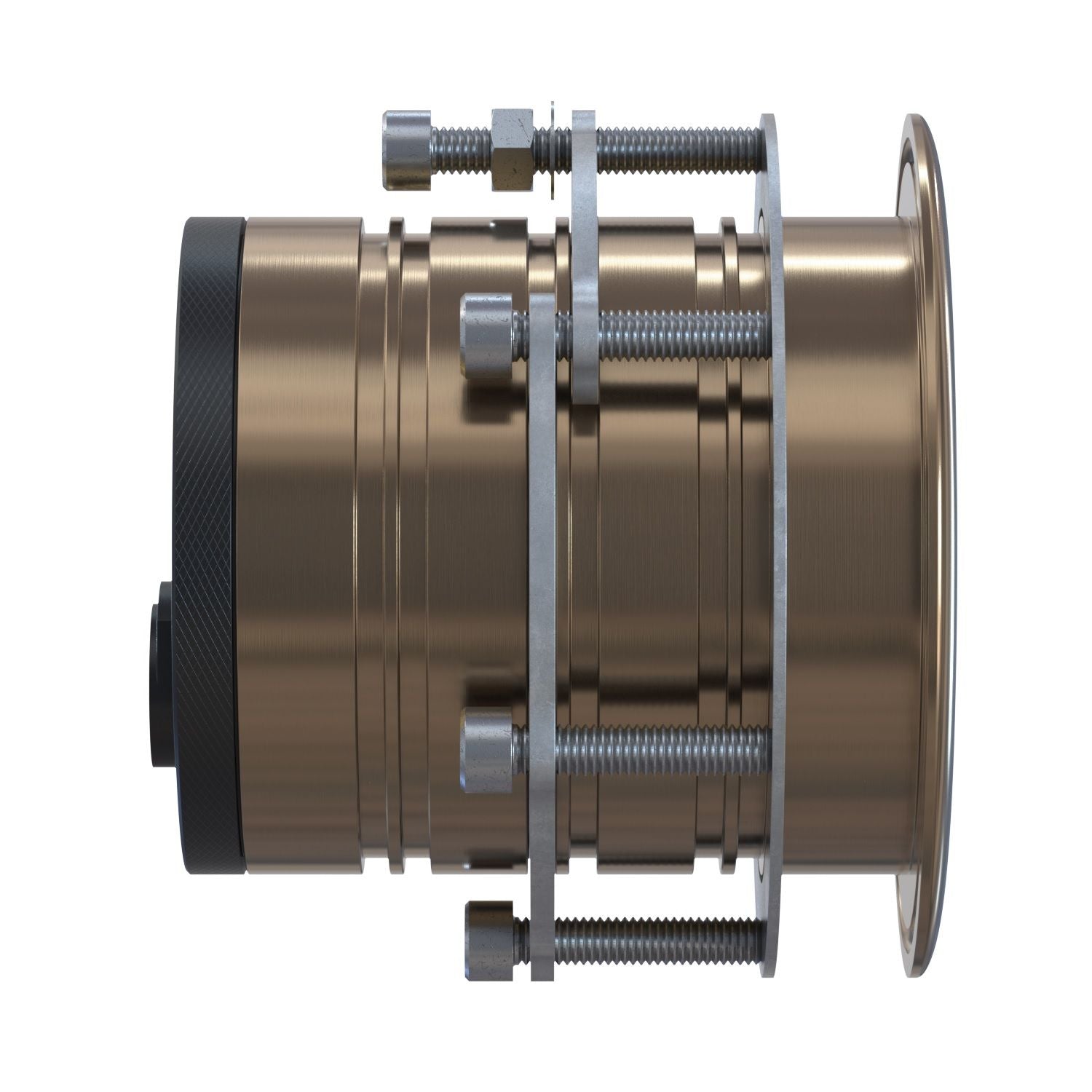

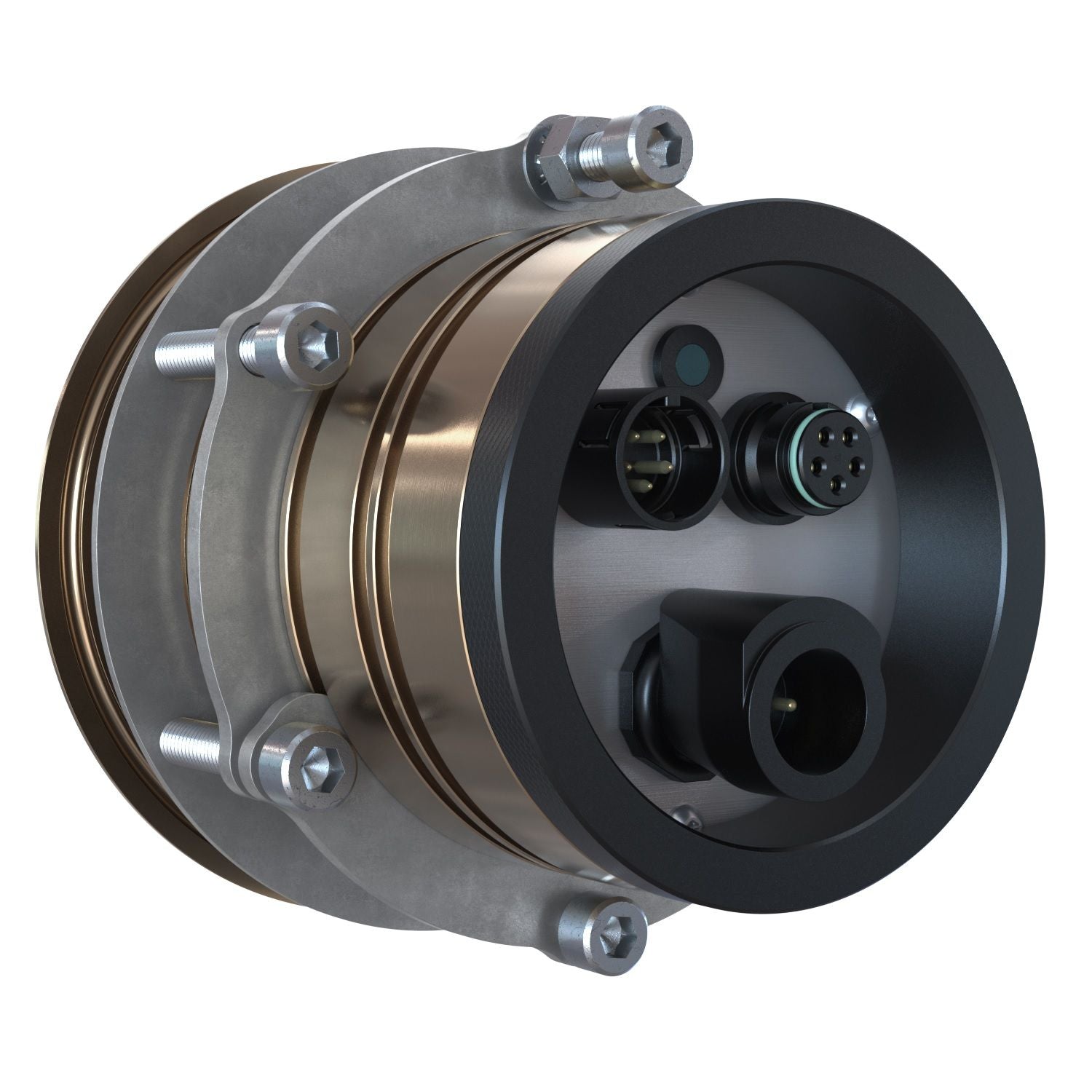

The OceanLED Explore E6 XFM is an innovative flush-mount underwater LED light designed for boaters seeking superior illumination. Featuring cutting-edge reflector optics, this light delivers a powerful, controlled beam that enhances underwater visibility and aesthetics. The 20° side beam creates a sharp blade of light that penetrates deep into the water, while the true 90° wide-angled top beam floods large areas with vibrant illumination.
Built for performance and ease of use, the Explore E6 boasts a compact design with an internal driver, reducing installation time and minimizing space requirements inside the vessel. The ultra-low-profile outer bezel enhances its sleek appearance while ensuring durability in marine environments.
With multiple control options, including simple toggle switches and DMX integration, users can easily switch colors, activate strobe mode, or synchronize with onboard audio for a dynamic lighting experience. Whether for visibility, aesthetics, or attracting marine life, the OceanLED Explore E6 is a top-tier choice for underwater lighting.
High-Performance Technical Specifications
- Lumens (Dual Color): 19,000
- Fixture Lumens (Dual Color): Up to 11,000
- Voltage Compatibility:DC: 10-32V
- AC: 100-240V
- Current Draw:DC (12V / 24V): 7.8A / 4.7A
- AC (110V / 230V): 1,190mA / 570mA
- Internal driver for seamless operation
- Recommended for boats 20m+
Optimized Installation and Compact Design
- Transom/Hull Spacing: 0.5 - 1.2m (2-4’)
- Installation Depth Below Waterline: 25 - 30cm (10-12”)
- Hole Cut-Out Diameter: 83mm (3.25”)
- Minimum Space Required Inside the Hull: 170mm (6.55”)
Durable and Marine-Grade Construction
- Material (Mounting Tube): AB2 Aluminium Bronze
- Material (Light Body): Aluminium
- Ultra-low-profile fixture (4mm profile)
Key Features at a Glance
- Innovative reflector optic technology for maximum light penetration
- True 90° beam angle for wide and even coverage
- Compact, flush-mount design with built-in driver
- Multiple control options: toggle switch, DMX integration
- Fish strobe mode for enhanced marine life attraction
- Simple and fast installation with reduced onboard space requirements
Available Variants
- E6009BW – Blue/White light color
- E6009CD – Full RGB color spectrum
Designed for boaters who demand both functionality and style, the OceanLED Explore E6 XFM is the ultimate marine lighting solution for enhancing visibility, ambiance, and safety on the water.
