Space-Saving and High-Performance Free-Fall Windlass

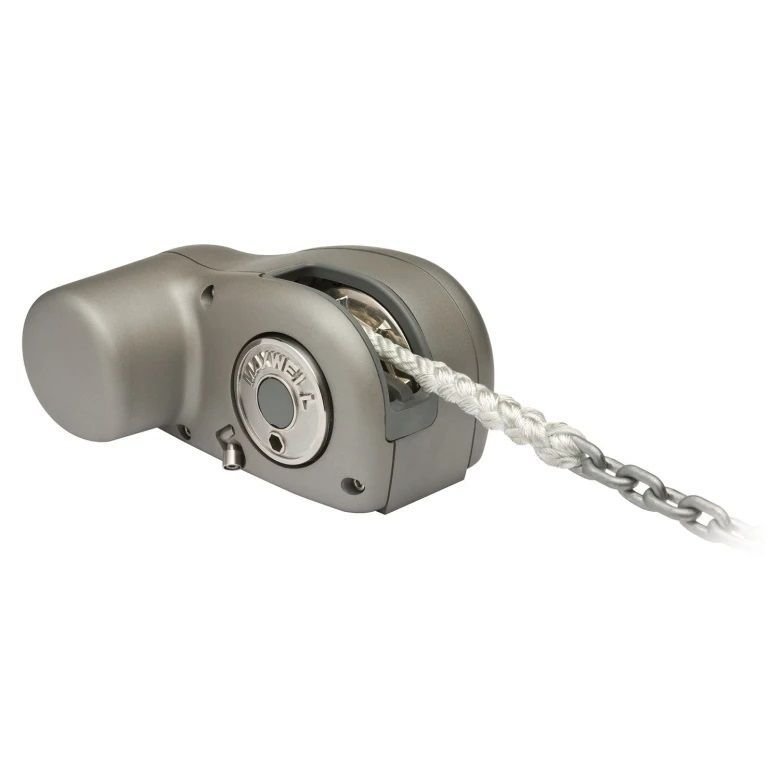

The Maxwell HRCFF612V Free Fall Horizontal Windlass is designed to deliver effortless anchor deployment and retrieval with a sleek, above-deck design. Engineered for durability and ease of use, this windlass is encased in a die-cast, marine-grade alloy case with a hard anodized finish, providing superior protection against harsh marine conditions. Its innovative free-fall function allows for rapid anchor deployment, while the high-speed retrieval system ensures smooth and jam-free operation. With integrated wiring and a simple bolt-down installation, this windlass offers a hassle-free setup, making it an excellent choice for boat owners looking for reliable anchoring solutions.
Robust Technical Features for Marine Use
- Watertight above-deck design protects internal components and simplifies routine maintenance
- Patented pressure arm system ensures a trouble-free transition between rope and chain
- High-efficiency spur gearbox with a non-backwind mechanism for enhanced safety
- Emergency free-fall function allows manual anchor deployment in case of power failure
- Dual-direction heavy-duty motor enables smooth anchor retrieval with remote control operation
- Integrated composite nylon through-deck hawse pipe for snag-free operation
Technical Specifications
- Motor Power: 400W
- Maximum Pull/Lift Capacity: 270 kg
- Chain Compatibility: 6-7 mm short link
- Rope Compatibility: 12 mm (1/2")
- Voltage: 12V DC
- Mounting Type: Horizontal
What's Included
- Maxwell HRCFF6 12V Windlass
- Circuit Breaker
- Reversing Solenoid (12V)
- Up/Down Switch Panel
- Clutch Release Handle
Available Variations
- HRCFF612V – Compatible with 1/4" Chain & 1/2" Line
- HRCFF812V – Compatible with 5/16" Chain & 9/16" Line
Designed for seamless performance and ease of installation, the Maxwell HRCFF612V windlass is a reliable choice for marine enthusiasts who demand efficiency and durability on the water.
