Victron Energy Wall Mount Display Enclosures

Overview

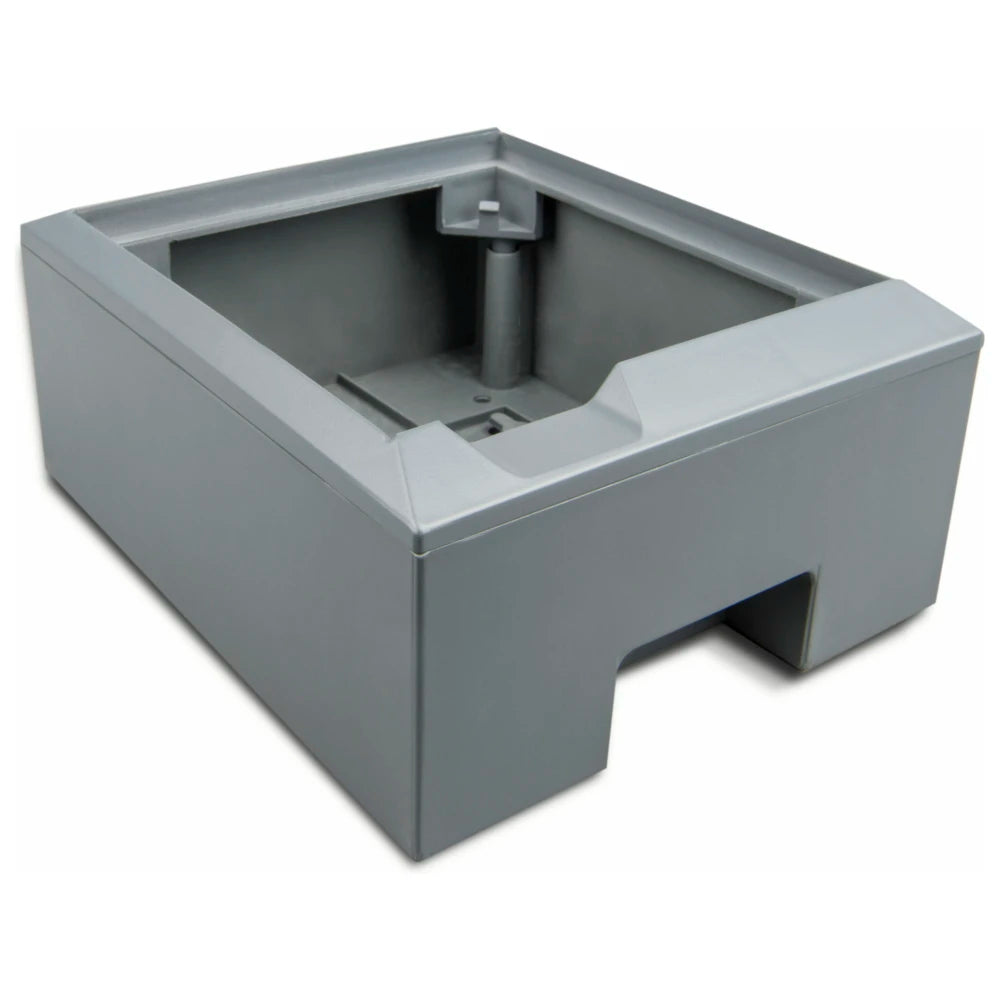

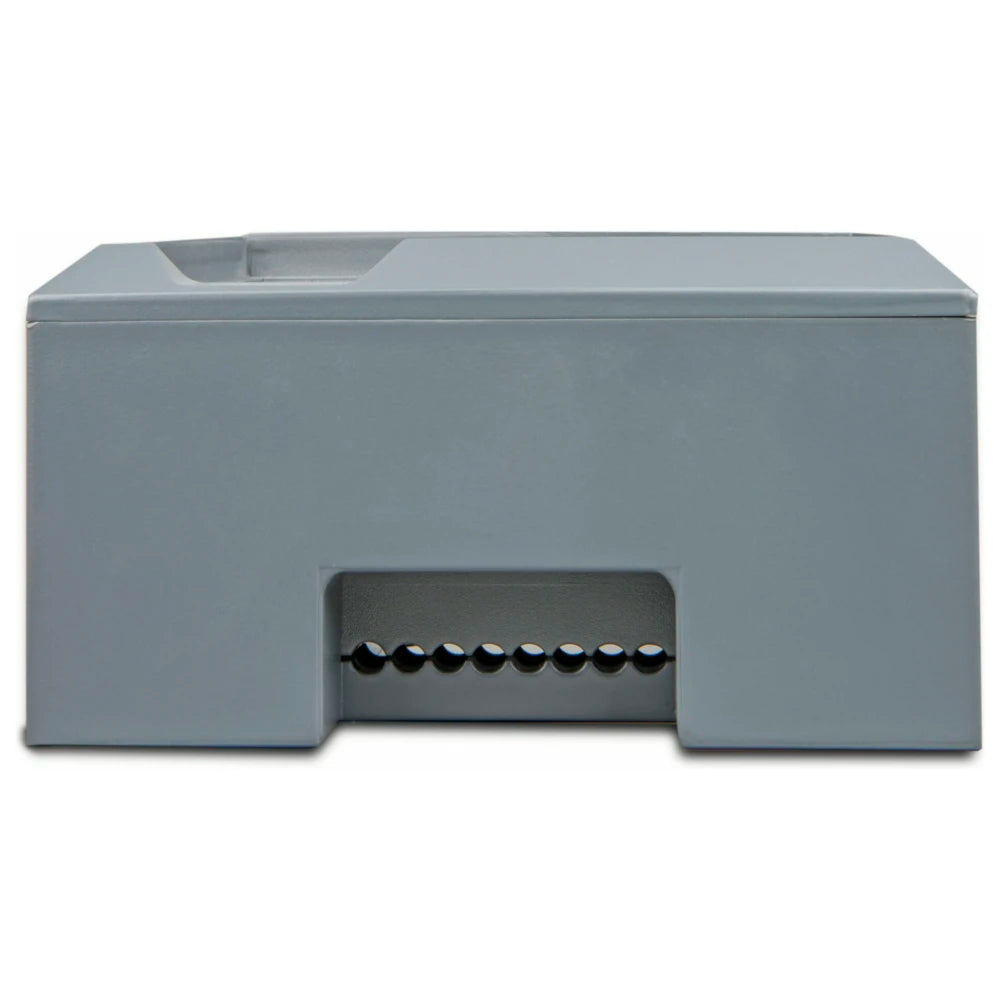

This Victron Energy wall mount enclosure range is for installing Victron monitoring and control panels on a vertical surface instead of cutting them into a dashboard or electrical panel. The variants cover the Color Control GX, a BMV or MPPT Control panel, and a combined layout that holds a Color Control GX together with a BMV or MPPT Control.

On a boat, that matters when the best viewing position is on a nav station bulkhead, inside an electrical locker, or near a battery monitoring point where there may not be enough panel depth for a flush installation. The listed enclosure footprints run from 130 x 85 x 45 mm for the BMV or MPPT Control version to 245 x 135 x 65 mm for the combined Color Control GX plus BMV or MPPT Control version.

Key features

• Wall-mount enclosure options for Victron Color Control GX, BMV-700 series battery monitors, BMV-702, and MPPT Control panels.
• Three configurations cover a Color Control GX alone, a BMV or MPPT Control alone, or a combined Color Control GX plus BMV or MPPT Control layout.
• Nominal enclosure sizes of 165 x 135 x 65 mm, 130 x 85 x 45 mm, and 245 x 135 x 65 mm help match the enclosure footprint to the available bulkhead or panel space.
• Wall mounting helps move monitoring and control displays out of crowded switch panels while keeping the face of the control accessible.
• Useful for helm stations, nav areas, protected battery monitoring panels, and interior equipment spaces where a flush cutout is not practical.

Variants

This range is offered in three configurations, each built around the Victron display or control panel that needs to be wall mounted.

The supported device configuration and enclosure dimensions change by variant. No electrical compatibility changes are being stated here; the enclosure choice is based on the panel combination and the physical space available for the install.

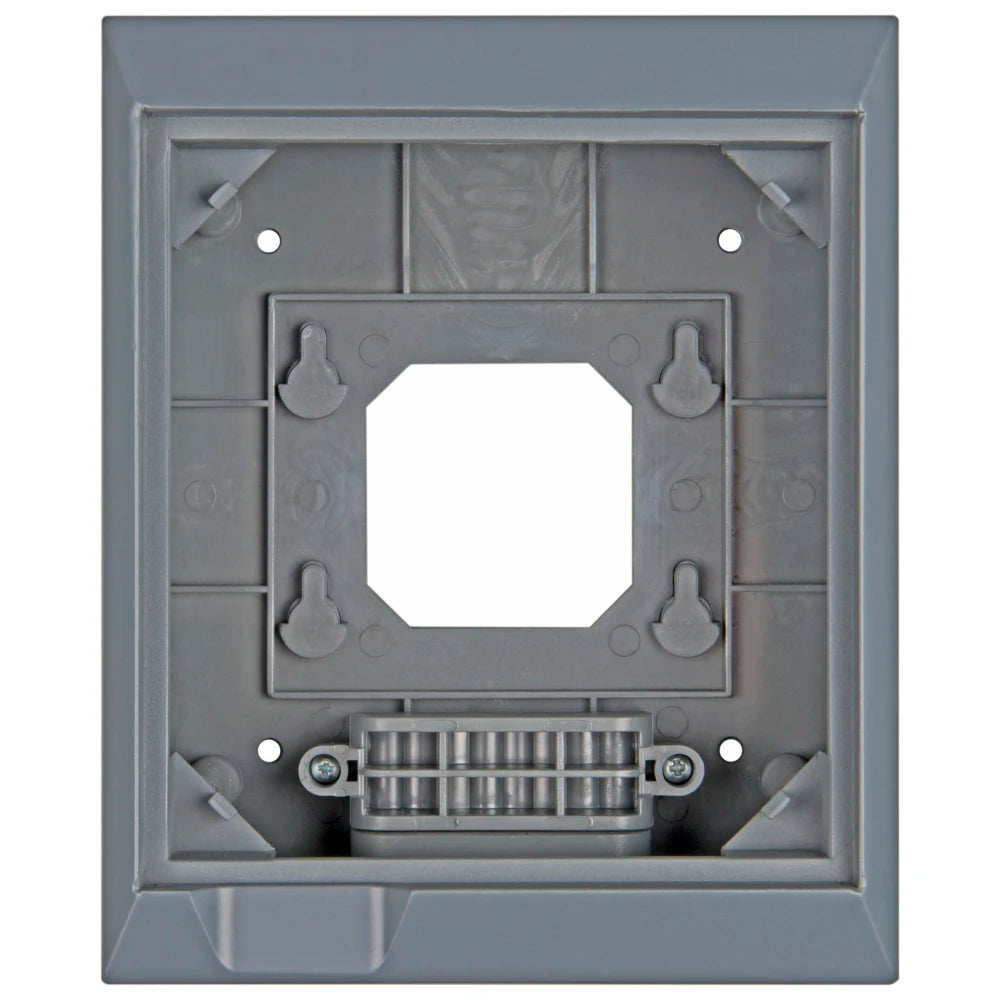

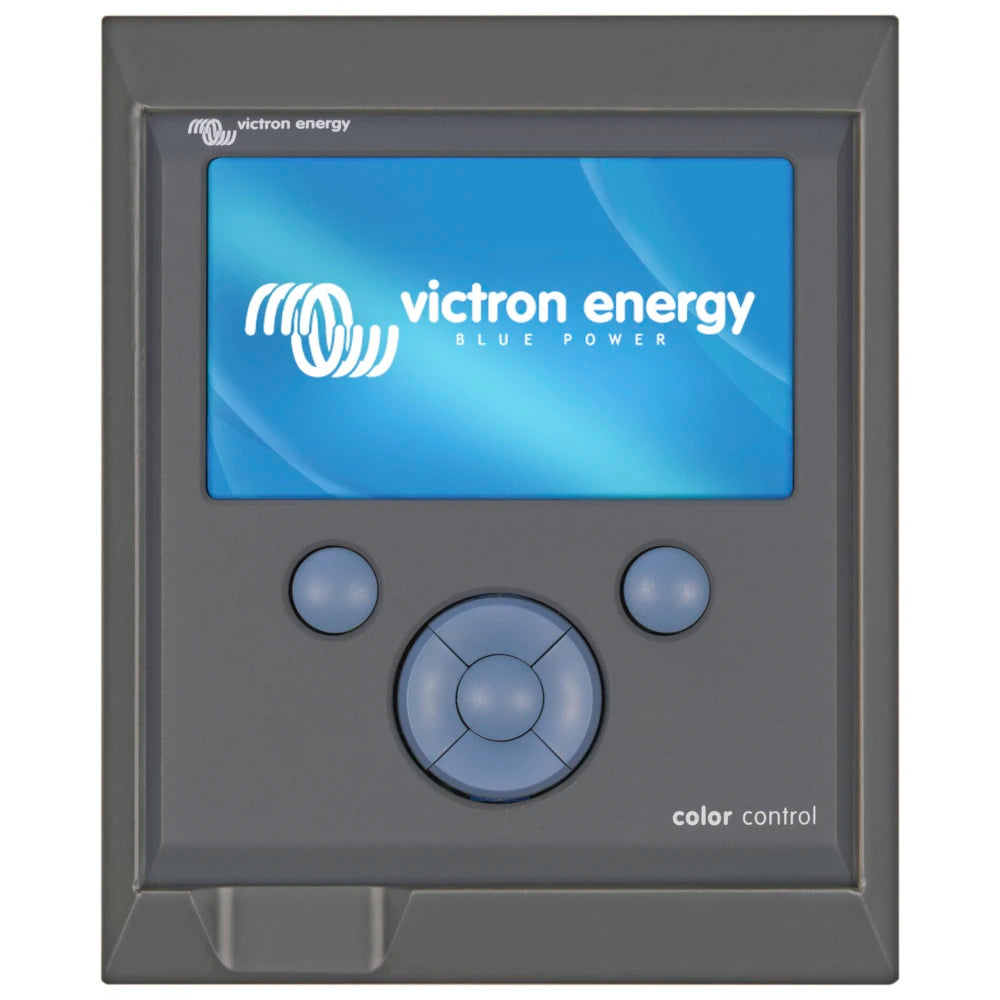

• ASS050400000: Color Control GX only, 165 x 135 x 65 mm. This version keeps the GX display in its own wall-mounted housing for placement at a helm, nav area, or protected equipment panel.

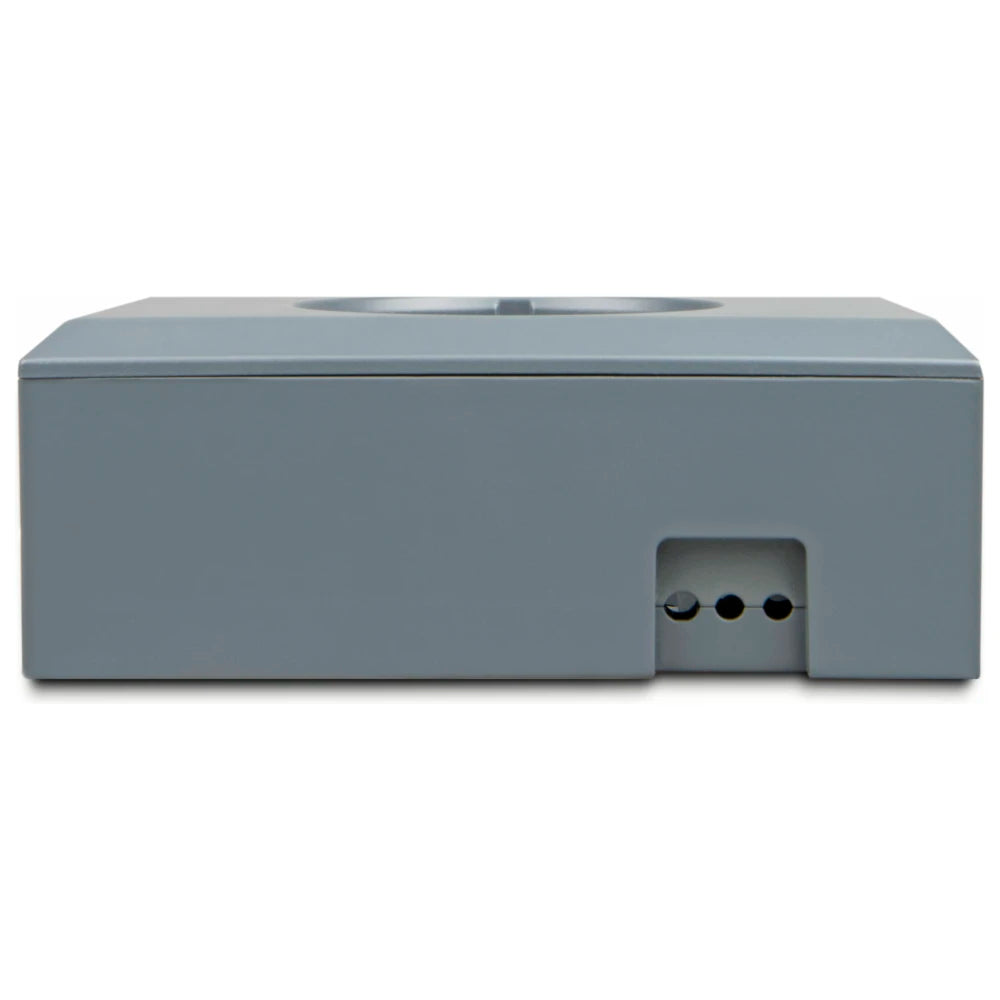

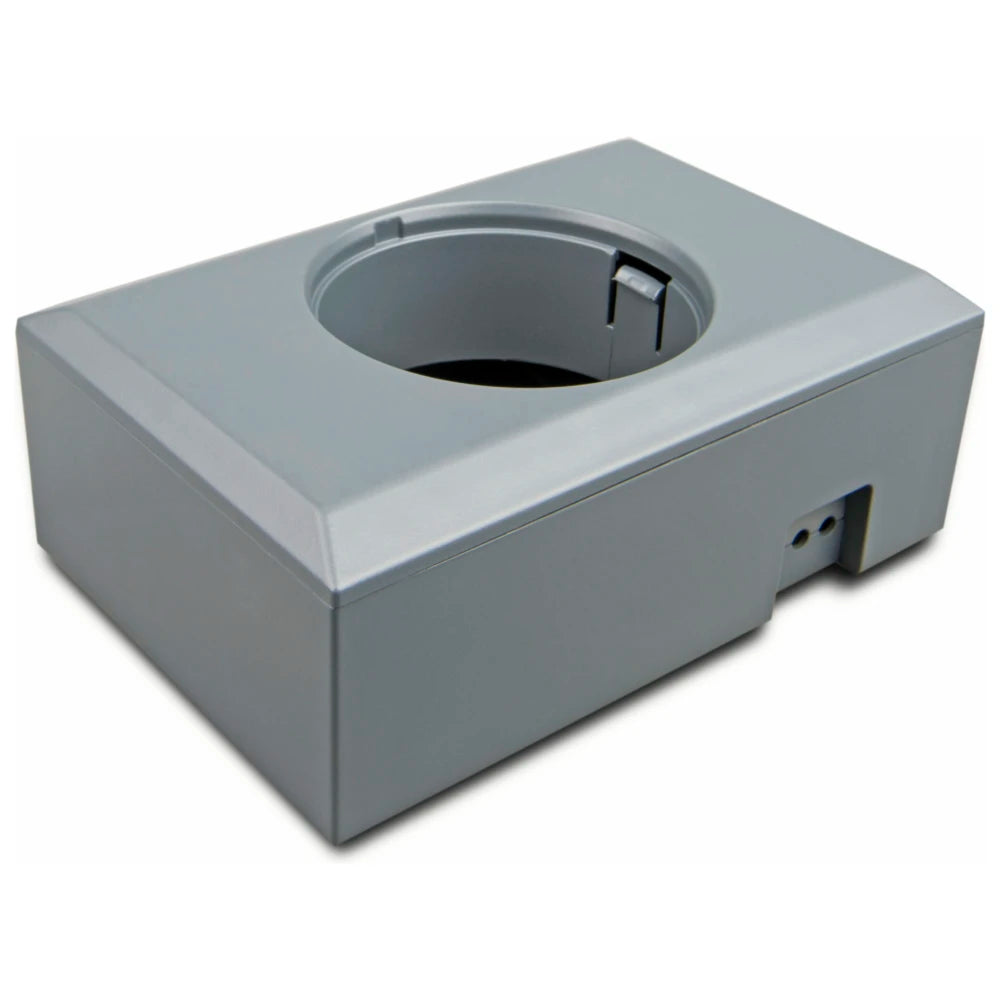

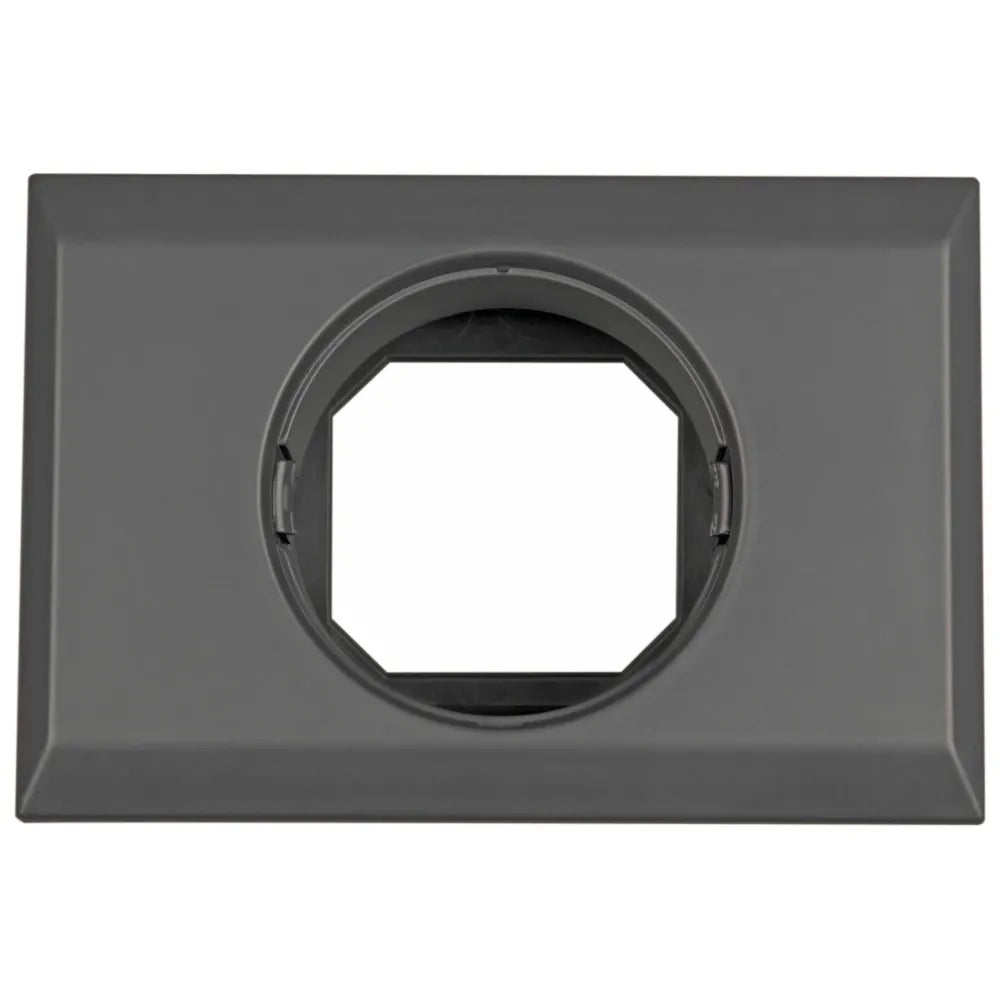

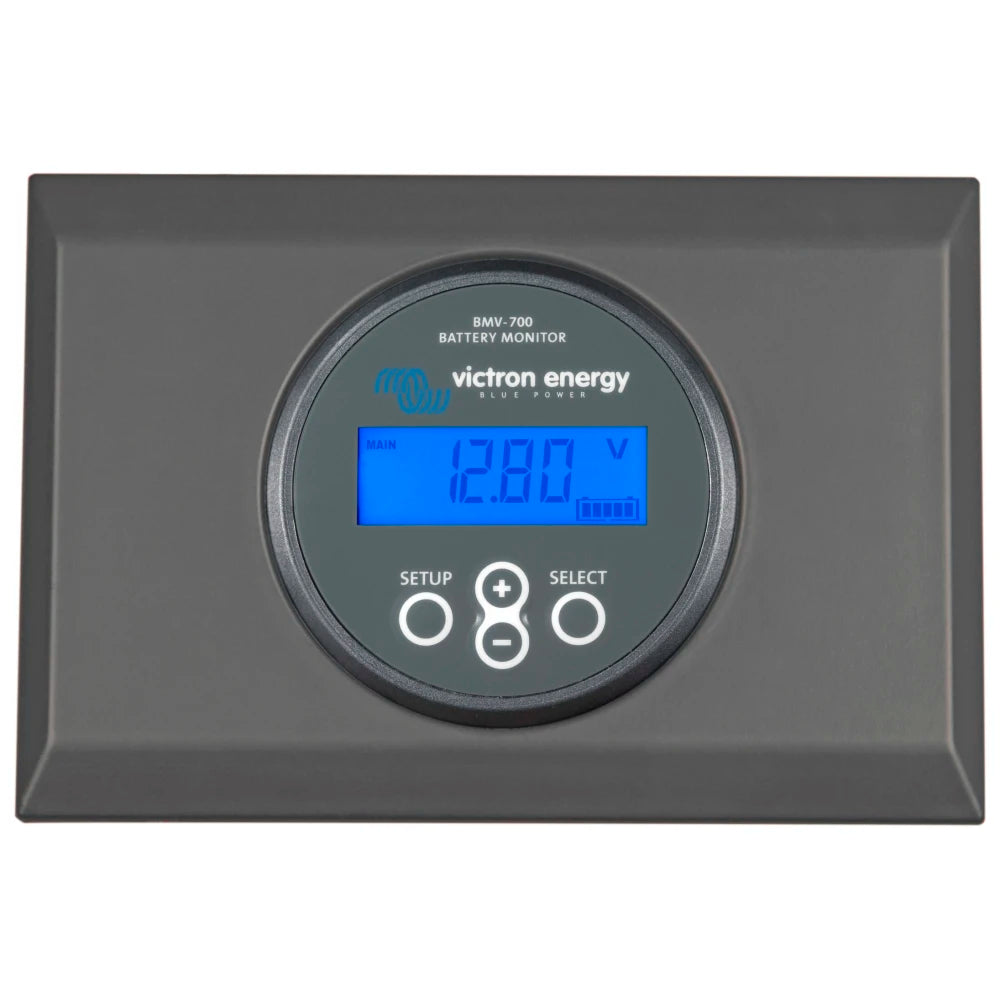

• ASS050500000: BMV or MPPT Control only, 130 x 85 x 45 mm. This smaller enclosure suits a single round Victron control panel where battery or solar information needs to stay visible without using a large cutout.

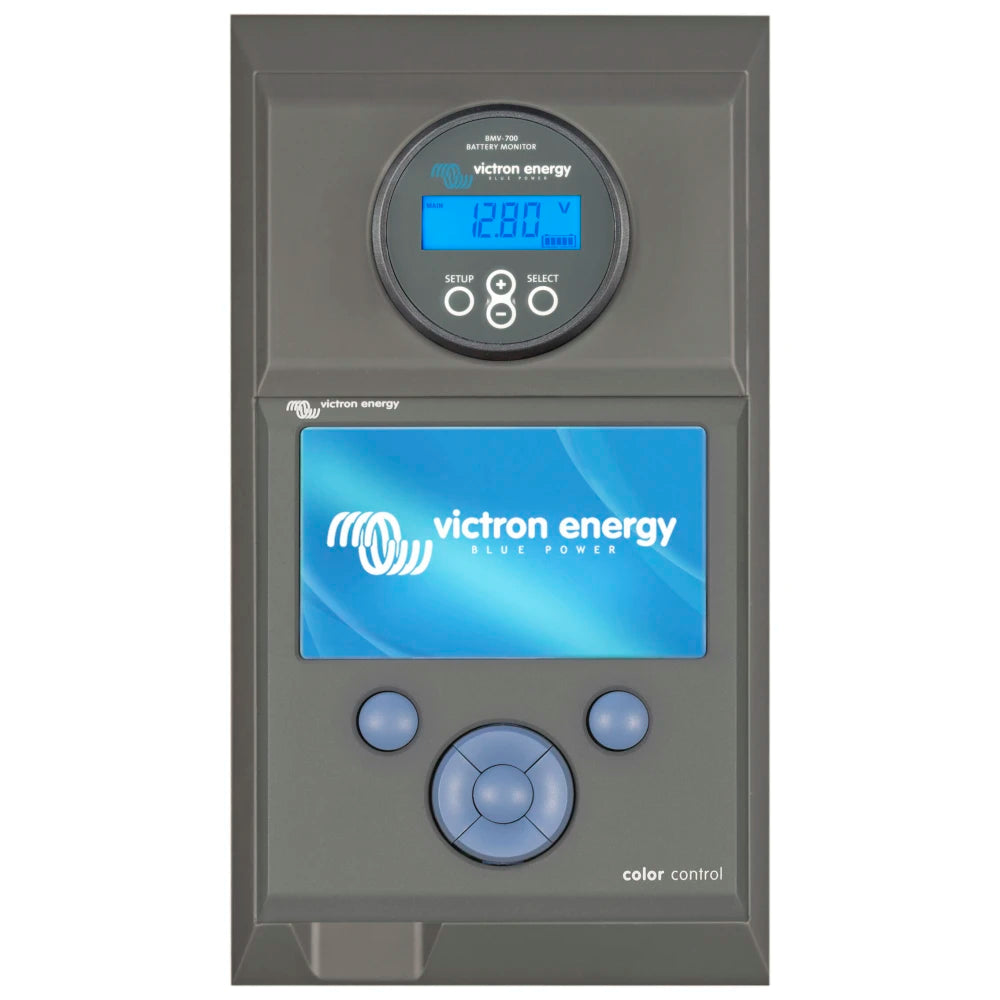

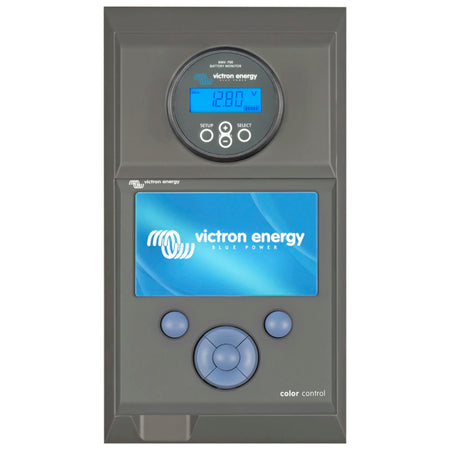

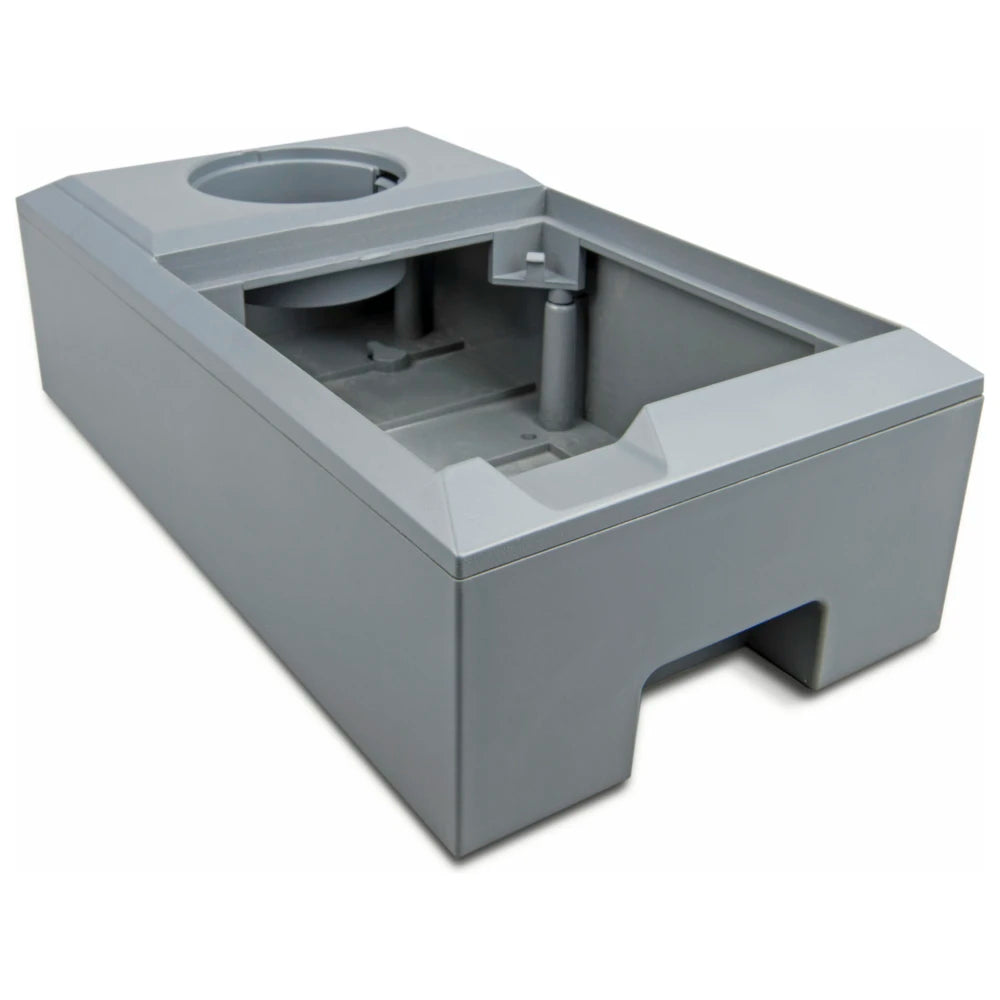

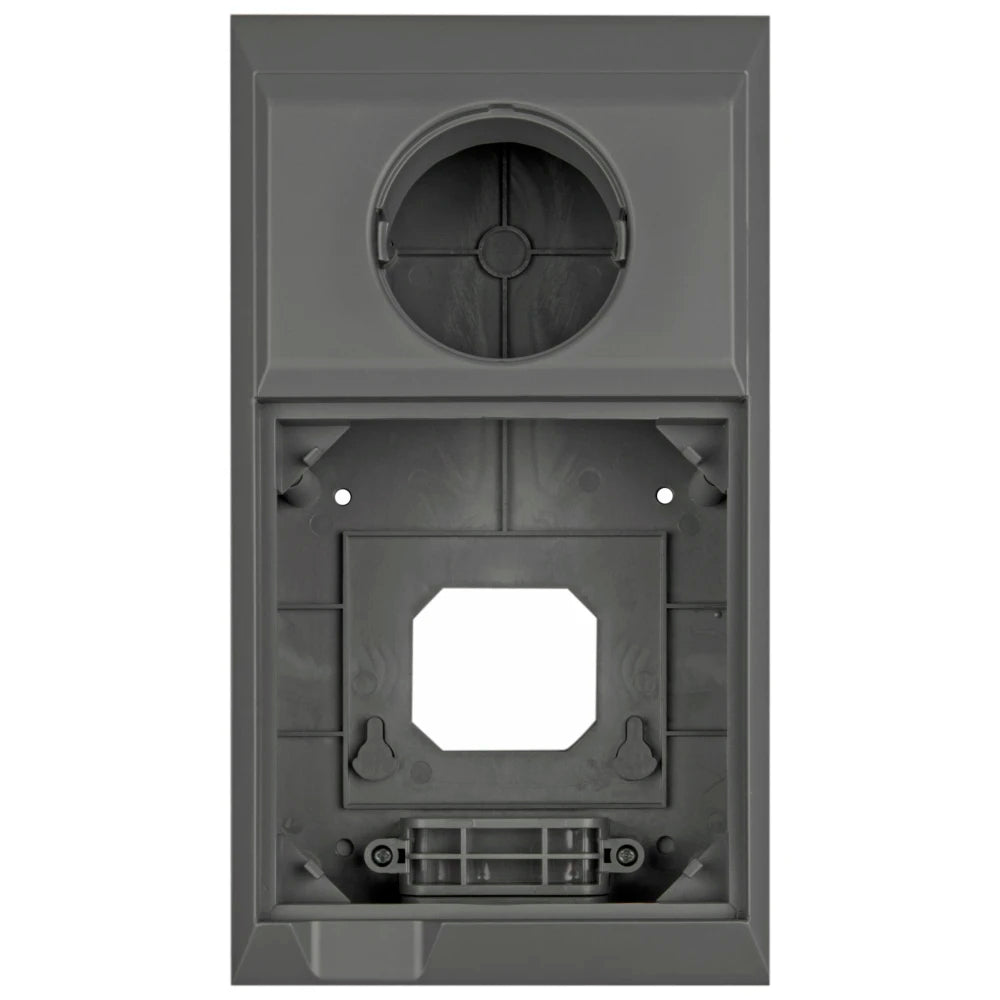

• ASS050600000: Color Control GX plus BMV or MPPT Control, 245 x 135 x 65 mm. This larger enclosure puts the GX display and one matching monitoring or control panel together in the same wall-mounted position.

Installation and setup

Plan the location before drilling or cutting so the display face is easy to read and the cable path has enough room behind or below the enclosure. In marine installations, that usually means placing the enclosure away from direct spray, washdown water, and spots where gear can strike the controls.

The enclosure is a mechanical mounting accessory, not an electrical adapter. Keep the wiring, fusing, network connections, and device commissioning aligned with the Victron equipment being installed in the enclosure.

Compatibility and fit

The enclosure should be selected by the Victron control panel being mounted, not by battery voltage or charger size. It does not change whether the connected Victron system is 12 V, 24 V, or another DC architecture; those requirements belong to the display, monitor, solar controller, and the rest of the system.

For refits, check the available wall area, cable entry direction, and clearance for removing the control panel later. A cockpit or deck position may need additional protection if the installation location is exposed to saltwater, UV, or regular washdown.

Use cases on board

These enclosures make sense for boat owners and technicians who want Victron battery, solar, or GX monitoring visible without rebuilding a panel face. They are especially useful around nav stations, helm-adjacent interior panels, engine-room entry areas, and protected service spaces where quick system checks are part of the routine.
