Intellisteer - INTTYPEA Steering System - For Boats with Existing Drives or Autopilot

Wireless Steering Convenience for Boats with Existing Drives or Autopilot

Enhance your boating experience with the Intellisteer TYPE A Wireless Steering System. Designed for boats equipped with an existing autopilot or drive system, this innovative wireless control module provides seamless remote steering without the need for additional drive units. Whether you're fishing, cruising, or simply enjoying your time on the water, this system allows you to take control from anywhere on the boat with a handheld wireless pendant.

Effortless Installation and Seamless Integration

Installing the Intellisteer TYPE A is a straightforward process, eliminating the need for professional installation. The system is wired between a course computer and the autopilot drive, ensuring easy integration with your existing setup. When activated, it disconnects the autopilot and gives you direct wireless jog steering control. Once turned off, your autopilot resumes normal function without interference.

Reliable and Intuitive Operation

This wireless steering system offers effortless maneuverability, letting you focus on fishing or navigating without constantly returning to the helm. With a waterproof handheld pendant, you gain full control at your fingertips, even in challenging marine environments. Additional handheld controllers and receivers can be paired in the field, allowing for expanded functionality as needed.

Technical Specifications

• Motor Drive Capability: Up to 25A
• Operating Voltage: 12V DC nominal (9V min – 16V max)
• Pass-Through Capability: Supports autopilot motor and clutch control circuits
• Wireless Range: Over 1 million control codes for secure, interference-free operation

Rugged and Marine-Ready Design

• Waterproof Construction: Ensures durability and performance in marine conditions
• Wireless Control Module: FCC-compliant with auto shut-off for added safety

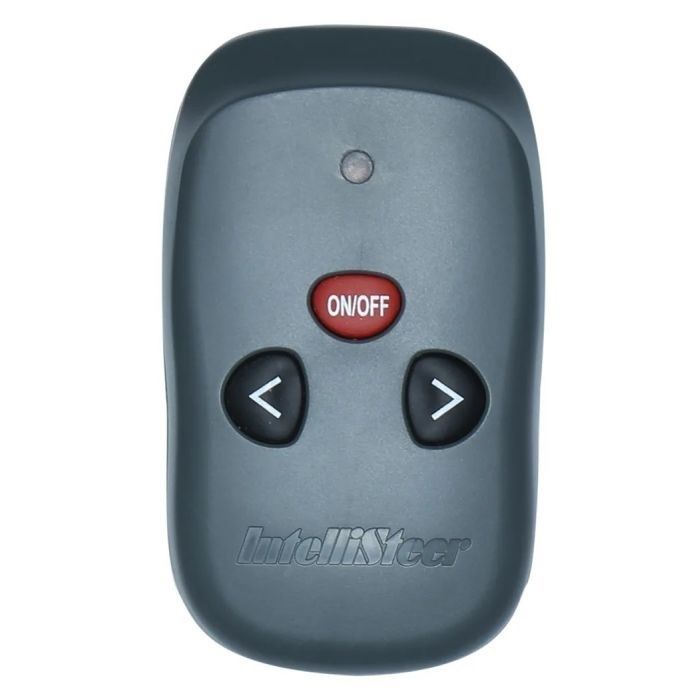

• Handheld Pendant: Compact, ergonomic design for easy handling

What’s in the Box

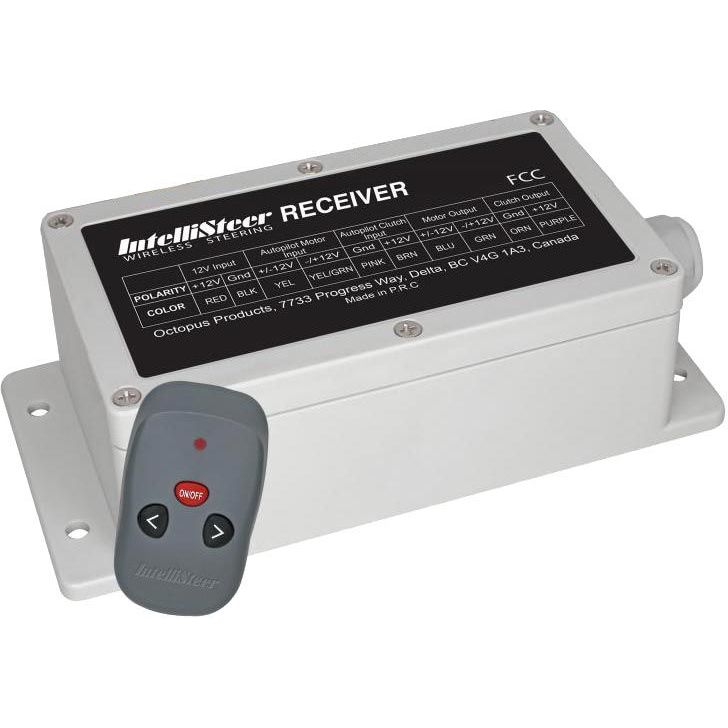

• Wireless Control Module
• Receiver Module
• Handheld Wireless Pendant
• Easy-to-Use Installation Kit

Key Features

• Provides wireless jog steering control without adding extra drive units
• Instantly disconnects the autopilot when activated for direct manual control
• Allows seamless reversion to autopilot operation when turned off
• Designed for DIY installation with no professional help required
• Lets you steer, fish, and cruise from anywhere on the boat
• Expandable system with additional handheld controllers and receivers

Experience the freedom of wireless steering with the Intellisteer TYPE A—a must-have addition for boaters seeking greater convenience and control on the water.
