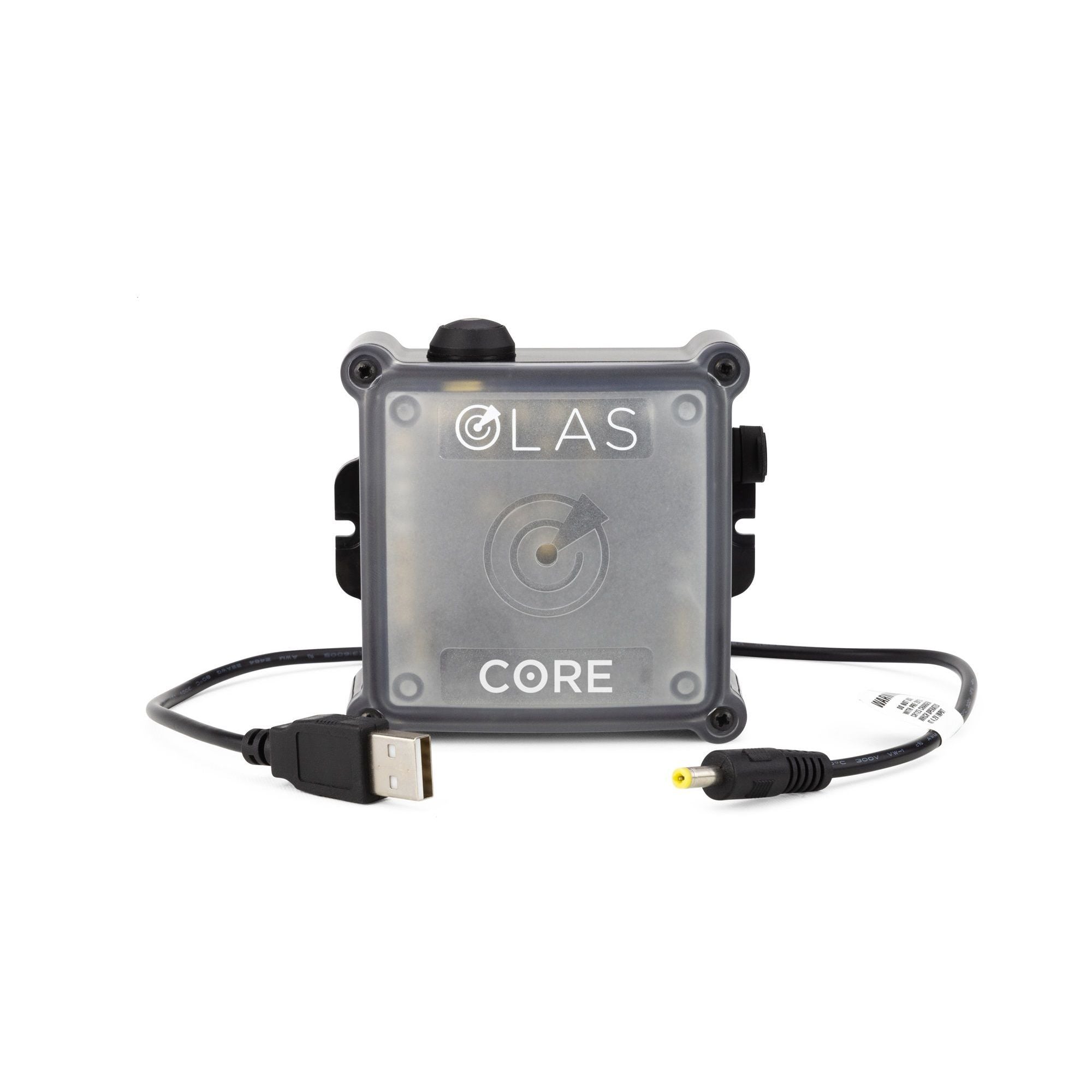

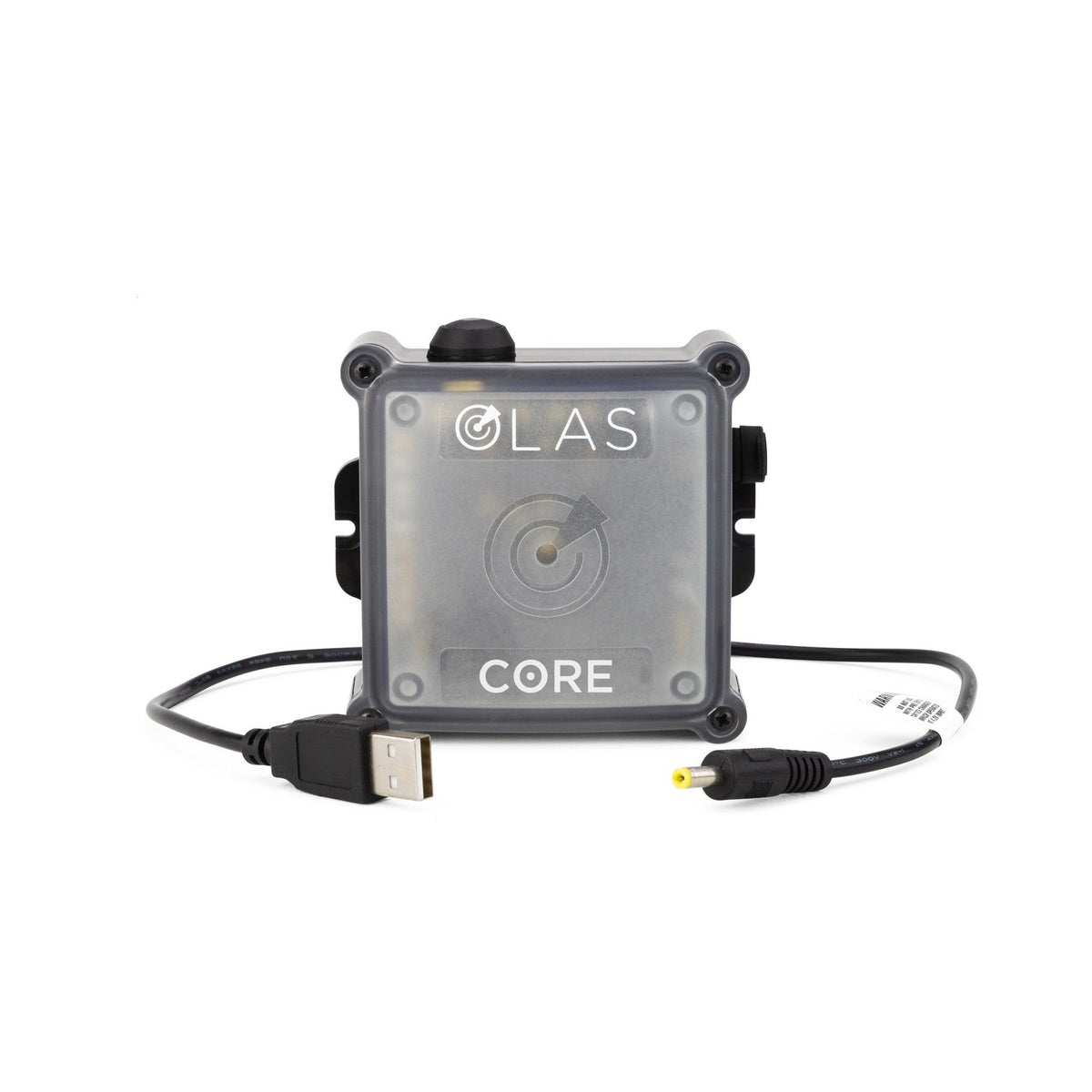

ACR Electronics - OLAS Core Base Station - For OLAS Transmitters

Reliable Man Overboard Alert System for Marine Safety

The ACR OLAS Core Base Station is an advanced wireless Man Overboard (MOB) alarm system designed to enhance safety on the water. Acting as a central hub, the OLAS Core continuously monitors up to 15 connected OLAS Tags or OLAS Float-On transmitters. If a transmitter is lost overboard, the system triggers an immediate emergency alarm within four seconds, ensuring swift crew response. With a compact and waterproof design, the OLAS Core is perfect for both recreational and commercial boating applications.

This portable device integrates seamlessly with the OLAS mobile app, providing real-time directional tracking and emergency guidance for MOB recovery operations. It can be permanently mounted or used as a portable solution, offering versatility to suit any vessel up to 50 feet in length. For larger vessels, the range can be extended up to 80 feet using the optional OLAS Extender.

The OLAS Core provides a crucial backup independent of mobile devices, ensuring a fail-safe layer of security in case of phone failure due to overheating, battery depletion, or damage. Utilizing Bluetooth 5.0 technology, it delivers a reliable connection while maintaining low power consumption. The built-in 85-decibel alarm and ultra-bright red LED light provide clear, immediate alerts in emergency situations.

Technical Specifications

• Maximum Connectivity: Supports up to 15 OLAS Transmitters (OLAS Tags and OLAS Float-On).
• Alarm System:
• Visual Alarm: Red LED with 55 lumens brightness.
• Audible Alarm: 85-decibel loud alert.
• Range: Effective for vessels up to 50 feet; can be expanded to 80 feet with OLAS Extender.
• Waterproof Rating: IP67-rated for marine durability.
• Bluetooth: 5.0 wireless technology for reliable connectivity.
• Power Requirement: 5V USB / 13-17mA low power consumption.
• Operation: Press and hold button to sync all transmitters.
• Scalability: Can be upgraded with OLAS Guardian (alarm and engine kill switch) and OLAS Extender for expanded range.
• Application: Suitable for recreational and commercial boating.
• Compliance: Approved by FCC, RED, and CE.
• Warranty: 1-year manufacturer warranty.

Product Dimensions

• Size: 3.6" (H) x 3.5" (L) x 1.5" (W).
• Weight: 0.40 ounces.

Finishes

• Color Options: Black and Clear.

Highlights

• Instantly alerts the crew within 4 seconds of a man overboard incident.
• Portable and lightweight design for flexible mounting options.
• Low power consumption, operating via a 5V USB connection.
• Integrates with the OLAS mobile app for real-time tracking and recovery guidance.
• Expandable system coverage with the OLAS Extender for larger vessels.
• Works independently of mobile devices for added security.

What's in the Box

• OLAS Core Base Station.
• USB Charging Cable.

The ACR OLAS Core Base Station is an essential safety upgrade for any vessel, ensuring quick and effective MOB response while enhancing crew protection on the water.
