Lenco Marine - Hybrid Trim Tab Kit - 12V
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Advanced Performance for Larger, Faster Boats

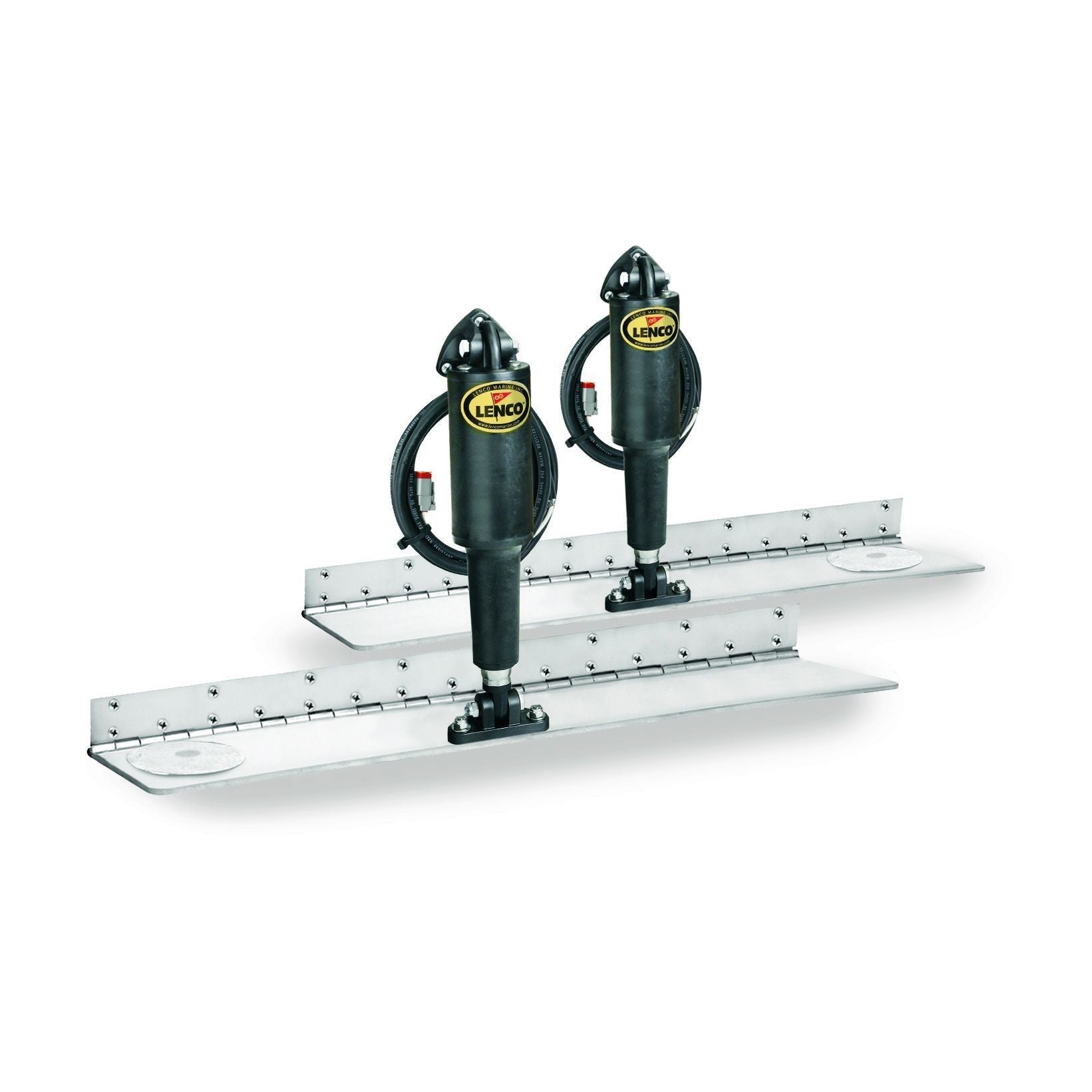

The Lenco Marine Hybrid Trim Tab Kit 12V is designed to enhance the performance and stability of larger, high-speed boats. With a unique blade design and dual actuator support, this trim tab system ensures superior lift, efficiency, and control for vessels ranging from 30 to 44 feet. The electro-polished 7-gauge stainless steel blades provide exceptional durability and resistance to harsh marine conditions, making them a reliable choice for demanding applications.
Precision Engineering and Durability
Built for long-lasting performance, the Lenco Hybrid Trim Tabs feature 304 stainless steel construction with laser-cut precision for increased strength and corrosion resistance. The heavy-duty hinge system, with a robust 3/8-inch stainless steel hinge pin, ensures stability under high loads. The welded stainless steel upper and adjustable lower actuator mounting brackets provide secure installation, while mechanical strain-relief cable seals enhance reliability.
Technical Specifications
- Material: 7-gauge (4.6 mm) electro-polished 304 stainless steel
- Hinge Pin Diameter: 3/8" (9.5 mm) stainless steel
- Boat Length Compatibility: 30' - 44' (9.1 m - 13.4 m)
- Actuator Lead Length: 6' (1.8 m) with Deutsch connectors
- Mounting Hardware: Stainless steel bolts included
- Additional Note: Actuator extension harnesses must be purchased separately (2 required)
Product Dimensions
- Trim Tab Size: 4" x 18" (10.2 cm x 45.7 cm)
Standard Finish for Enhanced Durability
The trim tabs come with a standard finish that provides additional resistance to corrosion, ensuring longevity even in demanding saltwater environments.
Key Features at a Glance
- Dual actuator support for enhanced lift and performance
- Electro-polished 304 stainless steel construction for maximum durability
- Heavy-duty hinge system with reinforced 3/8" stainless steel pin
- Fully welded actuator mounting brackets for secure attachment
- Mechanical strain-relief cable seals for increased reliability
- Pre-installed sacrificial anodes for corrosion protection
Variations Available
- 15145-101 - Size: 4" x 18"
- 15146-101 - Size: 4" x 24"
- 15147-101 - Size: 4" x 30"
This Lenco Marine Hybrid Trim Tab Kit 12V is engineered for boaters seeking precision control and optimal performance in various marine conditions.
