Advanced Marine Radar with Risk Visualizer Technology
The Furuno 10.4" Portrait-Style Radar Display is a cutting-edge navigation tool designed for seamless integration with DRS antennas. Engineered for marine professionals, this display enhances situational awareness by providing clear, real-time information about surrounding vessels and potential collision risks.
The Risk Visualizer feature offers a unique way to identify and assess hazardous areas, giving captains the ability to make informed decisions swiftly. The system's color-coded alerts and customizable settings ensure optimal visibility and safety at sea, even in challenging conditions. When paired with an NXT Radar, users unlock powerful solid-state functionalities such as RezBoost Beam Sharpening and Target Analyzer, which accurately identify potential threats. Additional features include custom AIS presentation, Anti-Clutter controls, and Stern Up presentation for tailored viewing preferences.
High-Resolution Display for Clear Navigation

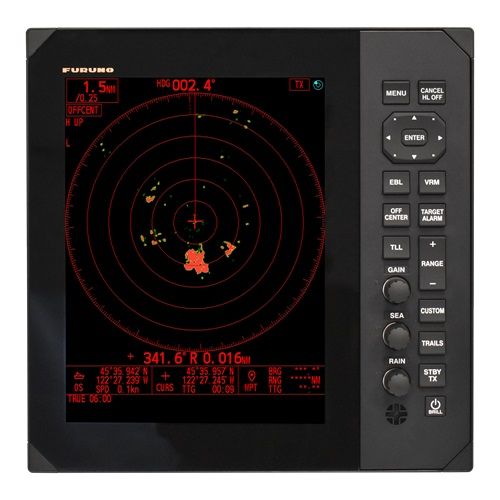

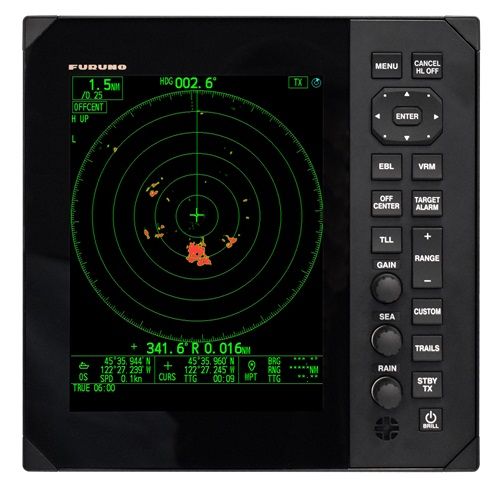

Equipped with a 10.4-inch color LCD screen, the Furuno Radar Display delivers a crisp and detailed image, ensuring enhanced clarity in all weather conditions. The SVGA resolution (800 x 600) provides a high-quality visual representation, making it easy to interpret radar data at a glance.
Powerful Radar Capabilities
This system supports various range scales depending on the connected DRS antenna unit:
- DRS5DL+: 0.0625 to 36 NM
- DRS52DNXT/4DNXT: 0.0625 to 48 NM
- DRS6A-NXT: 0.0625 to 72 NM
- DRS6A/12A/25A, DRS12ANXT/25A-NXT: 0.0625 to 96 NM
With these capabilities, the Furuno Radar Display ensures comprehensive coverage for vessels of different sizes and operational needs.
Smart Target Tracking for Enhanced Safety
The integrated Fast Target Tracking system instantly calculates and displays vector lines indicating a target’s speed and heading. This technology allows for immediate trajectory assessment, helping mariners maintain safe distances and navigate efficiently. Additionally, the Echo Average feature stabilizes radar echoes, minimizing interference from sea clutter and precipitation.
Advanced Functionalities for Optimal Performance
- Risk Visualizer: Displays potential collision areas with time-to-impact calculations.
- Target Analyzer: Instantly identifies hazardous targets (available with solid-state sensors only).
- True Echo Trail: Provides an accurate historical trail of moving targets.
- AIS Display: Enhances navigation awareness with Automatic Identification System integration.
- Sub Display Support: Connect up to two additional units for expanded visibility.
Reliable Marine-Grade Construction
Built for demanding maritime environments, this radar display is designed to withstand extreme conditions:
- Operating Temperature: -15°C to +55°C
- Front Panel Protection: IP55-rated for resistance to water and dust
- Rear Panel Protection: IP22-rated for added durability
Seamless Connectivity and Power Efficiency
The Furuno Radar Display is equipped with multiple connection ports for integration with various marine systems:
- NMEA0183 x3, NMEA2000 x1
- LAN x1, HDMI Out x1
- USB x1, Contact Closure x1
Powering the unit is efficient and flexible, supporting 12-24V DC input with a power draw of 1.1A at 12V and 0.6A at 24V.
Included Accessories for Easy Installation
The Furuno Radar Display package includes all necessary components for a seamless setup:
- RDP160-E Color LCD Display
- Sun Cover
- Power Cable
- Flush Mount Kit
- Mounting Bracket and Knobs
- Documentation and essential installation hardware
Available Variations
- FR-10: 10.4" Display
- FR-12: 12.1" Display
Designed for precision, safety, and reliability, the Furuno 10.4" Portrait-Style Radar Display is an essential tool for any marine vessel requiring top-tier radar performance and advanced navigational support.
