Advanced Thermal Night Vision for Marine Navigation
The FLIR MD-Series Bundle with JCU 30Hz is an advanced fixed-mount thermal night vision system designed to enhance marine navigation, improve situational awareness, and ensure safety on the water. This system allows boaters to steer clear of obstacles, avoid collisions, and locate people in the water, even in total darkness.
The MD-Series integrates effortlessly with existing marine electronics, offering flexibility in installation. Its compact and unobtrusive design ensures minimal interference while delivering powerful thermal imaging capabilities. With an intuitive joystick control unit (JCU) and compatibility with the FLIR Systems iOS app, users can operate the system with ease, making night navigation safer and more efficient.
High-Performance Thermal Imaging Technology
- Available in two resolutions: 320 x 240 (MD-324) and 640 x 480 (MD-625)
- 2x e-zoom standard; 4x e-zoom included on MD-625 for enhanced viewing
- FLIR’s Proprietary Digital Detail Enhancement for improved image clarity
- Wide field of view: MD-324: 24° x 18° | MD-625: 25° x 20°
- High-sensitivity VOx microbolometer thermal sensor for precise detection
Compact and Versatile Design
- Slim and lightweight profile: 6” diameter, 7” height
- Weighs approximately 3 lbs, making it easy to mount on a variety of vessels
- Ethernet-enabled for seamless integration with marine electronics
- Supports NTSC or PAL video output at 30 Hz or <9 Hz
- Pan/Tilt coverage: 30° per key (pan) | Tilt: +34°, -27° (locked at installation)
Rugged and Marine-Ready Construction
- Water Ingress Protection: Rated IPX6 for resistance against heavy water exposure
- Shock Resistance: 15g vertical, 9g horizontal
- Vibration Compliance: IEC 60945, MIL-STD-810E
- Temperature Range: Operates from -25°C to +55°C; Storage from -40°C to +85°C
- Wind Resistance: Withstands speeds up to 100 knots (115.2 mph)
- Automatic window defrost ensures clear vision in extreme conditions
Seamless Integration and Control Options

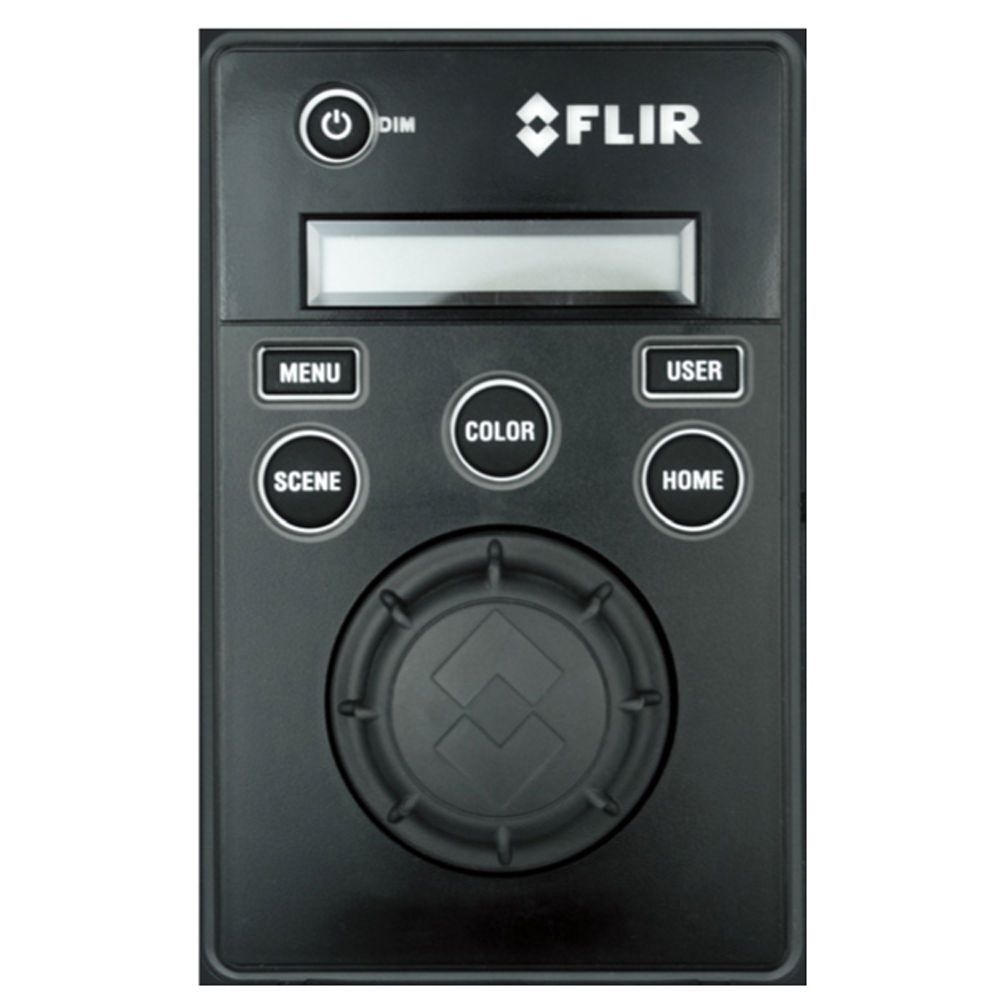

- Joystick Control Unit (JCU): Provides precise manual control over zoom, scene settings, and image modes
- FLIR iOS App: Enables intuitive remote control from an iPad or iPhone
- Compatible with Raymarine C and E displays via Ethernet
Included in the Box
- FLIR MD-Series thermal camera (single payload with 320 x 240 resolution microbolometer)
- Joystick Control Unit (JCU) for enhanced operation
- 25-foot analog video cable (308-0164-25)
- 25-foot shielded Ethernet cable (308-0163-25)
- Weatherproof Ethernet coupler (4115028)

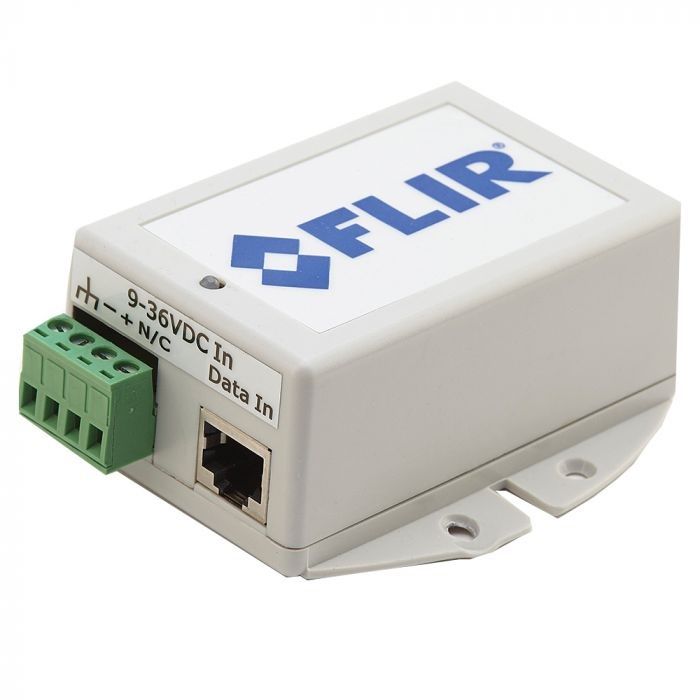

- Power over Ethernet (PoE) injector (4113746)
- Mounting hardware
- Operator’s Manual and Installation Guide on CD
Available Variants
- 432-0010-11-00: Resolution 320 x 240 (MD-324 model)
- 432-0010-13-00: Resolution 640 x 480 (MD-625 model)
