C-MAP - Reveal X microSD Electronic Chart

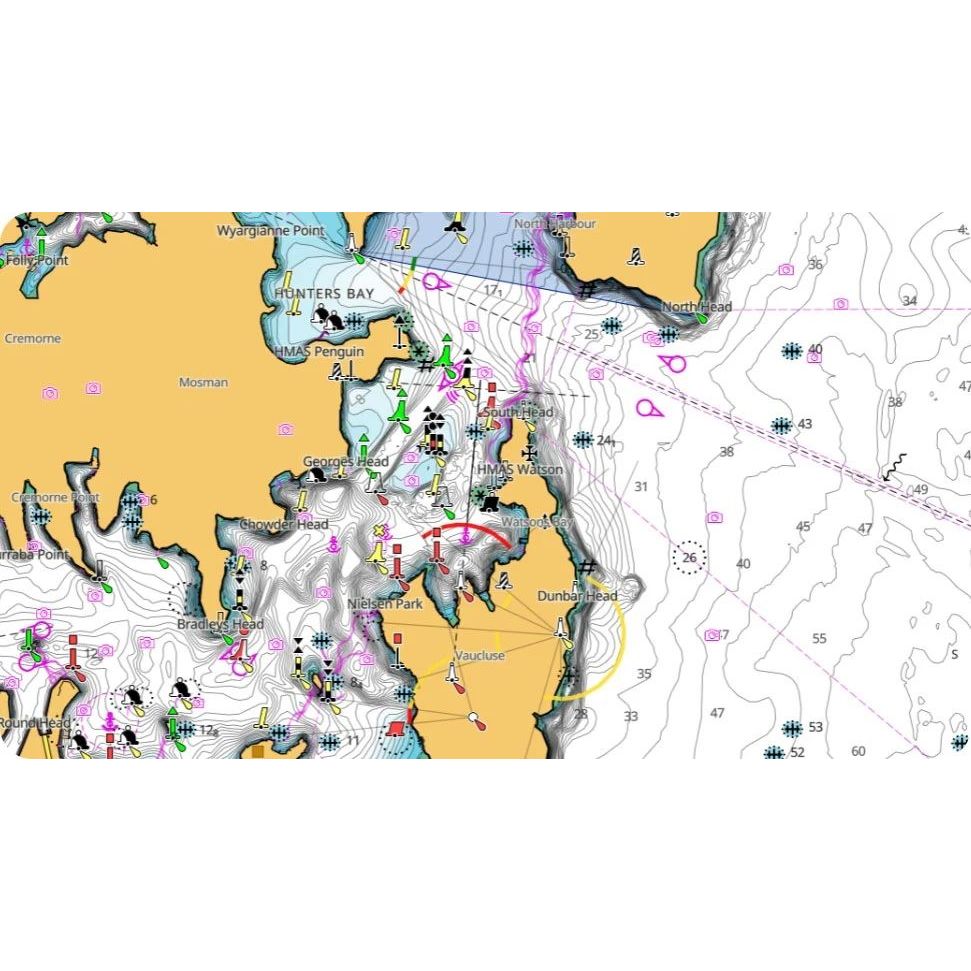

High-Resolution Bathymetry for Superior Navigation

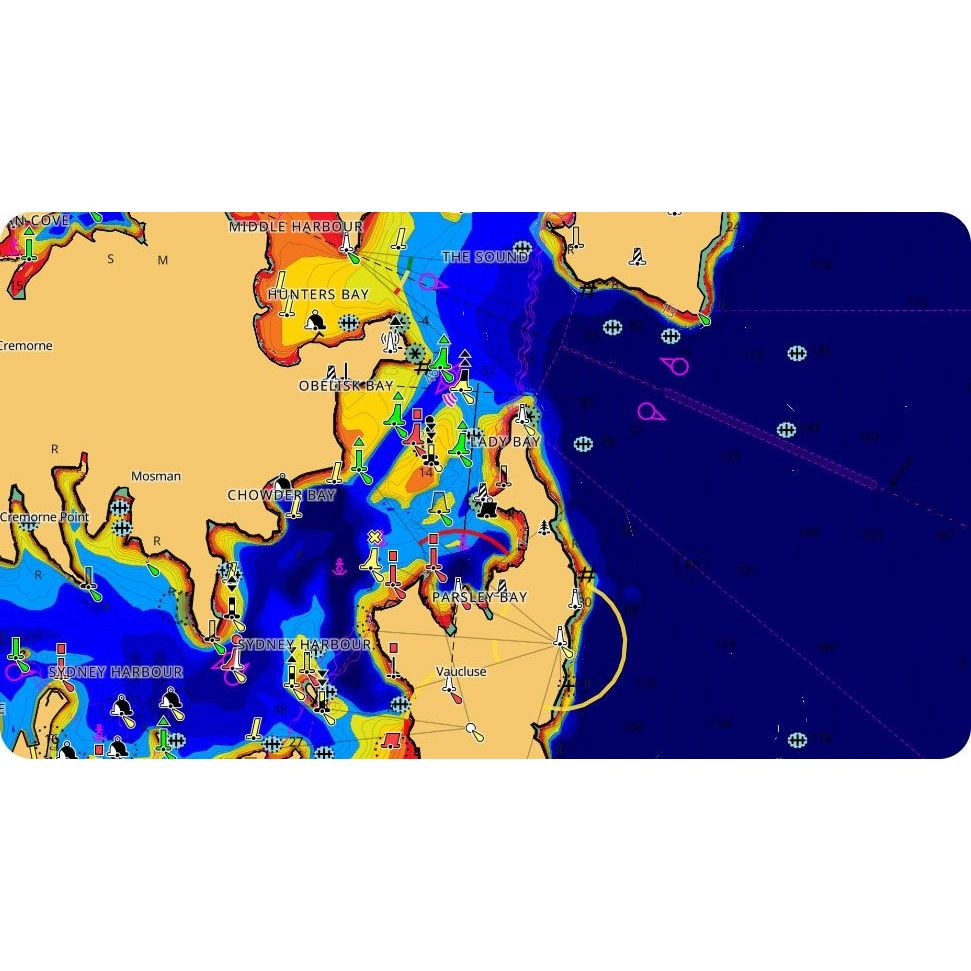

Gain unparalleled insight into underwater landscapes with the high-resolution bathymetry layer. This feature allows boaters and anglers to easily identify shallow areas, drop-offs, ledges, holes, and humps. Integrated with C-MAP® HRB data and Genesis® social map data, this ensures you have the most comprehensive underwater detail available.

Custom Depth Shading for Personalized Mapping

Enhance your fishing and navigation experience with custom depth shading. Set a safety depth or create a personalized shading system to highlight specific underwater structures. This advanced tool helps you visualize the water depths in a way that best suits your needs.

Tides and Currents for Smart Planning

Stay ahead of changing water conditions with real-time projections of tide levels and currents. Whether cruising along the coast or fishing in new waters, this feature provides valuable insights to help you plan your route and optimize your time on the water.

Detailed Marina and Port Plans for Seamless Docking

Navigate unfamiliar marinas and ports with confidence. The detailed layouts include slip spaces, restricted areas, and other essential docking information, making arrivals and departures stress-free.

Harbor and Approach Details for Safe Entry

Approach any harbor or inlet with confidence using highly detailed navigation data. Whether you're returning from a long cruise or an exciting fishing expedition, the enhanced details provide a clear view of coastal terrain, channels, and entry points.

Subscription-Free Autorouting for Effortless Navigation

Enjoy seamless navigation with C-MAP’s intelligent autorouting system. This feature automatically plots the safest and shortest route based on your vessel’s specifications and real-time chart data—no subscriptions or extra fees required.

Easy Updates with 12 Months of Free Online Access

Keep your charts up to date with 12 months of free online updates. This ensures you always have access to the latest navigational data, making your marine adventures safer and more efficient.

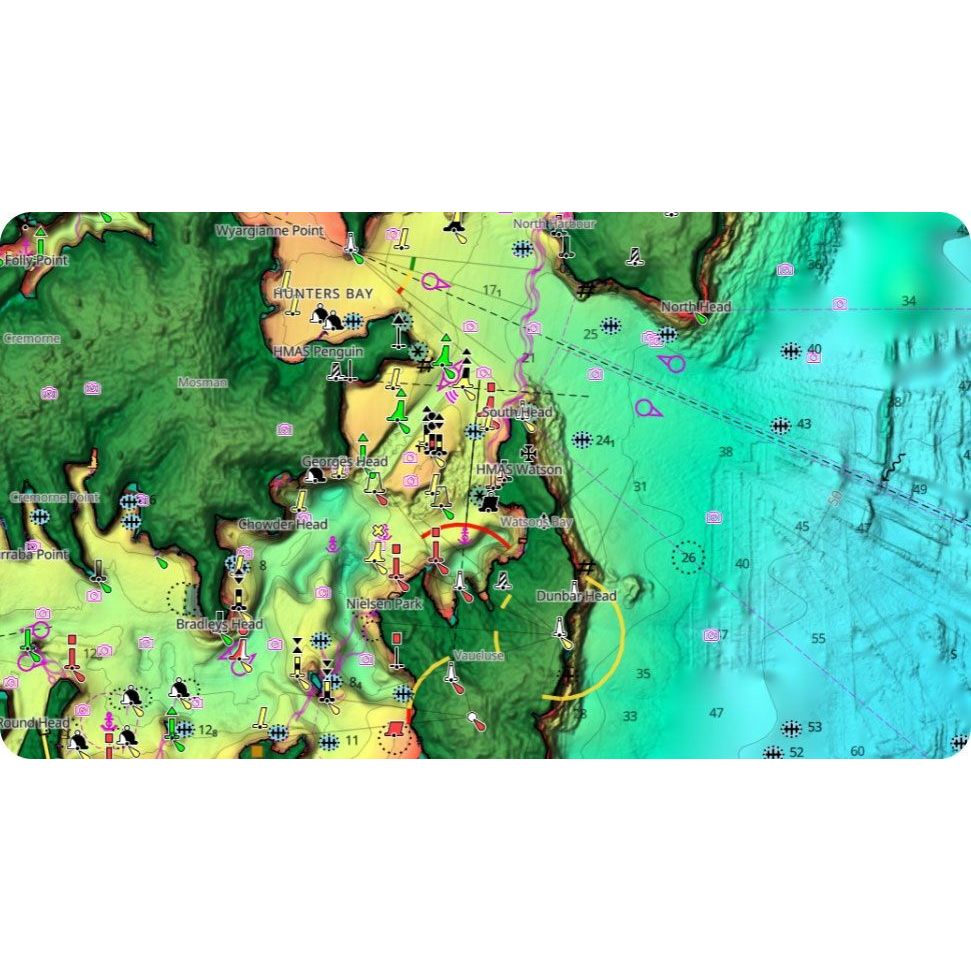

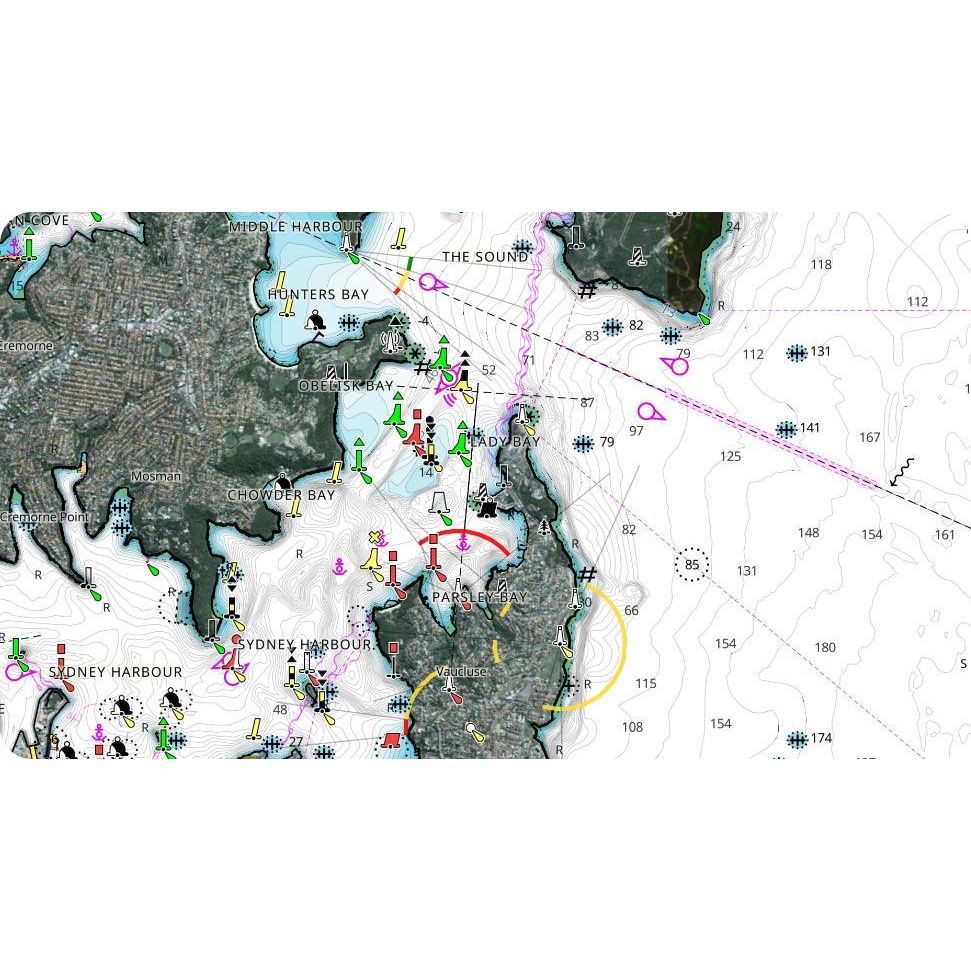

Enhanced Situational Awareness with 3D and Satellite Overlays

Elevate your navigation with immersive 3D-rendered land and underwater elevation details. The REVEAL™ Shaded Relief layer brings seafloor contours and structures to life, providing game-changing insights for anglers and divers. Additionally, satellite imagery enhances your situational awareness, offering a realistic view of the surrounding landscape.

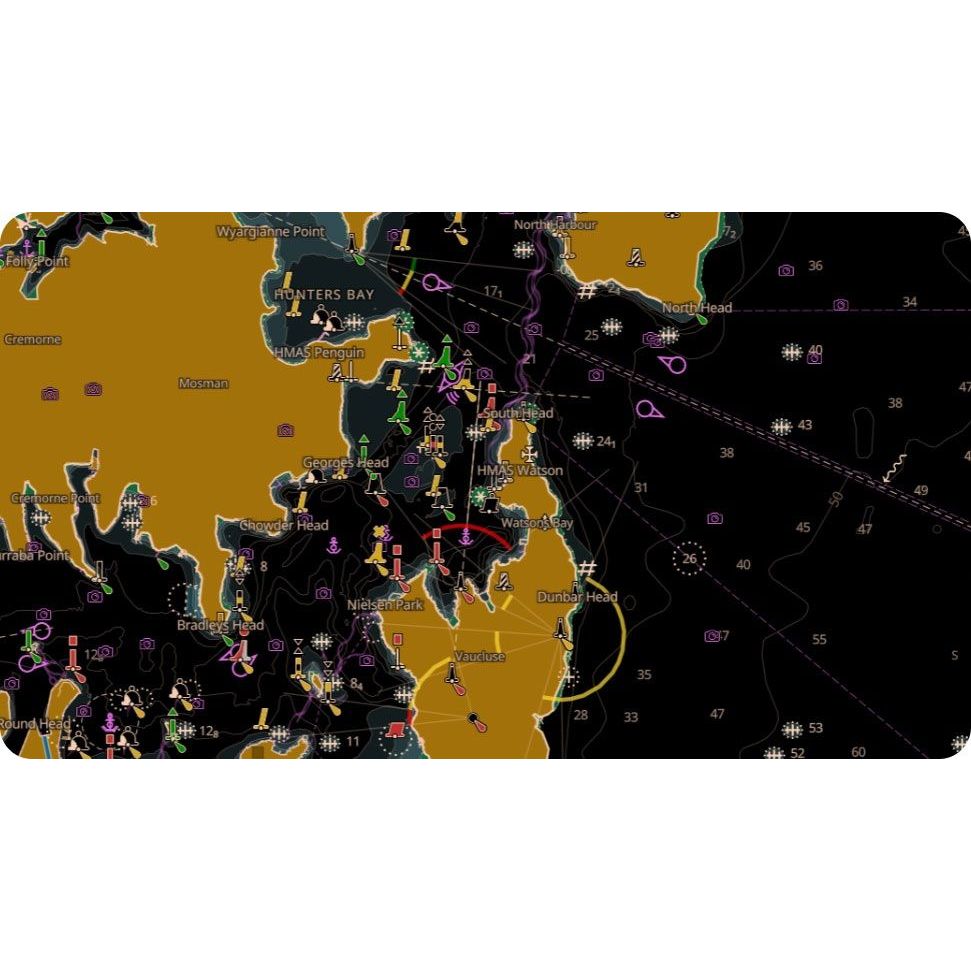

Optimized Day and Night Modes for Clear Visibility

Enjoy best-in-class visualization tools with improved Day and Night modes. Designed for maximum clarity in all lighting and weather conditions, these modes ensure you can always see the essential details for safe and efficient navigation.

Seamless Integration with Simrad® Companion App

Sync your charts effortlessly across multiple devices, including NSX®, laptops, tablets, and smartphones. The Simrad® Companion App allows you to plan trips, review tracks, and plot waypoints with ease—no subscription required.

Variations List

Choose the perfect chart for your region with multiple available variations:

• M-NA-T-208-R-MS – Coastal Alaska

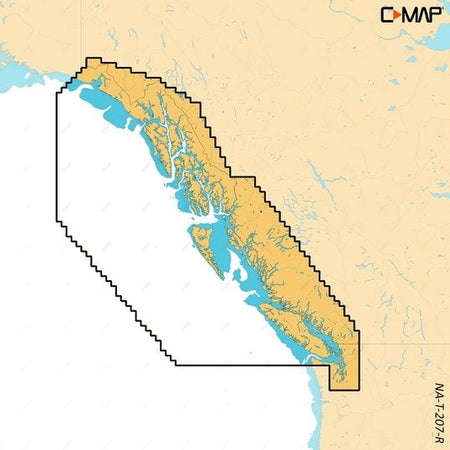

• M-NA-T-207-R-MS – Coastal British Columbia & Puget Sound

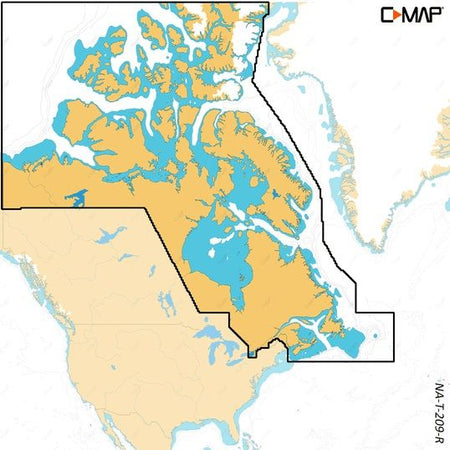

• M-NA-T-209-R-MS – Coastal Canada North & East
• M-NA-T-205-R-MS – Coastal Central America & Caribbean

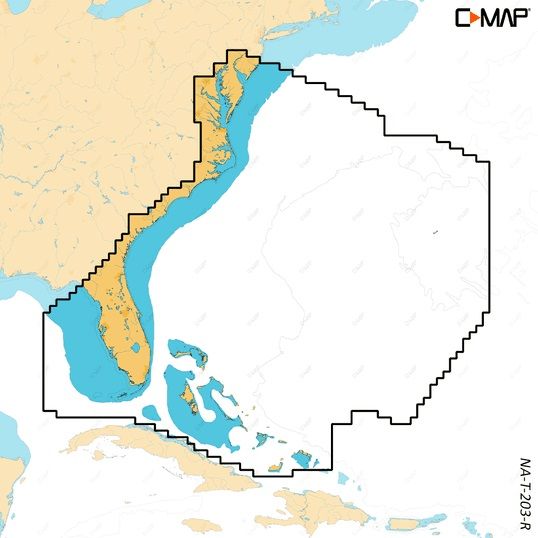

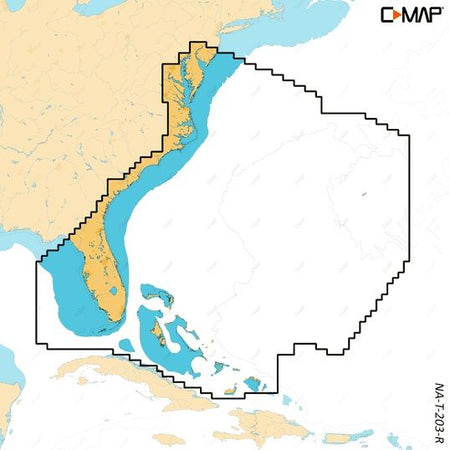

• M-NA-T-203-R-MS – Coastal Chesapeake Bay to the Bahamas
• M-NA-T-201-R-MS – Coastal Great Lakes

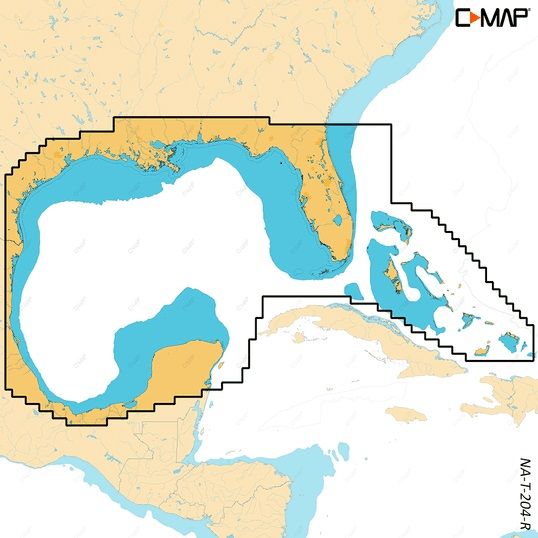

• M-NA-T-204-R-MS – Coastal Gulf of Mexico & Bahamas
• M-NA-T-210-R-MS – Coastal Hawaii, Marshall Islands & French Polynesia
• M-NA-T-202-R-MS – Coastal Nova Scotia to Chesapeake Bay

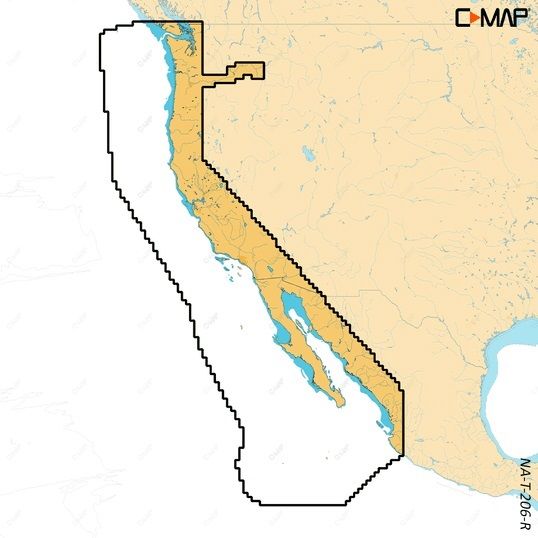

• M-NA-T-206-R-MS – Coastal US West Coast & Baja
• M-NA-T-217-R-MS – Inland Canada Lakes East

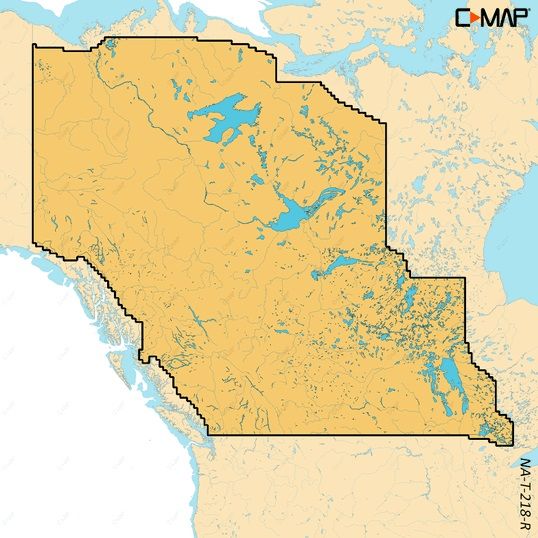

• M-NA-T-218-R-MS – Inland Canada Lakes West

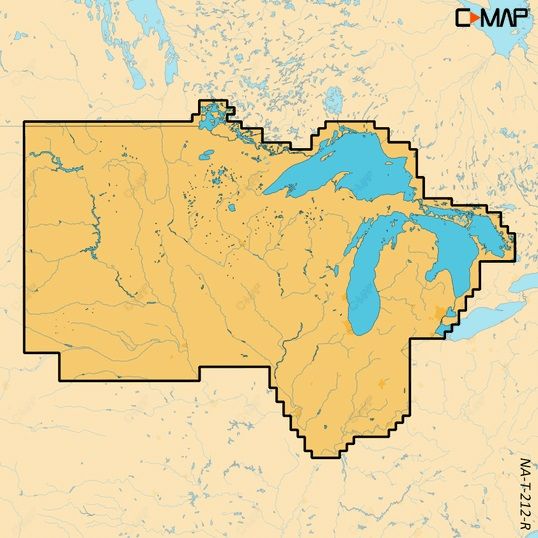

• M-NA-T-212-R-MS – Inland US Lakes North Central

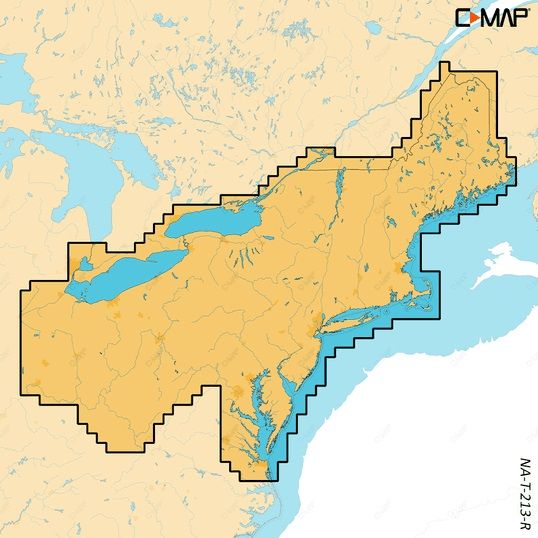

• M-NA-T-213-R-MS – Inland US Lakes North East

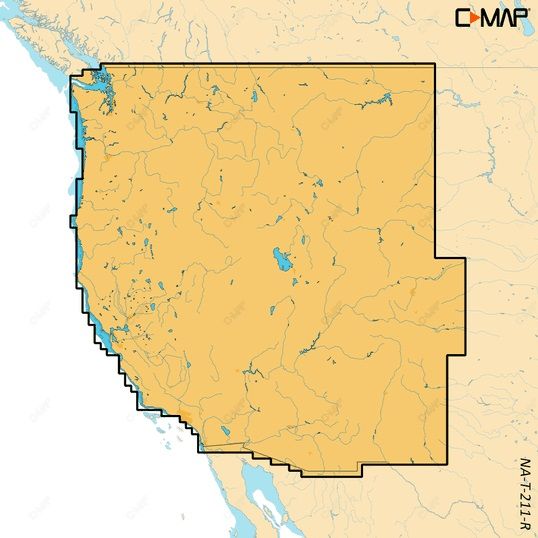

• M-NA-T-211-R-MS – Inland US Lakes North West

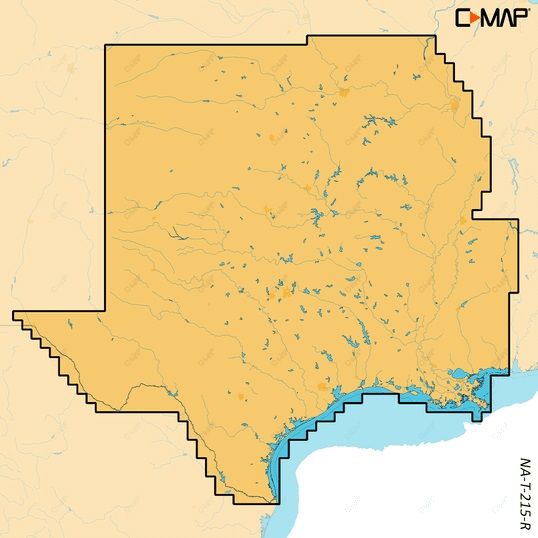

• M-NA-T-215-R-MS – Inland US Lakes South Central

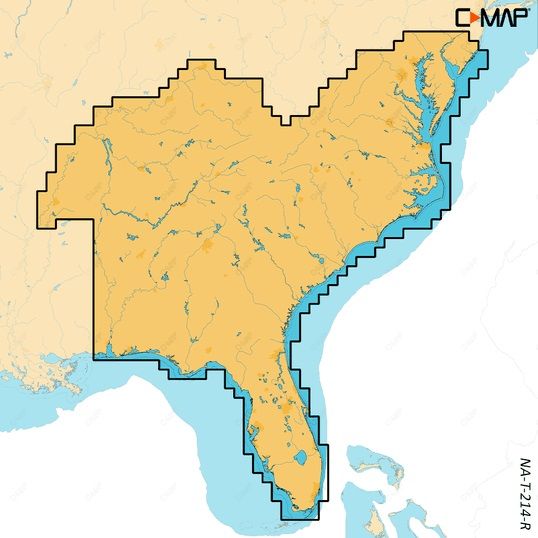

• M-NA-T-214-R-MS – Inland US Lakes South East
