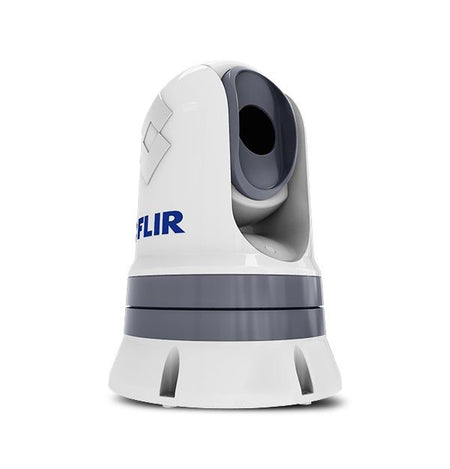

FLIR Systems - M300C Single Payload HD Camera No JCU
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
High-Performance Marine HD Camera with Advanced Stabilization
The FLIR Systems M300C Single Payload HD Camera is designed for superior maritime surveillance, providing enhanced target identification for law enforcement, commercial, and recreational applications. Equipped with a high-performance visible marine camera and long-range optical zoom, the M300C ensures precise monitoring of vessels, hazards, and distant objects. Its advanced gyro-stabilization technology minimizes the effects of pitch, heave, and yaw, delivering steady imaging even in rough sea conditions. Additionally, the camera’s exceptional low-light performance enhances visibility during nighttime operations, offering captains increased situational awareness.
Advanced Imaging and Stabilization Features
- HD Visible Imaging Sensor – Captures high-definition visuals with a powerful low-light sensor for enhanced target identification.
- Long-Range Optical Zoom – A 30x optical zoom capability enables precise surveillance of distant objects.
- Gyro-Stabilization – Two-axis mechanical stabilization minimizes movement distortions, ensuring clear imaging in rough sea conditions.
- Seamless System Integration – Supports exceptional connectivity with navigation and security systems for a streamlined operational experience.
Technical Specifications
- Video Output: HD-SDI lossless video output
- Network Video Stream: Single H.264 network video stream
- Pan & Tilt Range: 360° continuous pan, +/- 90° tilt
- E-Zoom: 12x digital zoom
- Analog Video Output: NTSC/PAL user settable
- Connector Types: BNC
Superior Daylight Imaging Performance
- Zoom: 30x optical zoom for clear long-range viewing
- Sensor Type: 1/2.8" Exmor R CMOS
- Field of View: 63.7° x 35.8° WFOV to 2.3° x 1.29° NFOV
- Focal Length: 129 mm to 4.3 mm
- Resolution: High-definition up to 1080/30p
- Minimum Illumination:0.1 lux (50 IRE, 1/30s, ICR off, slow shutter off, high sensitivity off)
- 0.0008 lux (30 IRE, ICR on, slow shutter 1/4s, high sensitivity on)
Built for Marine Environments
- Automatic Window Defrost: Activates at power-up for optimal performance
- Environmental Protection: IEC60945 compliance for EMI, salt mist, and vibration resistance
- Shock Resistance: 15g vertical, 9g horizontal
- Operating Temperature: -13°F to +131°F (-25°C to +55°C)
- Storage Temperature: -30°F to +158°F (-30°C to +70°C)
- Water Resistance: IPX6-rated for protection against heavy seas and power jets of water
- Wind Resistance: Withstands speeds up to 100 knots (115.2 MPH)
- Dust and Sand Protection: Compliant with Mil-Std-810E or IP6X standards
What's in the Box
- M300C Camera
- Camera base-seal
- Camera gasket
- RayNet-to-RJ45 adaptor cable (120 mm / 4.72 in.)
- Right-angled RayNet-to-RayNet cable (3 m / 9.8 ft.)
- Right-angled BNC-to-BNC cable (3 m / 9.8 ft.)
- Right-angled 3-pin power cable (3 m / 9.8 ft.)
- Mounting riser
- Camera fixings (nuts, dome nuts, washers, threaded studs)
Designed to deliver superior marine surveillance, the FLIR M300C provides outstanding imaging performance, even in low-light conditions. Its rugged construction, long-range zoom, and seamless integration with onboard systems make it an essential tool for any vessel requiring enhanced situational awareness.
